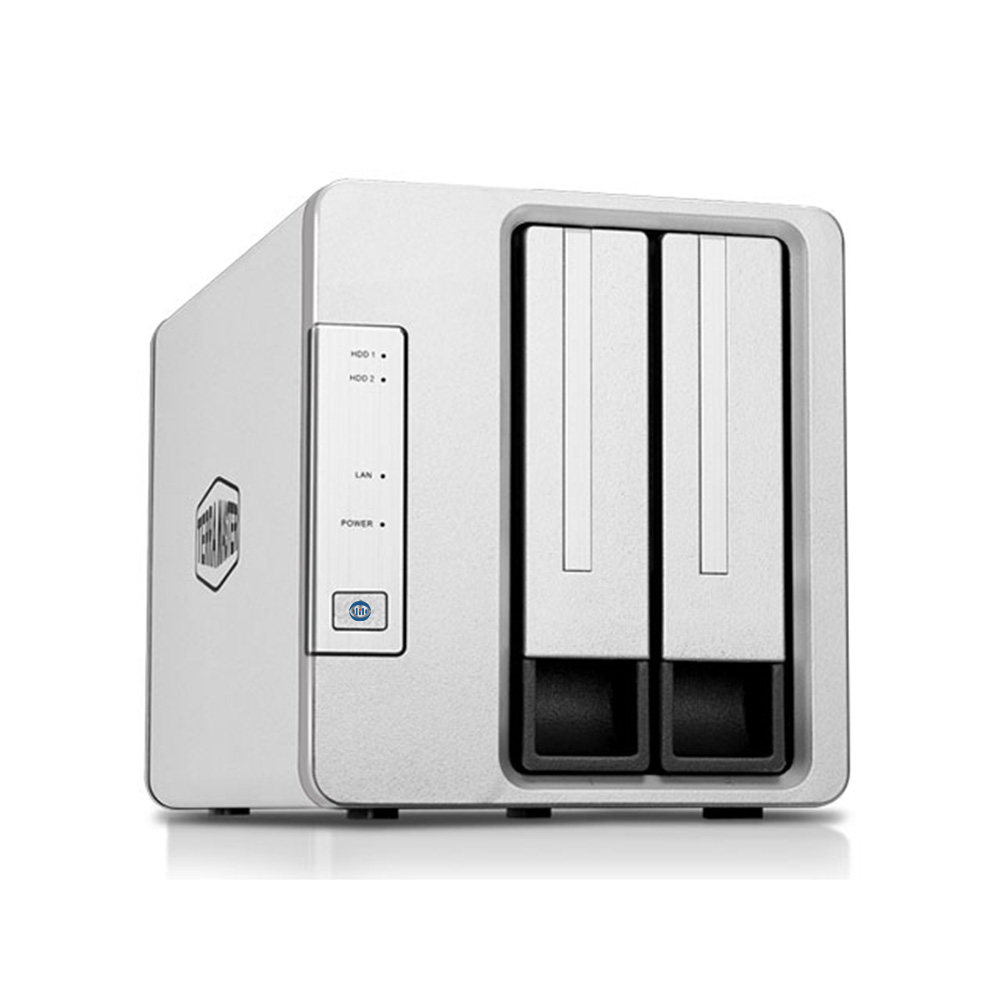

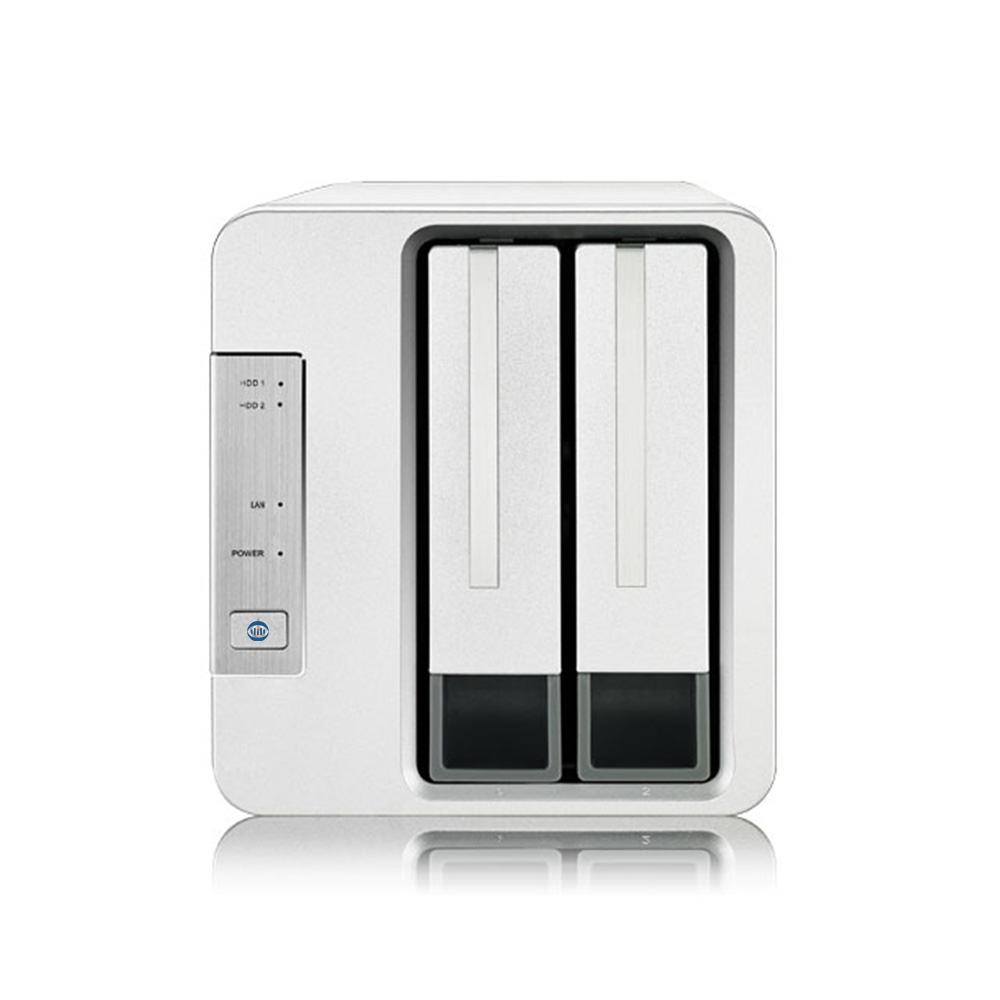

TerraMaster F2-223 all in one 2Bay NAS Ev Kullancıları ve Küçük Şirketler için 2 adet SATA Yuvalı NAS Sunucusu. 2 Core 2.0Ghz İşlemcili, 2 adet 2.5G Ethernet portlu RAID yapabilen ağa bağlanabilen bir veri depolama ünitesidir.
| Processor | |
| Processor Model | Intel® Celeron® N4505 |
| Processor Architecture | X.86 64-bit |
| Processor Frequency | Dual Core 2.0 GHz (Max burst up to 2.9 GHz) |
| CPU Single-Core Score | / |
| Hardware Encryption Engine | √ |
| Hardware Transcoding Engine | H.265 (HEVC), MPEG-4 Part 2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60 |
| Memory | |
| System Memory | 4 GB |
| Pre-installed Memory module | 4 GB (1 x 4 GB) |
| Total Memory Slot Number | 2 (DDR4 SODIMM) |
| Maximum Supported Memory | 32 GB (16 GB+16 GB) |
| Note | TerraMaster reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |

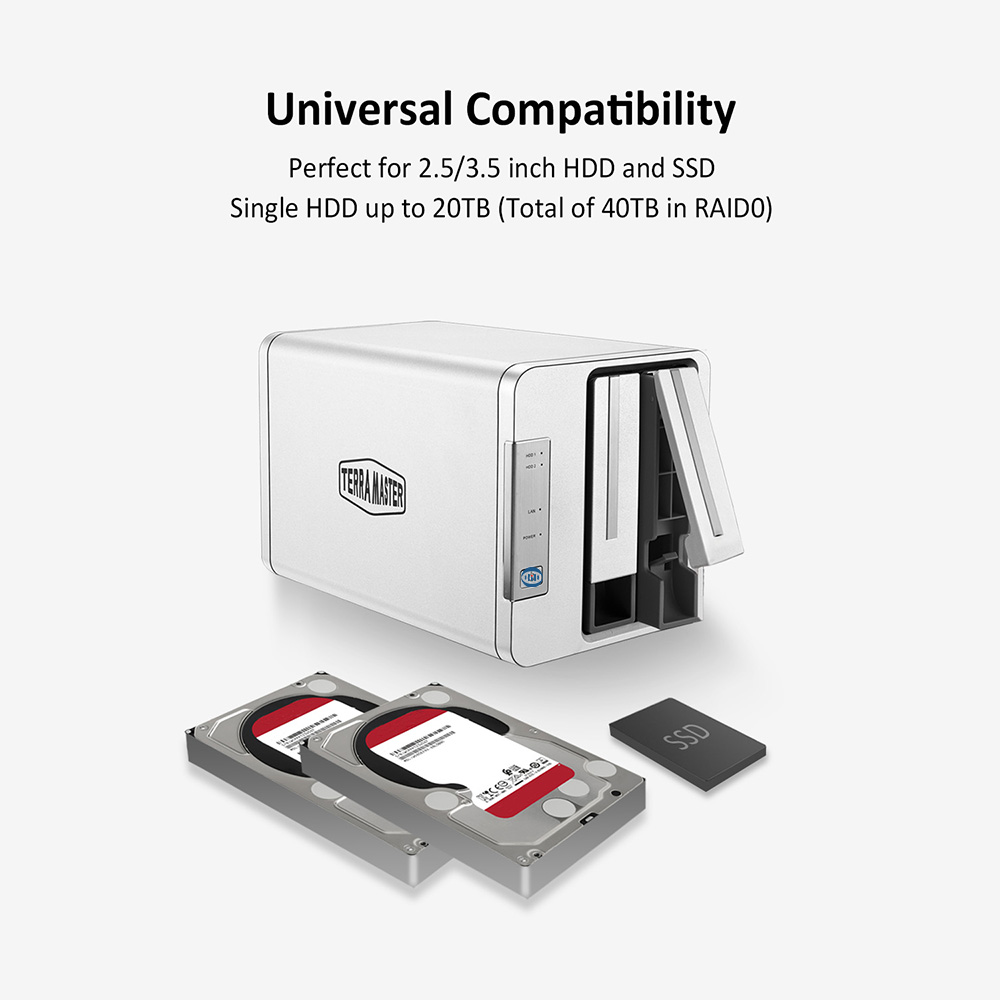

| Storage | |
| Disk Slot Number | 2 |
| Compatible Drive types | 3.5" SATA HDD |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| Maximum Internal Raw Storage Capacity | 40TB (20TB x2) (Capacity may vary by RAID types) |
| Drive Hot Swap | √ |
| Note | . Hard drive vendors will release their latest models of hard drives, and Maximum internal raw storage capacity may be adjusted accordingly. |
| . The maximum single volume size is not directly related to the maximum raw capacity. | |
| File System | |
| Internal Drive | Btrfs, EXT4 |
| External Drive | EXT3, EXT4, NTFS, FAT32, HFS+ |

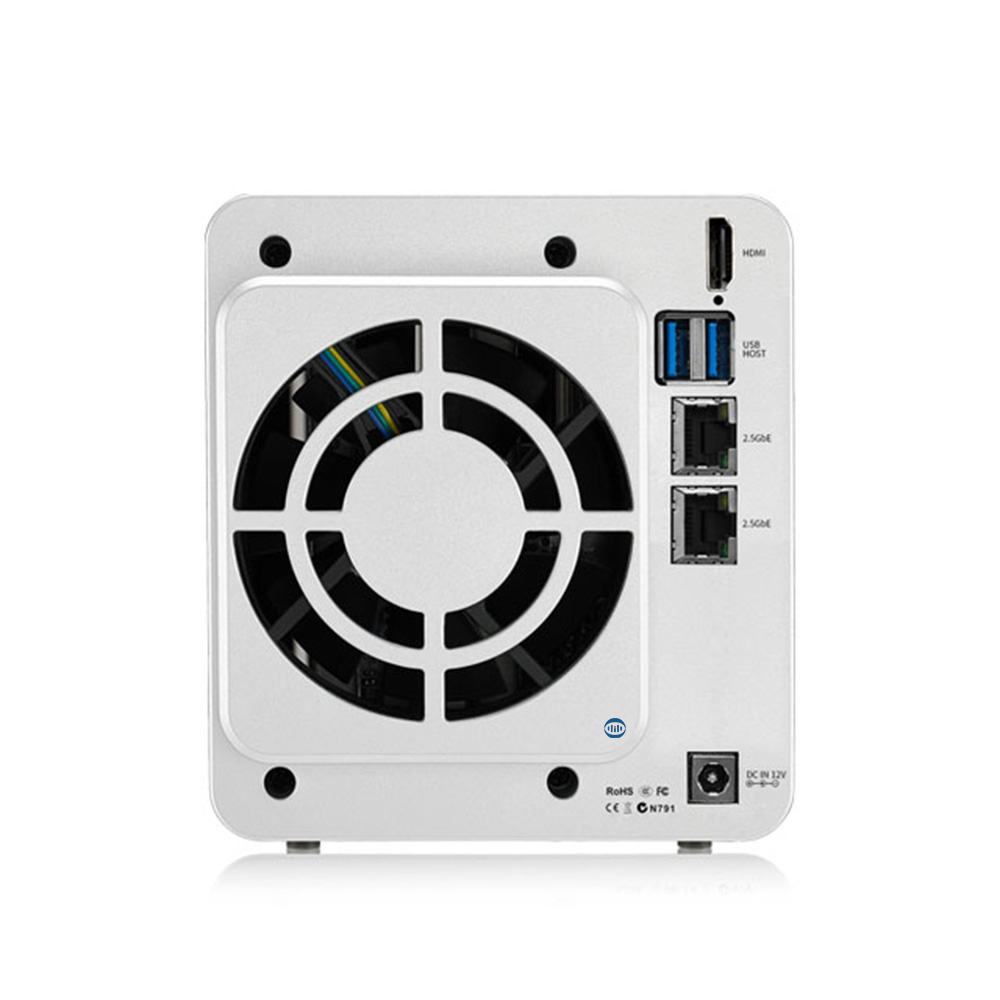

| External Ports | |
| RJ-45 1GbE Network Jack | / |

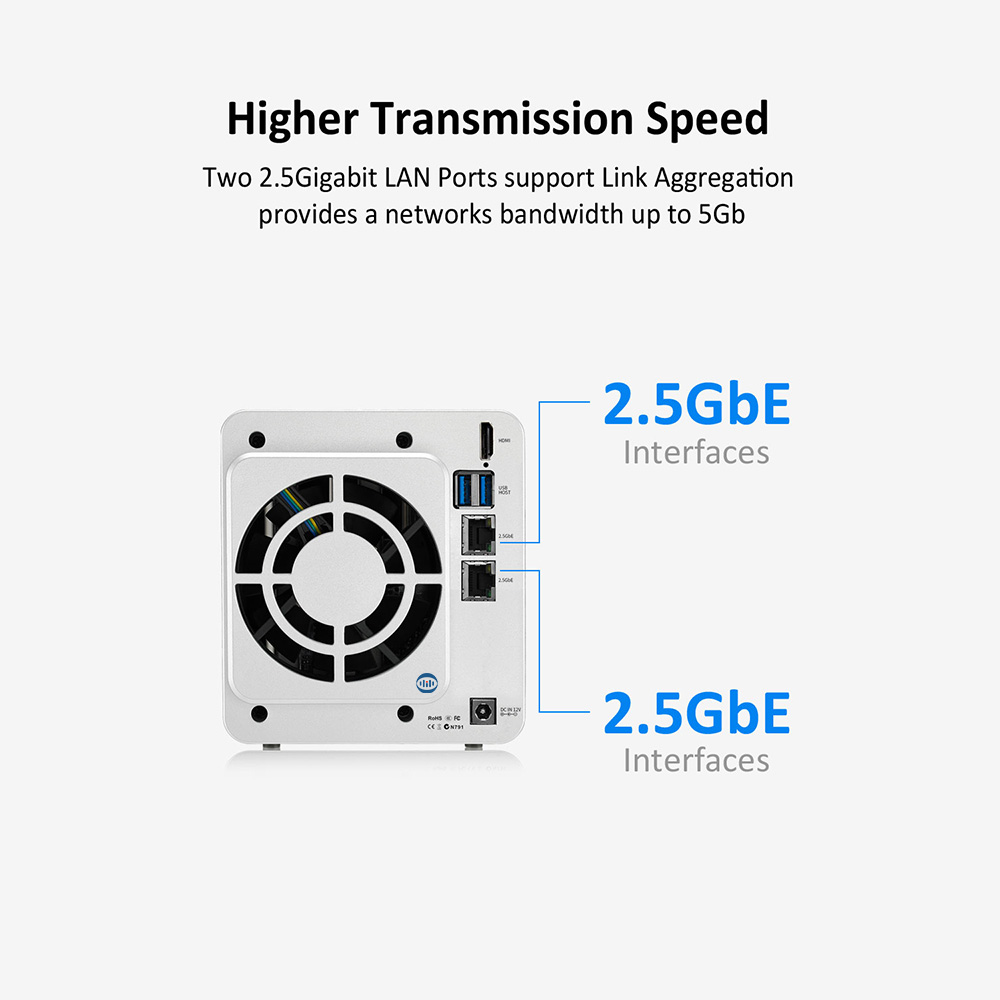

| RJ-45 2.5GbE Network Jack | 2 |
| RJ-45 10GbE Network Jack | / |
| SFP+ 10GbE Network Jack | / |
| USB3.1 Host Port | 2(10Gbps) |
| USB2.0 Host Port | / |
| COM | / |
| HDMI | 1 |
| VGA | / |
| PCIe Slots | / |

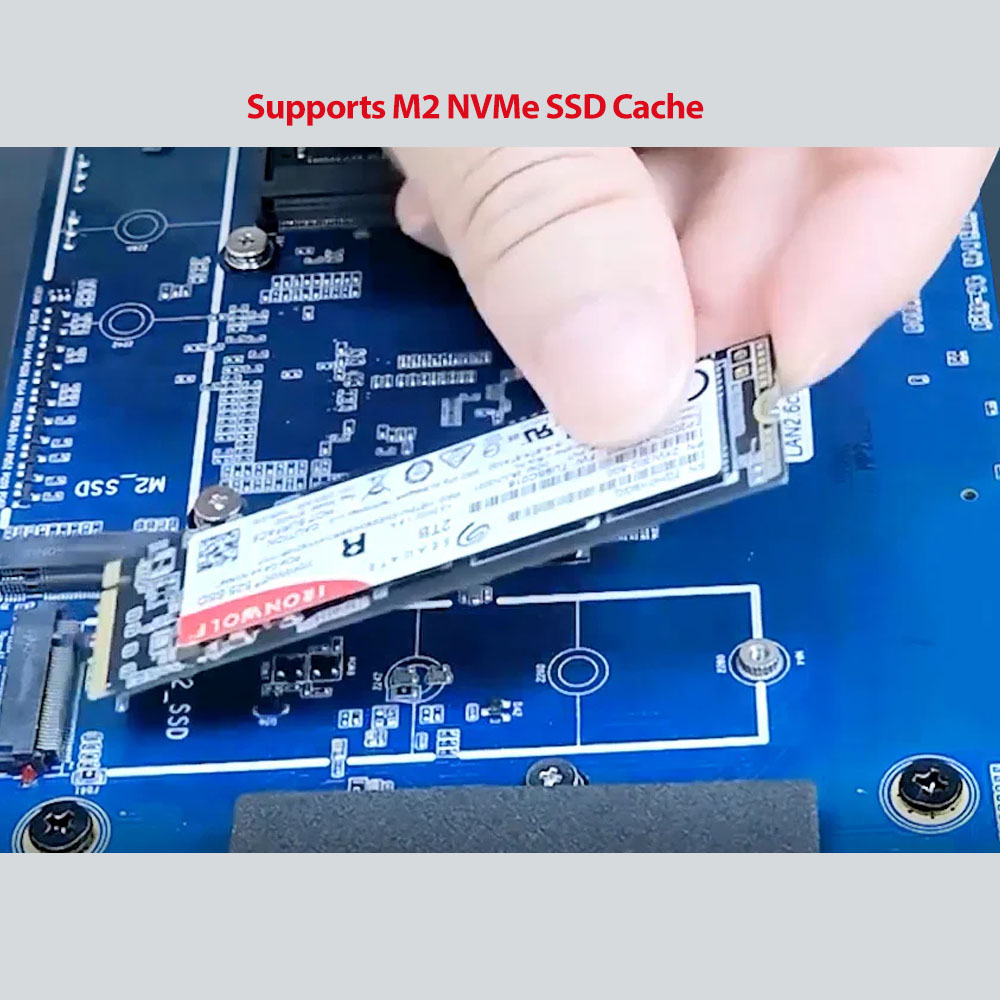

| M.2 2280 NVMe Slot | 2 |
| Appearance | |
| Size (H*W*D) | 227 x 119 x 133 mm |
| Packaging Size (H*W*D) | 258 x 220 x 170 mm |
| Weight | 2.4 kg |
| Others | |
| System Fan | 80 x 80 x 25mm 1PCS |
| Fan Mode | Smart, High speed, Middle speed, Low speed |
| Noise Level | 26.4 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state) |
| Power Supply | 40W |
| Redundancy Power Supply | / |
| AC Input Voltage | 100V - 240V AC |
| Current Frequency | 50/60 Hz, Single frequency |
| Power Consumption | 22.1W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state) |
| 11.4 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation) | |
| Limited warranty | 2 years |
| Certificate | FCC, CE, CCC, KC |
| Environment | RoHS, WEEE |
| Temperature | |
| Working Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Package Contents | |
| Host unit (x1) | |
| Power cord (x1) | |
| Power Adapter(x1) | |
| RJ-45 network cable (x1) | |
| Quick Installation Guide (x1) | |
| Limited Warranty Note(x1) | |
| Screws(a few) | |
| TOS Features | |
| OS Supported | |
| Supported Client OS | Windows OS, Mac OS, Linux OS |
| Supported Web Browsers | Google Chrome 97.0.xxxx, Mozilla Firefox 9.3,Apple Safari 12.1 ; Microsoft Edge 99.0.xx or later version. |
| Supported mobile OS | iOS12.0, Android 9.0 or later version |
| Storage Management | |
| Supported RAID Types | TRAID, Single, JBOD, RAID 0, RAID 1 |
| Maximum Internal Volume Number | 256 |
| Maximum iSCSI Target | 128 |
| Maximum iSCSI LUN | 256 |
| Volume Expansion with Larger HDDs | TRAID, RAID 1 |
| Volume Expansion by Adding a HDD | / |
| RAID Migration | √ |
| SSD Cache | √ |
| Hot Spare | / |
| SSD TRIM | / |
| Hard Drive S.M.A.R.T. | √ |
| Seagate IHM | √ |
| NVRAM write cache(BBU-protected) | / |
| Shared Folder Snapshot | √ |
| LUN Snapshot | / |
| File Services | |
| File Protocol | SMB/AFP/NFS/FTP/SFTP/WebDAV |
| Maximum Concurrent SMB/AFP/FTP/SFTP Connections | 500 |
| Windows Access Control List (ACL) Integration | √ |
| NFS Kerberos Authentication | √ |
| Account & Shared Folder | |
| Maximum local user's account number | 2048 |
| Maximum local group number | 512 |
| Maximum shared folders number | 512 |
| Maximum shared folders syncing tasks | 8 |
| Backup | |
| Rsync Backup | √ |
| Duple Backup | √ |
| Centralized Backup | √ |
| Snapshot | √ |
| USB Backup | √ |
| Cloud Sync | √ |
| Time Machine Backup | √ |
| File System Snapshot | √ |
| TFM Backup | √ |
| Networking | |
| TCP/IP | IPv4/IPv6 |
| Protocols | CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP |
| Link Aggregation | / |
| DLNA Compliance | √ |
| VPN Client | √ |
|
