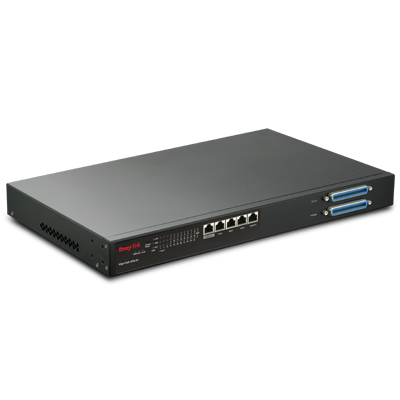

Draytek VigorTalk ATA-24 VoIP Adaptor

Username :

Password :

Become a Member | Lost Password

DrayTek

Descriptions
Features
Documents
Alternatives
Related Items
Images

VigorTalk ATA-24 is a VoIP Gateway and it provides large VoIP ports which is designed for ISP/SI. VigorTalk ATA-24 not only provides high quality call service, but also supports various VoIP protocol and supplementary services.

The SNMP-based of VigorCMS is the management software offers an easy way to remotely set up configurations, update system status, display alarm events, monitor system behaviors, perform diagnostics and download firmware and email attacking alert. For installation, status monitor and management of VigorTalk ATA-24 series of routers, it will be easily accomplished through a built-in web user interface or Telnet command line Interface.

1. VoIP (Voice over IP)

FXS(24 Ports)
MGCP / SIP / H248
Codec G.711, 729A, 723.1, G.726
VAD(Silence Suppression) & CNG
G.168-2000 Echo Canceller, Jitter Buffer
Packet Loss Concealment
RFC2833 - Out of Band DTMF
Gain / Attenuation Setting
Modem Support Rate Up V.92
Caller ID Support : Bellcore, ETSI, DTMF-based(Nor-Europe)
Line Polarity Reversal Generation
Hunting Group
Call Holding & Call Forwarding
Call Transfer, Call Waiting , 3-way Conference
Outbound Proxy
NAT Traversal (STUN) (RFC 3489)
Incoming Call Barring
T.38 Fax Relay
Single Codec Assignment
Multiple SIP Proxies Registering

2. Network Features

DHCP Client
DDNS Client
Port Mirroring
WAN Port Backup

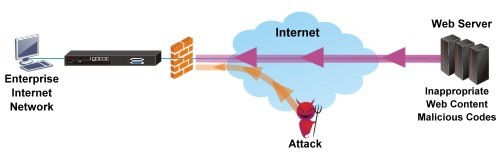

3. Firewall

Denial of service Prevention

4. VigorCMS

On-line Device Status
Firewall Configuration (DoS)
VoIP Configuration
Performance Monitoring
Topology
Log
Alarm

5. Line Test and Diagnostic Functions

Metallic Loop Test
- AC Voltage
- AC Current
- DC Voltage
- DC Current
- Resistance
- Capacitance
Line Card Test
- Normal Battery
- Loop Current
- Dial Tone Testing
- Dial Digit Testing
- Ring Voltage Testing
User Phone Test
- Pulse Digit Receiving Test
- Low Frequency Signal Level Test
- High Frequency Signal Level Test
- Low Frequency Test
- High Frequency Test
- DTMF Tone Dialing Digit Receiving Test
- Howler Tone Test
- Ringing Test

6. System Management

Web User Interface
Command Line Interface (Telent, Console)
Command Line Interface-SSH
Remote Firmware Upgrade
Syslog for Logging and Monitoring
SNMP - Basic MIBs
SNMP - VoIP
SNMP - Firewall (DoS)
SNMP - Alarm

Özellik	Açıklama
MGN	1 port 10/100/1000 Base-Tx switch
WAN Port adeti	2 Adet
PSTN Backup Yeteneği	Var(24 Adet)
Opsiyonel Port	Mirror
Console Port	1 Adet
VoIP Desteği	Var
VoIP Port Adeti	24 Adet
VoIP Arayüzü	RJ-21 (50-pin)
Desteklediği VoIP Codec Tipi	Kodek G.711, 729A, 723.1, G.726
FXS Port Sayısı	24 Adet
Ağ Özellikleri	DHCP Client, DDNS Client, Port Mirroring, WAN Port Backup
Firewall Özellikleri	DoS/DDos Önleme
VigorCMS	On-line Device Status, Firewall Configuration ( DoS ), VoIP Configuration, Performance Monitoring, Topology, Log, Alarm
Ağ Yönetimi	Web User Interface,Command Line Interface (Telent, Console),Command Line Interface-SSH,Remote Firmware Upgrade, Syslog for Logging and Monitoring,SNMP
Uzak Yönetim	Telnet, Console, SSH
Hat Testi ve Kontrol İşlevleri	Metallic Loop Test, Line Card Test, User Phone Test
Çevresel Standartlar	RoHS
Boyutlar (En/Boy/Yükseklik)	L440 * W280 * H45 (mm)
Ürünün Web Sayfası	http://www.draytektr.com
Satış Garanti Süresi (Ay)	24
