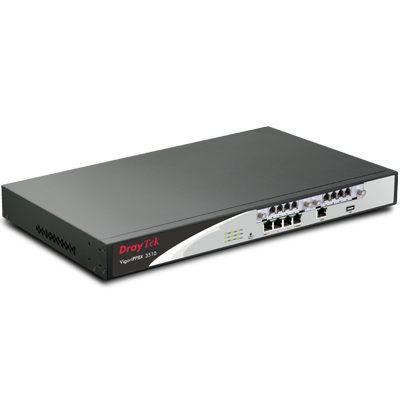

Vigor IPPBX 3510 Çok Fonksiyonlu IP Telefon Santrali İki adet WAN portu ve Güçlü Firewall özellikleri bulunan çok fonksiyonlu bir IPPBX (IP Telefon Santrali)'dir. 100 adet SIP uç kaydı yapılabilir. Üzerinde bulunan iki adet boş slota 4 adet FXS veya 4 adet FXO card takılabilir. Toplam 8 adet FXO veya FXS port takılabilir. Komple bir IP Ofis çözümüdür. Routing, VPN ve AĞ Güvenlik Özellikleri ile hem Ağ Güvenlik Cihazı Hem de IPPBX olarak kullanılmaktadır. Çok noktalı kurum ve kuruluşlar için en uygun çözümdür. Özellikle VPN desteği ile rakipsizdir.
1. IP PBX features
|
2. ISDN features
|
3. FAX/Modem support
|
4. WAN protocol
|
5. Dual WAN
|
6. VPN
|
7. Content filter
|
8. Firewall
|
9. System management
|
10. Bandwidth management
|
11. Routing functions
|
12. Internet CSM (Content Security Management) featuring
|
13. USB
|
14. Support
|
15. Declaration of Conformity
|
* Yazılım Güncellenebilir
Özellik | Açıklama |
---|---|
LAN Port Adeti | 4 Port |
LAN Port Tipi | Bakır Ethernet |
LAN Arayüzü | RJ-45 |
LAN Port Veri Hızı | 10/100Mbps |
Internet CMS | URL Keyword filtering, Block web sites by category, Prevent accessing of web sites by using their direct IP address, Blocking of web sites cookies, Blocking automatic download of java applets and ActiveX controls, Block instant messaging programs, Block P2P file sharing programs, Block HTTP downloads of file types, Time schedules and exclusions for enabling/disabling these restrictions |
Sistem Yönetimi | Web-based user interface(HTTP/HTTPS), DrayTek's quick start wizard, User Administration, CLI, DHCP client/relay/server, Dynamic DNS, Administration access control, Configuration backup/restore, Port-based VLAN, Built-in diagnostic function, NTP client/call scheduling, Firmware upgrade via TFTP/HTTP/FTP, ISDN remote maintenance, Remote maintenance, Wake on LAN, Logging via syslog, SNMP Management |
İçerik Filtreleme | URL Keyword Blocking, Web content filter, Time schedule control |
Bantgenişliği Yönetimi | Traffic shaping, Bandwith reservation, Packet size control, DiffServ Codepoint Classifying, 4 Priority levels(inbound/outbound), Bandwidth Borrowed, user-defined class-based rules |
Fax/Modem Support | Tone Detection: G.711 pass trough, T.38 for FAX |
WAN Port adeti | 2 Adet |
WAN Arayüzü | RJ-45 |
WAN Port Veri Hızı | 10/100 Mbps |
WAN Protokolleri | DHCP İstemci,Statik IP, PPPoE, PPTP, L2TP, BPA |
Dual WAN | Outbound policy based Load balance, Bandwidth on Demand |
Reset Buton | Var |
USB Arabirim Adeti | 1 Adet |
USB Cihaz Desteği | 3.5G Back-up, Voice Mail Back-up, CDR, File System |
IP PBX Özellikleri | 100 account ( extensions ), 12 SIP Account, Registration and authentication, 1 levels AA, Hunting Group (10), IVR, Calendar, Dial Plan ( Digit Map ), Session Monitor, Call Detail Records, DID, Extension Privilege Assign, PIN Code Control, Call Barring, Call Routing, Call Park , Call Pickup, MWI, User-defined Prompts, Voice Mail, Voice message to Email, Music on hold, 1 conference bridge, In/Out band call through FXO Interface |
Firmware güncelleme | Var |
VoIP Desteği | Var |
VoIP Port Adeti | 2 Adet |
VoIP Arayüzü | 4-port FXS PLUS module, 4-port FXO PLUS module, ISDN S0/TE module, ALL ISDN TE module |
3G Backup | Var |
ISDN | On-Net/ Off-Net, 100MSN (Multiple Subscriber Numbers) on each ISDN S0 port for VOIP call, ISDN Failover |
Routing Fonksiyonları | Router, Advance routing and forwarding, DNS, DHCP, NTP, Policy-Based Routing, Dynamic Routing, Static Routing |
VPN Adeti | 32 Adet |
VPN Kimlik Doğrulama | MD5, SHA-1 |
VPN Performansı | 50 Mbps |
VPN Protokol | PPTP, IPSec, L2TP, IPSec üzerinden L2TP |
VPN Şifreleme | AES, MPPE ve donanım tabanlı DES/3DES |
Firewall Özellikleri | CSM (Content Security Management) for IM/P2P Application, Çoklu NAT, DMZ host, port yönlendirme/ port açma, SPI(Stateful Packet Inspection)Dinamik Paket İnceleme, DoS/DDos Önleme |
Dil Desteği | English |
Çevresel Standartlar | RoHS |
Uyumlu Olduğu Standartlar | CE, FCC |
Ürünün Web Sayfası | http://www.draytektr.com |
Satış Garanti Süresi (Ay) | 24 |
Bu ürüne alternatif bir ürün bulunmamaktadır.
