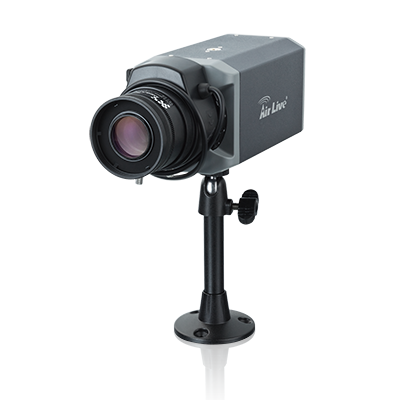

AirLive BC-5010-2812VF 5.0 Megapixel Vari-focal Lens 2.8~12mm PoE IP Camera
AirLive BC-5010 is the new generation of 5 Mega-Pixel box type IP Camera from AirLive, it improves the frame rate up to 15 FPS at 5Mega-Pixel resolution and it also provides SD and USB slot for local storage. Moreover, with optional X.USB dongle, AirLive BC-5010 can support wireless connection. AirLive BC-5010 can offer you smoother video. At 5 Mega-Pixel resolution, new processor can process 15 frames per second. In addition, it can also operate at 3 Mega-Pixel at 25 frames per second or 1080P at 30 frames per second. The enhanced sensor can work in light condition as low as 0.2 lux. Therefore, AirLive BC-5010 can offer better quality video in low light environment.
- 5 Mega-Pixel High Resolution Sensor
- 15 FPS at 5MP, 25 FPS at 3MP, 30FPS at 1080P
- Optional Dual Band Wireless-N
- WDR Support
- Clear Motion Technology
- DC Iris Support and IR-CUT Removable (ICR)
- SD/SDHC Memory Card Slot for Local Storage
- Compatible with ONVIF Standard
- 802.3af Power over Ethernet Port
- Support both C and CS Mount Lens
- Free 64-Channel Recording Software
| Model | BC-5010 |
| Camera | Camera Type |
| - Indoor Box Type | |
| Max Resolution | |
| - 2592 X MAYIS20 | |
| Image Sensor | |
| - 1/2.5” 5 Mega Pixel Color CMOS Sensor | |
| Sensor Resolution | |
| - 2592 X MAYIS20 | |
| Lens Type | |
| - C/CS Mount Lens Support | |
| - Removable Lens | |
| Night Vision | |
| - Built-In Removable IR Cut Filter | |
| Minimum Illumination | |
| - 0.2 LUX | |
| Mechanical IR-Cut Filter | |
| - Yes | |
| Auto Iris | |
| - DC-Iris Support | |
| Viewing Angle | |
| - Depend on lens | |
| Analog Video Out | |
| - Yes | |
| Video | Video Compression |
| - H.264 High/Main/Baseline Profile, MPEG4 Simple Profile and MJPEG | |
| Video Profile | |
| -38 | |
| Resolution and Frame Rate | |
| - 15 fps @ 2592 X MAYIS20 | |
| - 25 fps @ 2048 x 1536 | |
| - 30 fps @ MAYIS20 x1080 | |
| - 30 fps @ 1280 x 1024 | |
| - 30 fps @ 1280 x960 | |
| - 30 fps @ 1280 x 720 | |
| - 30 fps @ 720 x 480 | |
| - 30 fps @ 640 x 480 | |
| - 30 fps @ 320 x 240 | |
| - 30 fps @ 176 x 144 | |
| Streaming | |
| - Multi-profile streaming | |
| - Streaming over UDP, TCP, or HTTP | |
| - M-JPEG streaming over HTTP (for non IE browser) | |
| - 3GPP mobile view | |
| - Configurable frame rate and bandwidth | |
| - Support both CBR and VBR | |
| ROI | |
| - Yes | |
| Image Processing | |
| - AE, AWB | |
| - Noise reduction | |
| - Saturation, brightness, sharpness, contrast, Hue | |
| - Mirror/Flip | |
| - Text, time and date OSD | |
| - AirLive Clear Motion Technology for Moving Objects | |
| Digital Zoom | |
| - 10X | |
| Audio | Audio Encoder |
| - G711 u-law | |
| - AMR | |
| Audio Streaming | |
| - Two-way | |
| Audio Input/Output | |
| - speaker port and microphone port | |
| Network | Ethernet |
| - One RJ45 Port; IEEE 802.3u Compliant 10/100 Mbps Fast Ethernet with Auto-MDIX | |
| PoE | |
| - IEEE802.3af | |
| Wireless | |
| - Optional | |
| Supported Protocols | |
| - TCP/IP,IPV6, UDP, ICMP ,DHCP ,NTP ,DNS ,DDNS ,SMTP ,FTP ,HTTP ,HTTPs ,Samba, PPPoE ,UPnP, Bonjour, RTP,RTSP,RTCP, DLNA, ONVIF, ISCSI | |
| Security | |
| - Password protection | |
| - IP filter | |
| - HTTPS | |
| Users | |
| - Up to 20 simultaneous users | |
| LED and Button | Power LED |
| - Amber Color | |
| Link/Act. LED | |
| - Green Color/Flash Green | |
| Reset Button | |
| - Reboot and Factory Default (Push and Hold Over 5 Sec) | |
| General | Network Processor |
| - DSP Base | |
| System ROM | |
| - 128MByte NAND Flash | |
| System RAM | |
| - 128Mbyte DDR2 SDRAM | |
| Power Supply | |
| - DC12V | |
| Power Consumption | |
| - 4 Watts Max. | |
| Connector | |
| - RJ-45 10BaseT/100BaseTX | |
| - 12V DC power jack | |
| - Microphone/Speaker jack | |
| - DIDO | |
| - Reset button | |
| Environment | |
| - Operation: Temp: -5℃ ~ 55℃ Humidity: 20% ~ 85% non-condensing | |
| - Storage: Temp: -15℃ ~ 60℃ Humidity: 0% ~ 90% non-condensing | |
| SD card slot | |
| - SD/SDHC | |
| Size | |
| - 64x64x130 mm | |
| Weight | |
| - 0.365 kg | |
| System Integration | Software |
| - AirLive Campro mobile | |
| - CamPro Express 64,CamPro Professional | |
| - Search & Installation- IP Wizard II | |
| Event Triggers | |
| - Motion detection | |
| - External input via DI interface | |
| Motion Detection | |
| -3 | |
| Event handler | |
| - FTP or NAS file upload | |
| - E-mail alert | |
| - HTTP, and TCP notification | |
| - DO (digital output) alarm | |
| - SD/USB file upload | |
| UPNP | |
| - Yes | |
| Application Programming Interface | |
| - ONVIF 2.0 | |
| - Open API for software integration | |
| - SDK | |
| Video Buffer | |
| - Pre- and post- alarm buffering | |
| Alarm Events | |
| - File upload via FTP or email | |
| - Notification via email, HTTP, and TCP | |
| - External output activation | |
| - Save to SD card/USB | |
| Continuous recording | |
| - Yes | |
| Viewing System | OS |
| - Windows® XP, Vista, 7 | |
| Browser | |
| - IE 7.0 or later, Firefox 2.0 or later, Safari,Google Chrome | |
| Cell Phone | |
| - With 3GPP player | |
| Video Player | |
| - VLC, Quick Time, Real Player, Core Player |
