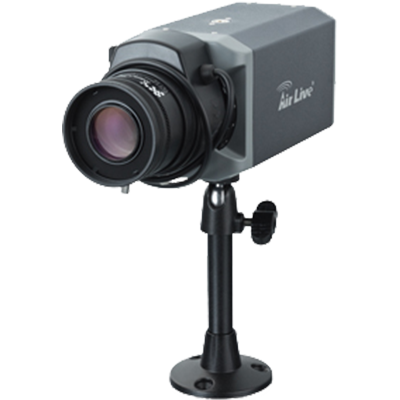

AirLive BC-5010-2812VF-IVS 5.0 Megapixel Vari-focal Lens 2.8~12mm PoE IP Camera
AirLive BC-5010-IVS can offer you smoother video. At 5 MegaPixel resolution,
new processor can process 15 frames per second. In addition, it can also operate at
3 Mega-Pixel at 25 frames per second or 1080P at 30 frames per second. The enhanced sensor
can work in light condition as low as 0.2 lux. Therefore, AirLive BC-5010-IVS can offer better quality
video in low light environment.
AirLive BC-5010-IVS can offer you smoother video. At 5 MegaPixel resolution, new processor can process 15 frames per second. In addition, it can also operate at 3 Mega-Pixel at 25 frames per second or 1080P at 30 frames per second. The enhanced sensor can work in light condition as low as 0.2 lux. Therefore, AirLive BC-5010-IVS can offer better quality video in low light environment.
AirLive BC-5010-IVS can offer you smoother video. At 5 MegaPixel resolution, new processor can process 15 frames per second. In addition, it can also operate at 3 Mega-Pixel at 25 frames per second or 1080P at 30 frames per second. The enhanced sensor can work in light condition as low as 0.2 lux. Therefore, AirLive BC-5010-IVS can offer better quality video in low light environment.
- 5 MegaPixel High Resolution Sensor
- 15 FPS at 5MP, 25 FPS at 3MP, 30FPS at 1080P
- Optional Wireless-N Function
- WDR Support
- Clear Motion Technology
- DC Iris Support and IR-CUT Removable (ICR)
- SD/SDHC Memory Card Slot for Local Storage
- Compatible with ONVIF Standard
- 802.3af/at Power over Ethernet Port
- Support both C and CS Mount Lens
- Built-in Intelligent Video Analytics Including Face Detection, iMotion Detection, Trip Zone, Object Counting, Face Recognition, e-Fence
| Model | BC-5010-IVS |
| Camera Type | Indoor Box Type |
| Max Resolution | 2592 X MAYIS20 |
| Image Sensor | 1/2.5" 5 Mega Pixel Color CMOS Sensor |
| Lens Type | C/CS Mount Lens Support |
| Removable Lens | |
| Night Vision | Built-In Removable IR Cut Filter |
| Max IR Distance | None |
| Minimum Illumination | 0.2 LUX |
| Mechanical IR-Cut Filter | Yes |
| Auto Iris | DC-Iris Support |
| Viewing Angle | Depend on lens |
| Analog Video Out | Yes |
| Video | |
| Video Compression | H.264 High/Main/Baseline Profile, MPEG4 Simple Profile and MJPEG |
| Video Profile | 38 |
| Resolution and Frame Rate | 15 fps @ 2592 X MAYIS20 |
| 25 fps @ 2048 x 1536 | |
| 30 fps @ MAYIS20 x1080 | |
| 30 fps @ 1280 x 1024 | |
| 30 fps @ 1280 x960 | |
| 30 fps @ 1280 x 720 | |
| 30 fps @ 720 x 480 | |
| 30 fps @ 640 x 480 | |
| 30 fps @ 320 x 240 | |
| 30 fps @ 176 x 144 | |
| Streaming | Multi-profile streaming |
| Streaming over UDP, TCP, or HTTP | |
| M-JPEG streaming over HTTP (for non IE browser) | |
| 3GPP mobile view | |
| Configurable frame rate and bandwidth | |
| Support both CBR and VBR | |
| ROI | Yes |
| Image Processing | AE, AWB |
| Noise reduction | |
| Saturation, brightness, sharpness, contrast, Hue | |
| AirLive Clear Motion Technology for Moving Objects | |
| Mirror/Flip | |
| Text, time and date OSD | |
| Digital Zoom | 10X |
| Audio | |
| Audio Encoder | G711 u-law |
| AMR | |
| Audio Streaming | Two-way |
| Audio Input/ Output | speaker port and microphone port |
| Network | |
| Ethernet | One RJ45 Port; IEEE 802.3u Compliant 10/100 Mbps Fast Ethernet with Auto-MDIX |
| PoE | IEEE802.3af/at |
| Wireless | Optional |
| Supported Protocols | TCP/IP,IPV6, UDP, ICMP ,DHCP ,NTP ,DNS ,DDNS ,SMTP ,FTP ,HTTP ,HTTPs ,Samba, PPPoE , UPnP, Bonjour, RTP,RTSP,RTCP, DLNA, ONVIF 2.2, ISCSI |
| Security | Password protection |
| - | IP filter |
| HTTPS | |
| Users | Up to 20 simultaneous users |
| LED and Button | |
| Power LED | Yellow Color |
| Link/Act. LED | Orange Color/Flash Orange |
| Reset Button | Reboot and Factory Default (Push and Hold Over 5 Sec) |
| General | |
| Network Processor | DSP Base |
| System ROM | 128MByte NAND Flash |
| System RAM | 128Mbyte DDR SDRAM |
| Power Supply | DC12V |
| Power Consumption | 4 Watts Max. |
| Connector | RJ-45 10BaseT/100BaseTX |
| 12V DC power jack | |
| Microphone/Speaker jack | |
| DIDO | |
| Reset button | |
| Environment | Operation: Temp: -5? ~ 55? Humidity: 20% ~ 85% non-condensing |
| Storage: Temp: -15? ~ 60? Humidity: 0% ~ 90% non-condensing | |
| SD card slot | SD/SDHC |
| Dimension | 135 * 65 * 65 mm |
| System Integration | |
| Software | AirLive CamPro Mobile |
| CamPro Express 64, CamPro Professional | |
| Search & Installation- IP Wizard II | |
| Event Triggers | Motion detection, External input via DI interface, Tamper detection, Face detection, iMotion detection, Trip zone, Object counting, Face recognition, e-Fence |
| Motion Detection | 3 |
| Event handler | FTP or NAS file upload |
| E-mail alert | |
| HTTP, and TCP notification | |
| DO (digital output) alarm | |
| SD/USB file upload | |
| UPNP | Yes |
| Application Programming Interface | ONVIF 2.2 |
| Open API for software integration | |
| SDK | |
| Video Buffer | Pre- and post- alarm buffering |
| Alarm Triggers | Motion detection, External input via DI interface, Tamper detection, Face detection, iMotion detection, Trip zone, Object counting, Face recognition, e-Fence |
| Continuous recording | Yes |
| Intelligent Video Analytics(IVS) | |
| Build in IVS function | Face detection |
| iMotion detection | |
| Trip zone | |
| Object counting | |
| Face recognition | |
| e-Fence | |
| Viewing System | |
| OS | WindowsR XP, Vista, 7, 8 |
| Browser | IE 7.0 or later, Firefox 2.0 or above, Safari, Chrome |
| Cell Phone | With 3GPP player, CamPro Mobile for iOS/Android device |
| Video Player | VLC, Quick Time, Real Player, Core Player |
