Prodoct Informations

DC867 8KM is a high power industrial 5Ghz outdoor wireless data transmission device with PTP(Point to point) or PTMP(Point to multipoint) access feature. It has 867 Mbps high speed with combined 5Ghz, compliant with 802.11ac Wi-Fi standard. It has Gigabit WAN and LAN port. (NO Adapter and POE injector in the box)

Product Overview

DC867 is an high power industrial 5G outdoor CPE with 8Km PTP/PTMP range. Comply with the next generation 802.11ac Wi-Fi standard, combined 900Mbps high speed in 5G, equipped Gigabit WAN port. It with LED display to show and configure CPE’s operation mode, Channel, IP address and Signal Strength, simple to do the Point to Point connection by reset button, no need to access into GUI.

Main Features

• The use of specialized TVS lightning protection devices enhances the product's ability to withstand harsh environments.
• Built in 18dBi dual polarization directional antenna, up to 8km for PTP/ PTmP distance.
• Support non-standard frequency points: 4.9-6.1GHz.
• Support 5, 10MHz narrowband operating bandwidth
• Support ATPC, IPv6, TDMA

FEATURES

900Mbps Data Rate & Gigabit WAN/LAN Ports

DC867 features 802.11ac Wi-Fi and 2*2 MIMO technology, 900Mbps wireless speed. Equipped with Gigabit Ethernet port ensures high speed internet access and more end users access.

5GHz frequency, more channels, lower latency, higher stability

DC867 with full frequency of 5020~6100MHz, more than 200 channels available, it avoid the frequency interference problem, full meet with data transmission in fast speed, low delay, high stability requirement in wireless security or data transmission.

8KM PTP/PTMP Distance

Designed in two line Power Amplifier on PCB board, the power can be 300mW high power, high gain panel antenna, greatly increase the Wi-Fi range to 8KM distance, then supply the stable Wi-Fi signal for users.

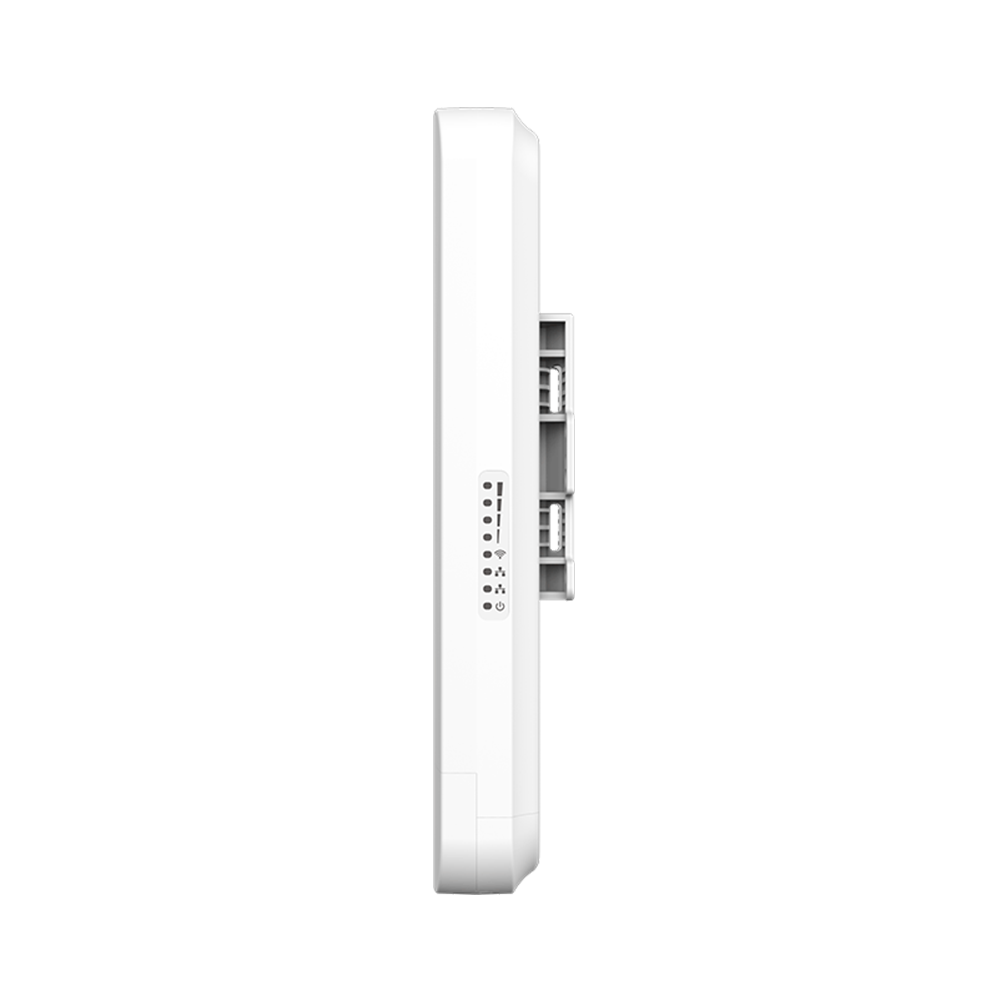

LED Display

DC867 with LED display to show AP/Client operation mode, Channels, IP address and RF Power; What’s more, it is easy to setup DC867 operation mode, IP address, Channels by set switch on product, no need to access into GUI, avoid the complex setup program, simple to check the working status.

Power over Ethernet

DC867 has integrated IEEE802.3af 48V PoE, (passive Power over Ethernet is optional), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
