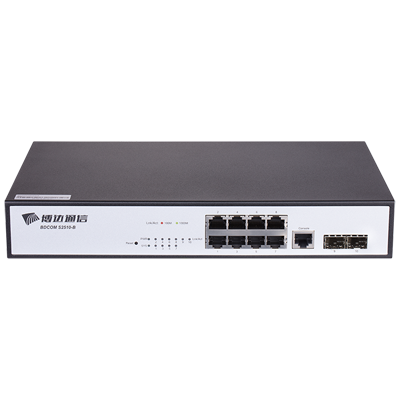

BDCOM S2510-B 8Port Gigabit Eth 2 Port SFP Managed L2 Switch (8GE+2SFP)
BDCOM S2510-B Serisi, operatörlerin IP MAN (metropol alan ağı) ve kurumsal ağları için tasarlanmış yeni nesil bir akıllı switch serisidir. BDCOM S2510-B, Flash Memory: 16MBytes, DDR3: 128 Mbytes, Anahtarlama kapasitesi 56 Gbps, Gönderme oranı 27Mpps, 1 adet Konsol portu, 8 adet 10/100M/1000M portu, 2 Adet Gigabit SFP Port, AC220V güç kaynağı; soğutma fanı, 1U, 19 inç rafa monteli kurulum.
BDCOM S2510-B Serisi, operatörlerin IP MAN (metropol alan ağı) ve kurumsal ağları için tasarlanmış yeni nesil bir akıllı switch serisidir. BDCOM S2510-B, Flash Memory: 16MBytes, DDR3: 128 Mbytes, Anahtarlama kapasitesi 56 Gbps, Gönderme oranı 27Mpps, 1 adet Konsol portu, 8 adet 10/100M/1000M portu, 2 Adet Gigabit SFP Port, AC220V güç kaynağı; soğutma fanı, 1U, 19 inç rafa monteli kurulum.
Ethernet switch with 8 gigabit Base-T ports and 2 gigabit SFP ports (1 console port, 8 10/100M/1000M Base-T ports, 4 gigabit SFP ports; a standard AC220V power supply; the cooling fan, 1U, 19-inch rack-mounted installation)
| Item | S2510-B | ||
| Switching capacity | 56Gbps | ||
| Forwarding rate | 15Mpps | ||
| Ports | 8 10/100M/1000M Base-T ports + 2 gigabit SFP ports | ||
| Dimensions mm (W×D×H) | 280×180×44 | ||
| Consumption | 12W | ||
| Power supply | AC: 100V-240V, 50Hz±10% | ||
| Environment | Operating temperature/humidity: 0℃-50℃, 10%-90% non-condensing | ||
| Storage temperature/ humidity: -20℃-70℃; 5%-95% non-condensing | |||
| MAC | Static configuration and dynamically learning of MAC address | ||
| Check and delete MAC address | |||
| Configuring of MAC address aging time | |||
| Limit on MAC address learning number | |||
| MAC address filtering function | |||
| VLAN | 4K VLAN entries | ||
| GVRP | |||
| 1:1 and N:1 VLAN Mapping | |||
| QinQ | |||
| Private VLAN | |||
| STP | 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP) | ||
| BPDU protection, root protection and ring protection | |||
| Multicast | IGMP v1/v2/v3 | ||
| IGMP Snooping | |||
| IGMP Fast Leave | |||
| Multicast group policy and multicast number limit | |||
| Multicast traffic cross VLAN duplication | |||
| IPv4 | Static routing | ||
| IPv6 | ICMPv6, DHCPv6 and IPv6 Telnet | ||
| IPv6 Neighbor Discovery | |||
| MLD v1/v2 | |||
| MLD Snooping | |||
| QoS | Traffic classification of each field of L2/L3/L4 protocol headers | ||
| CAR traffic control | |||
| 802.1P/DSCP priority remark | |||
| Multiple queuing algorithms such as SP, WRR or SP+WRR | |||
| Tail-Drop, WRED | |||
| Traffic supervision and traffic shaping | |||
| Security features | Identification and filtering of L2/L3/L4 based ACL | ||
| Defend against DDoS attack, SYN Flood attack of TCP or UDP Flood attack | |||
| Suppression of broadcast, multicast and unknown unicast packet | |||
| Port isolation | |||
| Port security, IP+MAC+port binding | |||
| DHCP Snooping, DHCP Option 82 | |||
| IEEE 802.1x authentication | |||
| Radius and BDTacacs+ authentication | |||
| Command line authority control based on user levels | |||
| Reliability | Static/LACP link aggregation | ||
| EAPS and ERPS | |||
| ISSU | |||
| Management and Maintenance | Console, Telnet, SSH 2.0 | ||
| WEB based management style | |||
| SNMP v1/v2/v3 | |||
| Upload and download of TFTP files | |||
| RMON | |||
