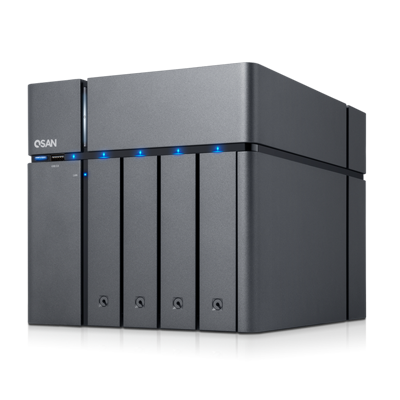

QSAN XCubeNAS XN3004T 4+1 Bay Tower NAS


QSAN XN3004T, basit, güçlü ve sitil sahibi 4 yuvalı masa üstü bir NAS cihazıdır. (4yuva + 1ek saklı Yuva) Intel Celeron 1.1 GHz Quad-Core CPU, 4GB DDR3L RAM (Max 8GB).

XCubeNAS XN3004T, basit, güçlü ve sitil sahibi 4 yuvalı masa üstü bir NAS cihazıdır. N+1 (3.5’’ LFF xN + 2.5’’ SFF x1) dizayn ile hazırlanmış çok özel bir donanıma sahiptir. Onboard SATA SSD slotu ile çok yüksek performans sağlar. Intel® Celeron® 1.1GHz Quad-Core Processor, 4GB DDR3L SO-DIMM, Max 8GB RAM, USB 3.0 x3 (Front x1, Rear x2), USB 2.0 x2 (Rear) Flash 8GB USB DOM, 1 x HDMI, Drive Bays 2 LFF with lock, 1 SFF. No. of Internal Hard Disks :2 (LFF disk) + 1 (SFF disk)

Donanım XN3002T XN3004T
CPU Intel® Celeron® 1.1GHz Quad-Core Processor
USB USB 3.0 x3 (Front x1, Rear x2)
USB 2.0 x2 (Rear)
Drive Bays 2 LFF with lock 4 LFF with lock
No. of Internal Hard Disks 3:2 (LFF disk) + 1 (SFF disk) 5:4 (LFF disk) + 1 (SFF disk)
Max. Raw Capacity 30 TB:14TB x2 + 2TB x1 58 TB:14TB x4 + 2TB x1
​Note:LFF=14TB, SFF=2TB ​Note:LFF=14TB, SFF=2TB
Hard Drive Interface SATA 6Gb/s (backward compatible with SATA 3Gb/s)
Ethernet Ports 1 GbE LAN (RJ45) x2
Dimension (H x W x D) 160 x 1MAYIS x 216 mm 170 x MAYIS0 x 235 mm
Agency Certifications FCC Class B • CE Class B • BSMI Class B • VCCI Class B • RCM Class B  • KCC Class B
Unified Storage NAS application server with Gigabit NIC
iSCSI storage with Gigabit NIC
File Server File sharing across Windows/Mac/Linux/UNIX and centralized management
FTP Server Supports data access from remote location via FTP
FTP with SSL/ TLS (explicit) mode
FXP supported
FTP bandwidth control and connection control
Passive FTP port range control
Backup Server 3rd party backup software support: Acronis True Image, CA Brightstor ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie Silverkeeper
Snapshot replica
Time machine backup server
External storage device backup
Block-level real time remote replication supports instant, schedule backup management
XMirror (Multi-side data synchronization)
 Cloud backup: Amazon S3
Cloud synchronization: Google Drive, Windows OneDrive, Dropbox
Web Server Built-in phpMyAdmin
SQL Server MariaDB database server
VPN Server Supports OpenVPN, PPTP and IPsec+L2TP
Operating System Linux-embedded system
NAS Discovery XFinder
​Web Finder
Connection IPv4, IPv6 and DDNS domain name registration (QSAN Cloud)
Auto port forwarding
Networking ​VLAN
Link aggregation (support 11 bonding modes)
Multi-IP settings
Gigabit Jumbo Frame
File System ZFS file system
EXT2 (Virtual Volume)
EXT3 (Virtual Volume)
EXT4 (Virtual Volume)
FAT (Virtual Volume)
NTFS (Virtual Volume)​
HFS + (Virtual Volume)
Supported Operating Systems ​Windows
Mac OS X
Linux (2.6 or later) and UNIX
Disk Managemwnt ​Single disk, RAID 0 (Disk Striping), RAID 1 (Disk Mirroring), RAID 5, RAID 5 + hot spare, RAID 6, RAID 10,  RAID 50, RAID 60
Multiple volume and storage pool
User defined storage (Generic, Media, Database)
Online pool/volume Capacity Expansion
Pool/ volume usage threshold notification
Self-encrypting drives (SED) pool level protection
Pool write cache
Scrub pool
Convert cloned volume
Virtual volume (mount disk from remote iSCSI target)
Set free and replace disk
Built-in iSCSI target and initiator service
External device management
Global and dedicate hot spare disk
Zero time RAID creation and quick rebuilding
Auto Tiering
SSD read/write cache
Snapshot (folder and LUN)
Compression (volume and LUN)
Thin Provision for LUN
SSD Trim
*Support up to 256 Volumes, 64 iSCSI targets, 255 iSCSI LUNs
User Managemwnt ​Local / domain user and group management  (Support up to 2048 local user accounts, 1024 local groups)
Local / domain application privilege
User quota for local and domain user
Home folder
Windows AD and LDAP
Trust domain and support up to 200,000 domain users
Folder Management ​Advance file ACL
Windows ACL
Hide shared folder on Windows network
Unicode support
WORM (Write Once Read Many protection)
Folder usage threshold notification
Folder quota
*Support up to 1024 shared folders
System Tool ​​NTP time settings
Notification: E-mail alert (SMTP authentication), syslog, and SNMP
System firmware upgrade
Back up, restore, reset system settings
Import system configuration
Smart fan
IP access control
Policy-based unauthorized IP blocking
Secure remote login by SSH connection
Connection list management
USB, SNMP UPS support
Network recycle bin
Import SSL certificate
Real-time Resource (CPU, Memory, Storage, Disk, Process) / Hardware/ service/ network resource monitor
Power Management ​HDD hibernation
Power schedule
Wake on LAN
UPS settings
Recover from power outage
System Optimization Setting ​​Service binding
Log Systm log
System connection and data transfer log​
Multilingual Support Chinese (Traditional & Simplified), English, French, German, Italian, Japanese, Korean, Russian, Polish​
File Manager ​File preview
Embedded file player
Mount Cloud (Google Drive, OneDrive, Dropbox)
ISO image mount
CIFS, FTP, SFTP and WebDAV client
Share link
Team folder sharing
Publish to facebook, twitter, weibo
Media library
Media streaming
Online doc preview and editing
Transcoding (online/offline), compression
Service Data service: CIFS, AFP, NFS, FTP, WebDAV
Backup service: Rsync
Discover service: Bonjour
Virtualization ​Windows: Hyper-V, storage space
VMware: VMware 6.5 ready, VAAI, SRM
Citrix: Citrix 7.0 ready
Multi Browser Support Internet Explorer
Google Chrome
Utility XFinder
XRplicator (Windows backup utility)
Warranty System : 2 years
Çevresel Değerler
Temperature Operating temperature : 0 to 40°C
Shipping temperature : -10 to 50°C
Relative Humidity Operating relative humidity : 20% to 80% non-condensing
Non-operating relative humidity : 10% to 90%
