Xentino VX224IDC VDSL2 Industrial Gigabit Ethernet Extender (DC)

Xentino

Xentino VX224IDC VDSL2 Endüstriyel Gigabit Ethernet Genişletici (DC), 300 Mbps'ye kadar toplu bant genişliğini destekleyen, Lite Endüstriyel Sınıf Ultra Hızlı Gigabit Ethernet Bakır Genişletici'dir. (İndirme: 150 Mbps / Gönderme: 150 Mbps) Mevcut bakır altyapısı üzerinde fiber optik benzeri hızlar sunarak, fiberin dağıtımının ekonomik olmadığı yerlerde 1 çift bakır kablo ile iyi bir bağlantı alternatifi sağlar. (Cihazla birlikte Güç Kaynağı Yoktur)

Xentino VX224IDC VDSL2 Endüstriyel Gigabit Ethernet Genişletici (DC), 300 Mbps'ye kadar toplu bant genişliğini destekleyen, Lite Endüstriyel Sınıf Ultra Hızlı Gigabit Ethernet Bakır Genişletici'dir. (İndirme: 150 Mbps / Gönderme: 150 Mbps) Mevcut bakır altyapısı üzerinde fiber optik benzeri hızlar sunarak, fiberin dağıtımının ekonomik olmadığı yerlerde 1 çift bakır kablo ile iyi bir bağlantı alternatifi sağlar. (Cihazla birlikte Güç Kaynağı Yoktur)

KEY FEATURES

  • Selectable 8 different profile settings via Dip Switch (G.INP/Interleaved, Target SNR 6/8/12/24 dB, Symmetric/Asymmetric Modes)
  • Compatible with Xentino and third-party VDSL2 IP DSLAM when operates in CPE(RT) mode
  • Metal enclosure for robust installation in Utility applications
  • High speed Ethernet extension over UTP, CAT 5e/6/7 or Coaxial cables
  • Cost effective bridge function to connect two Ethernet LAN
  • Easy installation via simple plug-and-play in harsh environment
  • Support ITU-T G.993.5 G.vectoring and G.INP
  • Support wide operating temperature range
  • IEEE 802.1Q VLAN tag transparent



PRODUCT OVERVIEW

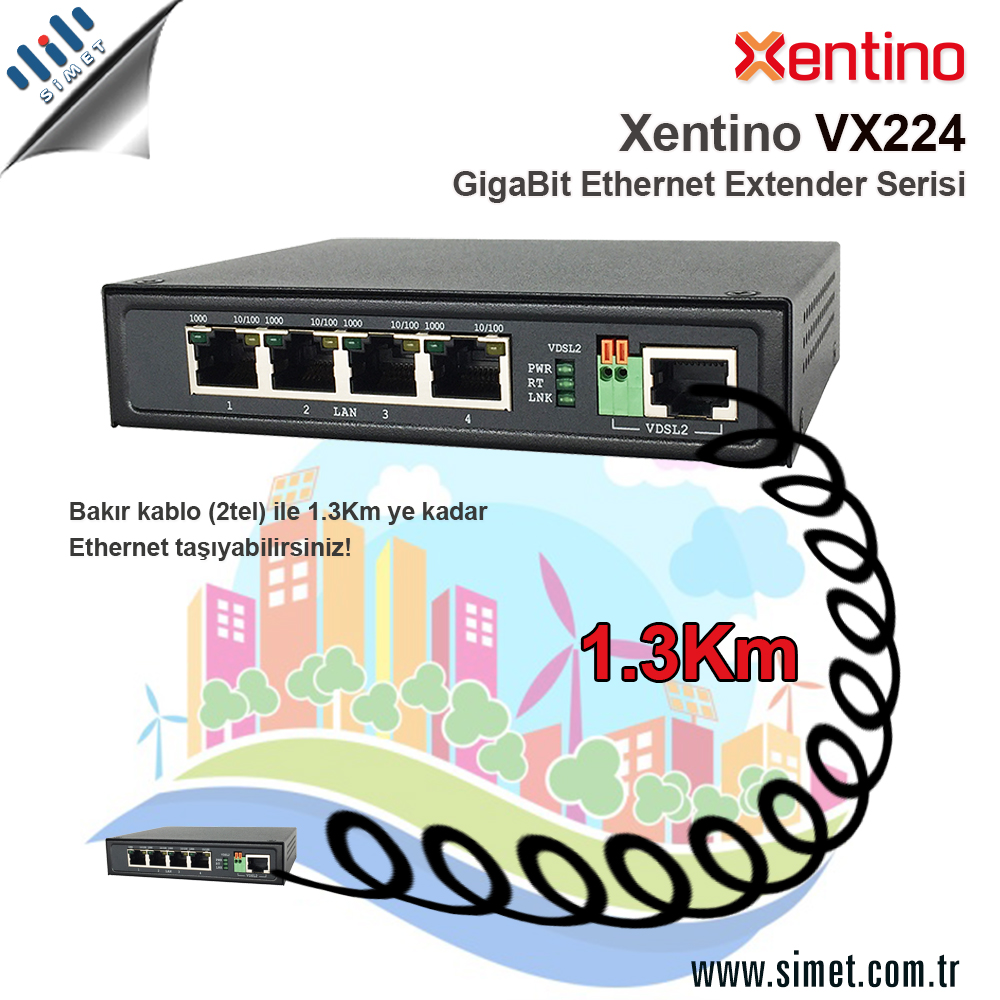

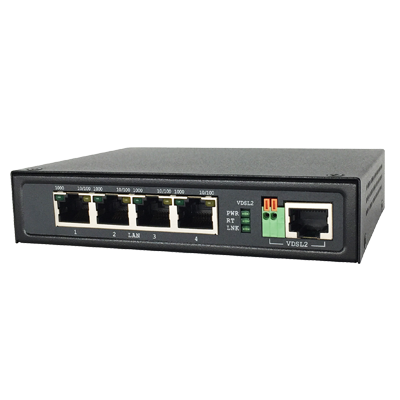

Xentino VX224 is a Lite Industrial Grade Ultra-Speed Gigabit Ethernet Copper Extender that supports a remarkable aggregated bandwidth up to 300Mbps. (Downstream: 150 Mbps/Upstream: 150 Mbps) It delivers fiber-optic like speeds on existing copper infrastructure, enabling a good alternative in place where fiber is not economical to deploy. The VX224 is equipped with four Gigabit Ethernet Port (RJ-45 connector) and one VDSL2 port (RJ-45 connector or 2-PIN Terminal Block) in metal enclosure for easy installation in harsh environment. 8 different profile settings can be flexibly selected via dip switches to suit various applications and environments. Symmetric profile can be applied as a standard Ethernet connection while Asymmetric profile can be used for other services like Video streaming or IP surveillance services which require high traffic flow in an uni-direction configuration. The VX224 supports transparent LAN bridging to extend Ethernet service over UTP, Cat 5+ or Coaxial cables. It is accompanied by a Windows-based software tool DSLmonitor that allows easy access for users to read and monitor the VX224 through its Ethernet port. With Xentino VX224 ’s superior performance in its category, it is the best high throughput Long Reach Ethernet Extenders for service providers to deploy their IP-based networking services to meet various application scenarios in harsh environment.



VDSL Interface:

  • RJ-45 connector or 2-PIN Terminal Block
  • DMT Encoding
  • Complying with ITU-T G993.1/G993.2/G993.5/G.997.1/G.998 / G.INP
  • On-board surge protection

LAN Interface:

  • 4 x RJ-45 connectors
  • 1000 Base-T; Auto-Negotiation, Auto-MDI/MDI-X.
  • Complying with IEEE 802.3/802.3u/802.3z

4-position DIP Switch:

  • Selectable Master (OT) or Remote (RT) mode
  • Selectable 8 different profile settings via Dip Switch (G.INP/Interleaved, Target SNR 6/8/12/24 dB, Symmetric/Asymmetric Modes)

LED:

  • Power: On/Off
  • LAN: Fast Ethernet/Gigabit Ethernet
  • VDSL2: Mode – CO (OT) / CPE (RT)
           Sync - Idle / Trained / Link

Power supply:

  • Option 1: 12~24 (7.5-30 Max) Vdc over terminal block (External Power Adaptor not included)
  • Option 2: 12 Vdc over 2.1mm DC Jack (Commercial Grade External Power Adaptor included)
  • Power Consumption: 4.5 Watts maximum

Dimension (WxHxD): 130 x 94.7 x28 mm

Operating Temperature: -20°C ~65°C

Humidity: 0%~95%RH (non-condensing)

Installation (Optional): DIN Rail

Regulatory Compliance

  • CE Class A
  • FCC Part 15B Class A



Downstream/Upstream Performance

UTP – 26AWG CABLE

Profile 1 – Symmetric/G.INP/SNR 8dB

Profile 1 – Asymmetric/G.INP/SNR 8dB

Distance

(m)

UpStream

(Mbps)

DownStream (Mbps)

Distance

(m)

UpStream

(Mbps)

DownStream (Mbps)

150

155

158

150

100

200

300

122

126

300

77

170

450

75

80

450

38

105

600

48

56

600

22

64

750

28

38

750

10

43

900

23

28

900

9

42

1200

-

-

1200

6

34

  • The above performance data is for reference only, the actual data rate may vary depending on the quality of the copper wire and environmental factors.
