Xentino VX200IDC VDSL2 Endüstriyel Gigabit Ethernet Genişletici (DC), 300 Mbps'ye kadar toplu bant genişliğini destekleyen, Lite Endüstriyel Sınıf Ultra Hızlı Gigabit Ethernet Bakır Genişletici'dir. (İndirme: 150 Mbps / Gönderme: 150 Mbps) Mevcut bakır altyapısı üzerinde fiber optik benzeri hızlar sunarak, fiberin dağıtımının ekonomik olmadığı yerlerde 1 çift bakır kablo ile iyi bir bağlantı alternatifi sağlar. (Cihazla birlikte Güç Kaynağı Yoktur)
Xentino VX200IDC VDSL2 Endüstriyel Gigabit Ethernet Genişletici (DC), 300 Mbps'ye kadar toplu bant genişliğini destekleyen, Lite Endüstriyel Sınıf Ultra Hızlı Gigabit Ethernet Bakır Genişletici'dir. (İndirme: 150 Mbps / Gönderme: 150 Mbps) Mevcut bakır altyapısı üzerinde fiber optik benzeri hızlar sunarak, fiberin dağıtımının ekonomik olmadığı yerlerde 1 çift bakır kablo ile iyi bir bağlantı alternatifi sağlar. (Cihazla birlikte Güç Kaynağı Yoktur)
KEY FEATURES
PRODUCT OVERVIEW

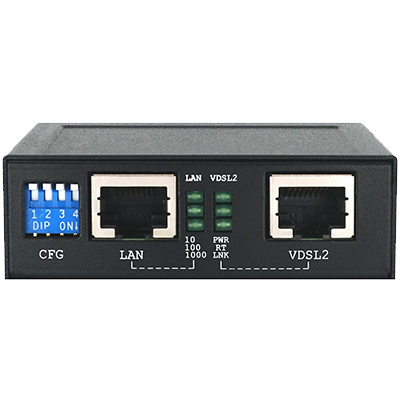

XENTINO VX200 is an Ultra-Speed Gigabit Ethernet Copper Extender that supports a remarkable aggregated bandwidth up to 300Mbps. (Downstream: 150Mbps / Upstream: 150Mbps) It delivers fiber-optic like speeds on existing copper infrastructure, enabling a good alternative in place where fiber is not economical to deploy. The VX200 is equipped with a Gigabit Ethernet Port (RJ-45 connector) and one VDSL2 port (RJ-45 connector). 8 different profile settings can be flexibly selected via dip switches to suit various applications and environments. Symmetric profile can be applied as a standard Ethernet connection while Asymmetric profile can be used for other services like Video streaming or IP surveillance services which require high traffic flow in an uni-direction configuration. The VX200 supports transparent LAN bridging to extend Ethernet service over UTP, Cat 5+ or Coaxial cables. It is accompanied by a Windows-based software tool DSLmonitor that allows easy access for users to read and monitor the VX200 through its Ethernet port. With XENTINO VX200 superior performance in its category, it is the best high throughput Long Reach Ethernet Extenders for service providers to deploy their IP-based networking services to meet various application scenarios.
SPECIFICATIONS
Sync – Idle/Trained/Link
PERFORMANCE (DOWNSTREAM/UPSTREAM)
UTP – 26AWG CABLE |
|||||
Profile Setting 1: SYMMETRIC, SNR 8dB, G.INP |
Profile Setting 1: ASYMMETRIC, SNR 8dB, G.INP |
||||
Distance (Meter) |
UpStream Line Rate (Mbps) |
DownStream Line Rate (Mbps) |
Distance (Meter) |
UpStream Line Rate (Mbps) |
DownStream Line Rate (Mbps) |
150m |
155 Mbps |
158 Mbps |
150m |
100 Mbps |
200 Mbps |
300m |
122 Mbps |
126 Mbps |
300m |
77 Mbps |
170 Mbps |
450m |
75 Mbps |
80 Mbps |
450m |
38 Mbps |
105 Mbps |
600m |
48 Mbps |
56 Mbps |
600m |
22 Mbps |
64 Mbps |
750m |
28 Mbps |
38 Mbps |
750m |
10 Mbps |
43 Mbps |
900m |
23 Mbps |
28 Mbps |
900m |
9 Mbps |
42 Mbps |
1200m |
--- |
--- |
1200m |
6 Mbps |
34 Mbps |
* The above performance data is for reference only, the actual line rate may vary depending on the quality of the copper wire and environmental conditions.
Ordering Info
Model |
Description |
VX200 |
Ultra-Speed VDSL2 Gigabit Ethernet Copper Extender (1xGigabit Ethernet Port, 1xVDSL2 Port) |
VX200I |
Ultra-Speed Industrial VDSL2 Gigabit Ethernet Copper Extender (1xGigabit Ethernet Port, 1xVDSL2 Port) |
VX200IDC |
Ultra-Speed Industrial VDSL2 Gigabit Ethernet Copper Extender (1xGigabit Ethernet Port, 1xVDSL2 Port) – DC Powered |
