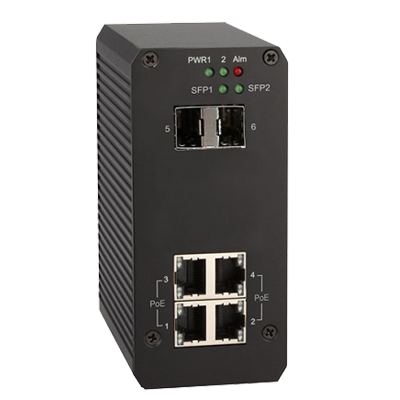

Xentino TI940 is an Industrial 6-port Gigabit PoE Switch, the switch equips with 4-port 10/100/1000M RJ45 PoE+ and 2-port Gigabit SFP open slot. The 4 PoE+ ports are IEEE 802.3at compliant which supports up to 30W per port. The switch has dual redundant power input and the built-in smart alarm function when power failure or port break. The switch has a wide operating temperature, IP30 aluminum case, DIN-rail and wall-mounting installation kit.

Product Overview

Xentino TI940 is an Industrial 6-port Gigabit PoE Switch, the switch equips with 4-port 10/100/1000M RJ45 PoE+ and 2-port Gigabit SFP open slot. The 4 PoE+ ports are IEEE 802.3at compliant which supports up to 30W per port.

The switch has dual redundant power input and the built-in smart alarm function when power failure or port break. The switch has a wide operating temperature, IP30 aluminum case, DIN-rail and wall-mounting installation kit.

Key Features

• Power failure, port break alarm by relay output
• Redundant DC power inputs
• Operating temperature from -40 to 75°C
• DIN-Rail/Wall-mounting Installation
• Rugged Designwith 6KV surge protection
• Support Storm Control
• Support IEEE 802.3az
• Support 9K Jumbo Frame

Redundant Power Inputs

TI940 provides two power inputs that can be connected simultaneously to live DC power source. If one of the power input fails, the other live source acts as a backup to automatically support the TI940’s power needs.

Auto-Negotiation

Every port can automatically sense if the connected network devices are running at 10Mbps,100M, 1000Mbpsand Half/Full-Duplex mode, and adjust accordingly.

Auto-MDI/MDI-X

Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.

Rugged Design

TI940 is designed for harsh environmental conditions. With it's rigid aluminum enclosure and 6KV surge protection design, which not only protect the surge from the DC in port, but also the RJ-45 ports. By using TI940, it will make your network more reliable regardless of the bad weather outside.

Storm Control

A broadcast storm control mechanism prevents the packets from flooding into other parts of the network. TI940 has an intelligent switch engine to prevent Head-of-Line blocking problems on per-CoS basis for each port.

Energy Efficient Ethernet

Ethernet is the most ubiquitous networking interface in the world; virtually all network traffic passes over multiple Ethernet links. However, the majority of Ethernet links spend much of the time idle, waiting between packets of data, but consuming power at a near constant level. Energy Efficient Ethernet (EEE) provides a mechanism and a standard for reducing this energy usage without reducing the vital function that these network interfaces perform.
