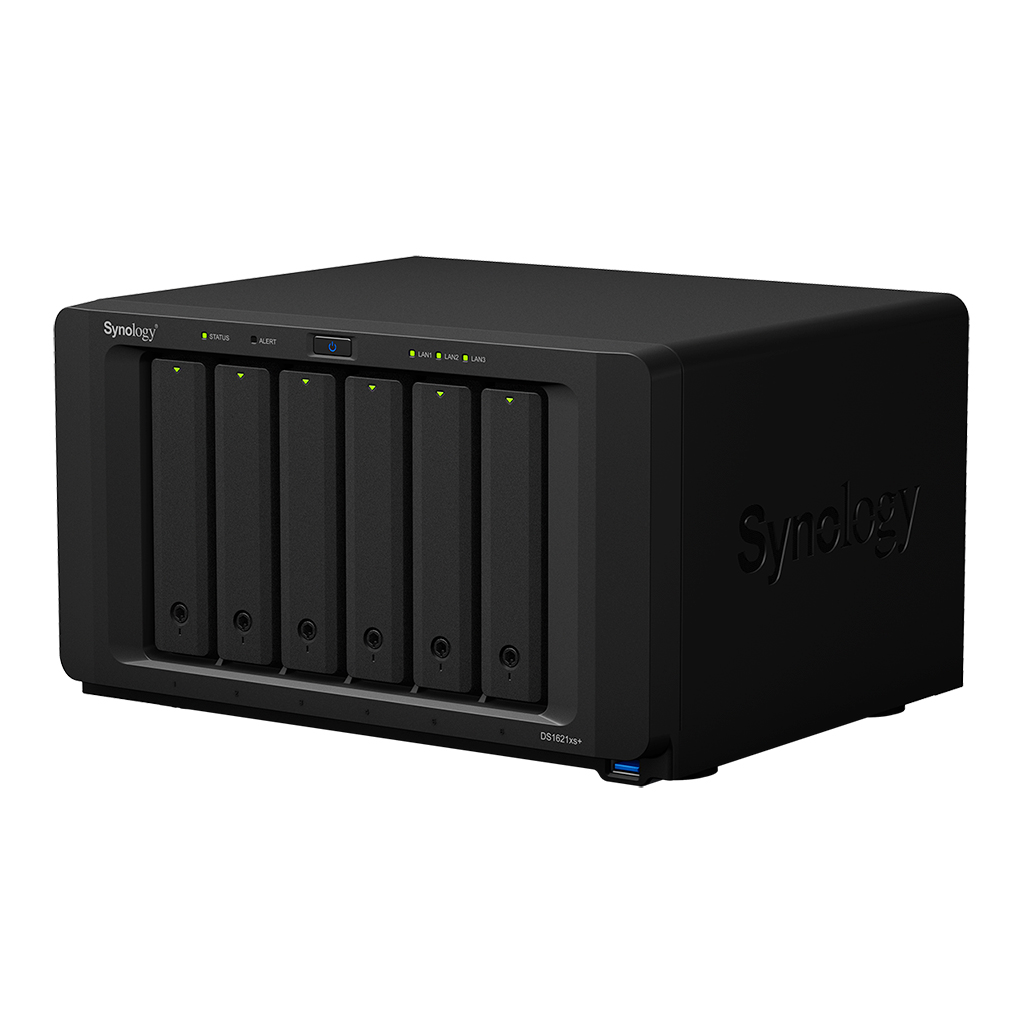

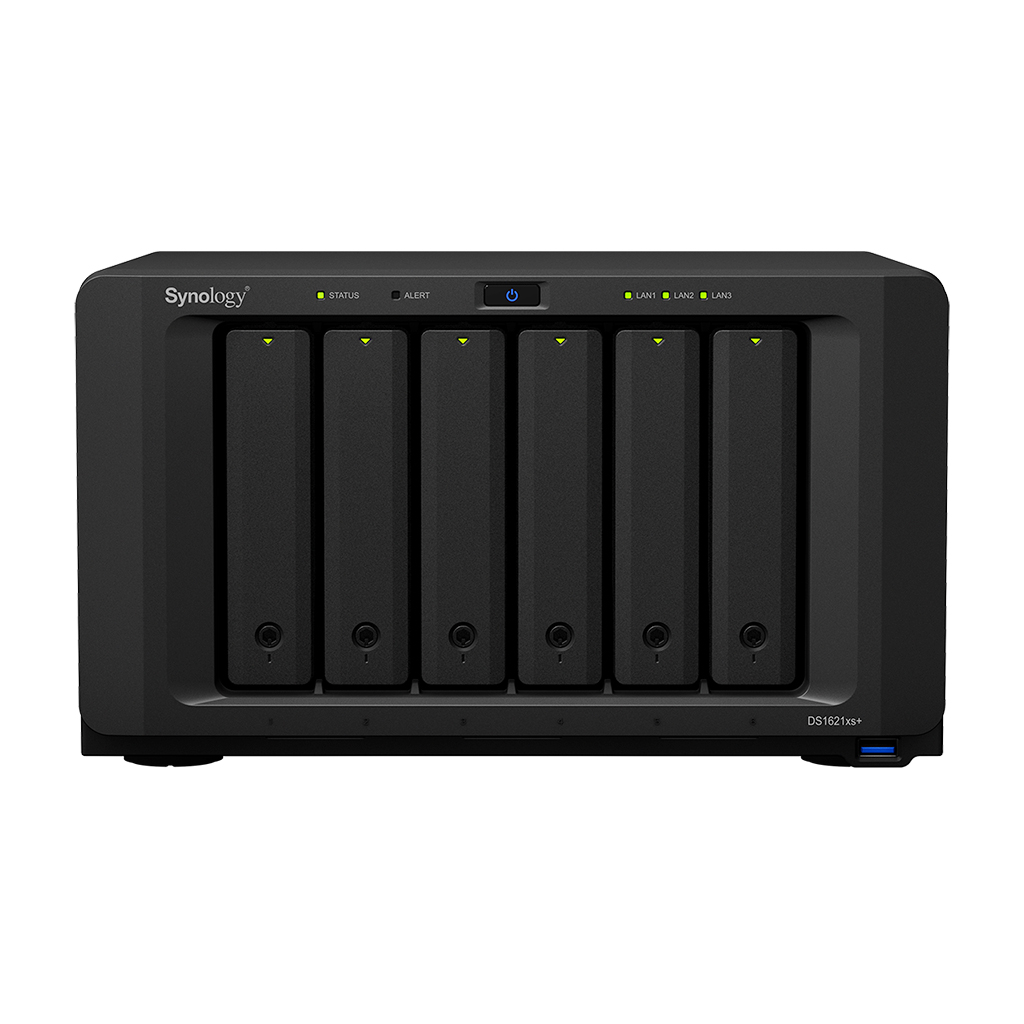

Synology DS1621xsPlus all in one 6Bay NAS

Synology DS1621xsPlus all in one 6Bay NAS

Synology

Synology DiskStation DS1621xs+, 2 adet Gigabit Ethernet bağlantı noktası ve yükseltilebilir (max 32Gb) RAM modülü içeren NAS cihazıdır. İlave DX517 ile toplam 16adet yuvaya çıkabilir. 6adet 3.5"/2.5" SSD/HDD yuvası, 8GB RAM, 1adet 10Gigabit ETH, 2adet Gigabit ETH, 3adet USB3.2 portu, 2adet eSATA portu ve 1 adet Gen3 PCIe slotu ile gelir.

Synology DiskStation DS1621xs+, 2 adet Gigabit Ethernet bağlantı noktası ve yükseltilebilir (max 32Gb) RAM modülü içeren NAS cihazıdır. İlave DX517 ile toplam 16adet yuvaya çıkabilir. 6adet 3.5"/2.5" SSD/HDD yuvası, 8GB RAM, 1adet 10Gigabit ETH, 2adet Gigabit ETH, 3adet USB3.2 portu, 2adet eSATA portu ve 1 adet Gen3 PCIe slotu ile gelir.

High-end scalable NAS in desktop form factor

DS1621xs+ is a high-end NAS with server-class performance in a 6-bay desktop form factor. The built-in M.2 SSD cache slots, 10GbE port, expandable memory, and scalable storage design allow you to boost the performance of your NAS, making it ideal for small and medium-sized businesses that need an efficient and space-saving storage solution.





CPU
 CPU Model Intel Xeon D-1527
  CPU Quantity 1
  CPU Architecture 64-bit
  CPU Frequency 4-core 2.2 (base) / 2.7 (turbo) GHz
  Hardware Encryption Engine (AES-NI)
Memory
 System Memory 8 GB DDR4 ECC SODIMM
  Memory Module Pre-installed 8 GB (8 GB x 1)
  Total Memory Slots 2
  Maximum Memory Capacity 32 GB (16 GB x 2)
  Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information on the recommended memory configurations, visit here.
Storage
 Drive Bays 6
  Maximum Drive Bays with Expansion Unit 16 (DX517 x 2)
  M.2 Drive Slots 2 (NVMe)
  Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe SSD
  Hot Swappable Drive*
  Notes
  • The hot swappable drive feature is not supported by M.2 SSD slots.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

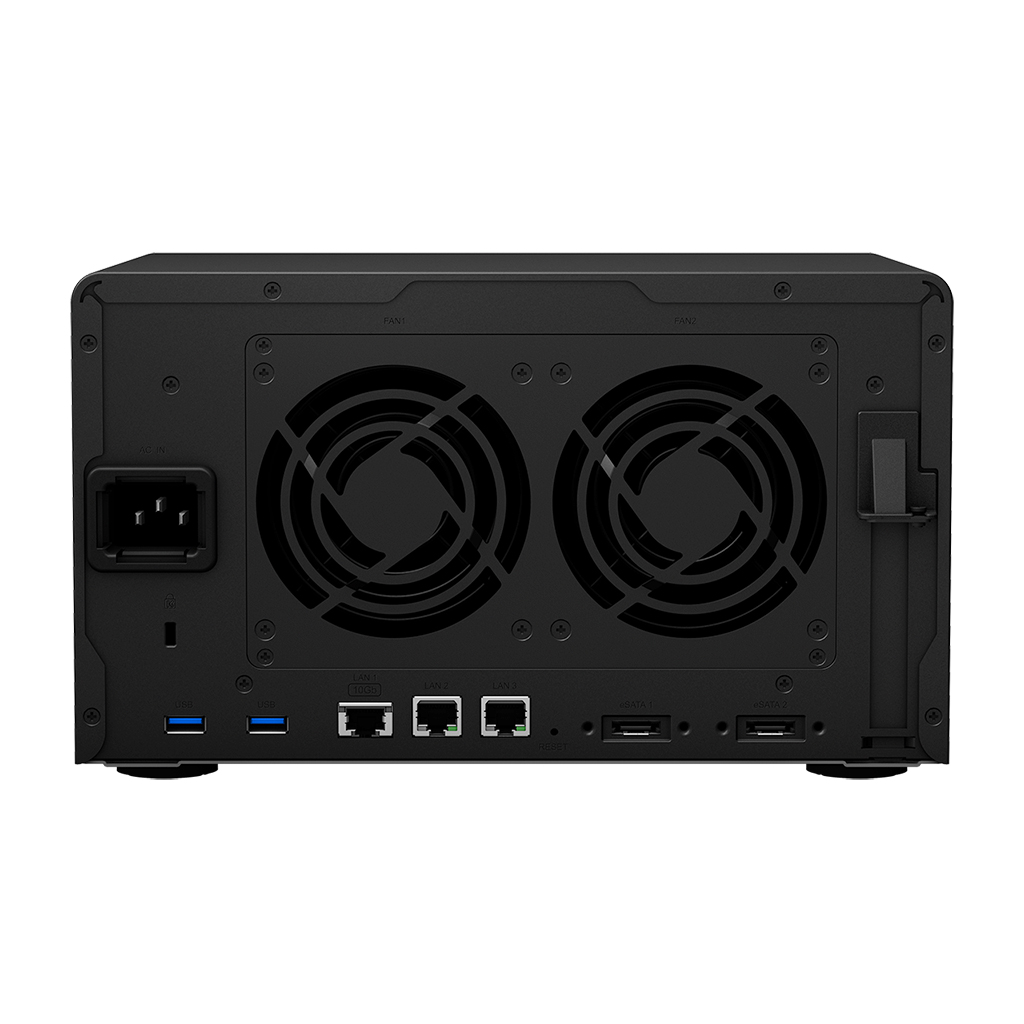

External Ports
 RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
  RJ-45 10GbE LAN Port 1
  USB 3.2 Gen 1 Port* 3
  eSATA Port 2
  Notes The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 1 x Gen3 x8 slot (x8 link)
File System
 Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
  Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
 Size (Height x Width x Depth) 166 mm x 282 mm x 243 mm
  Weight 5.3 kg
Others
 System Fan 92 mm x 92 mm x 2 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Easy Replacement System Fan
  Brightness Adjustable Front LED Indicators
  Power Recovery
  Noise Level* 25.2 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 250 W
  AC Input Power Voltage 100V to 240V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption 62.85 W (Access)
34.26 W (HDD Hibernation)
  British Thermal Unit 214.45 BTU/hr (Access)
116.89 BTU/hr (HDD Hibernation)
  Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • CCC
  • KC
  • VCCI
  • RCM
Warranty
 5 Years
  Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
