Xentino C820 11ax 1800Mbps Ceiling Wireless AP

Xentino

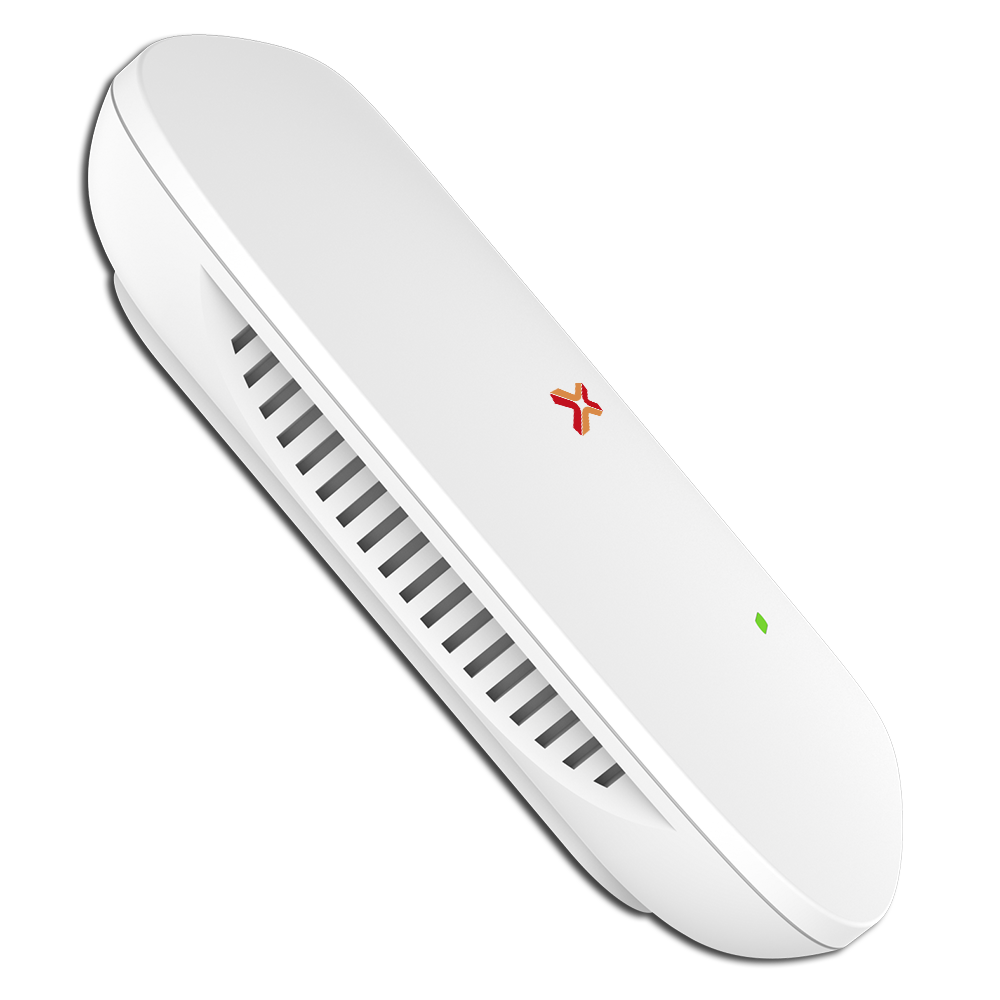

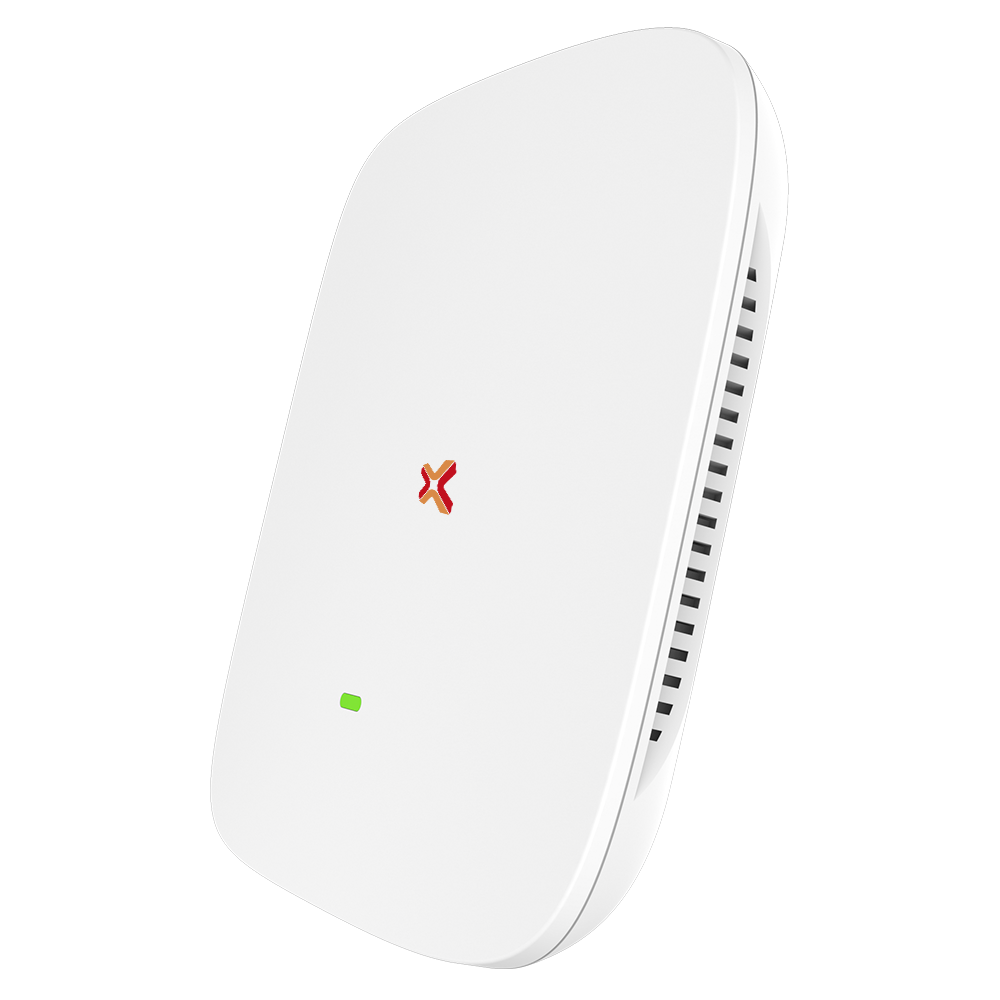

C820 is an economic 11ax Wi-Fi standard Ceiling Wireless Access Point based on MTK platform for home, hotel applications. Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, Wave2.0 and seamless roaming. (Adaptör ve POE injector YOKTUR)

C820 is an economic 11ax Wi-Fi standard Ceiling Wireless Access Point based on MTK platform for home, hotel applications. Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, Wave2.0 and seamless roaming.

Product Overview

Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, Wave2.0 and seamless roaming. It provide high speed Ethernet data rate and allow more users access, then multiple users can upload or download multiple packets at same time. The narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.



Main Features

  • Comply with IEEE 802.11ax/ac/b/g/n, dual band, 1800Mbps Data Rate
  • 1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port to meet with different customer’s request
  • Support active IEEE 802.3af/at 48V PoE standard
  • Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment support Seamless Roaming, OFDMA,1024-QAM
  • With MTK chipset, Flash : SPI NOR 16MB + NAND 256MB, greatly improved the data processing performance and allow more end users access



FIT/FAT Operation Mode

C820 supports FIT/FAT operation modes;

If FIT AP, work with AC controller, plug and play, central management by AC controller, mostly for enterprise application.

If FAT AP, support AP, repeater, gateway, WISP operation mode, can be configured by GUI, suit for home mostly.



Multiple Protection for Stable Performance

C820 with ABS fireproof material, white color, suite for various decoration styles. Besides that, PCB board with watchdog design, can reboot automatically in case of failure. What’s more, it support lightning protection and ESD protection, can install in various harsh environment.



Power over Ethernet

C820 has integrated IEEE802.3af/at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing



SPECIFICATIONS

Hardware:

Chipset

MT7621A+MT7905N+MT7975DN

Standard

802.11ax/ac/b/g/n

Flash

SPI NOR 16MB

Memory

256MB

2.4G Frequency

2.4GHz - 2.484GHz

2.4G Wi-Fi standard

802.11b/g/n/ac/ax

5.8G Frequency

5150~5850MHz

5.8G Wi-Fi Standard

802.11 a/n/ac/ax

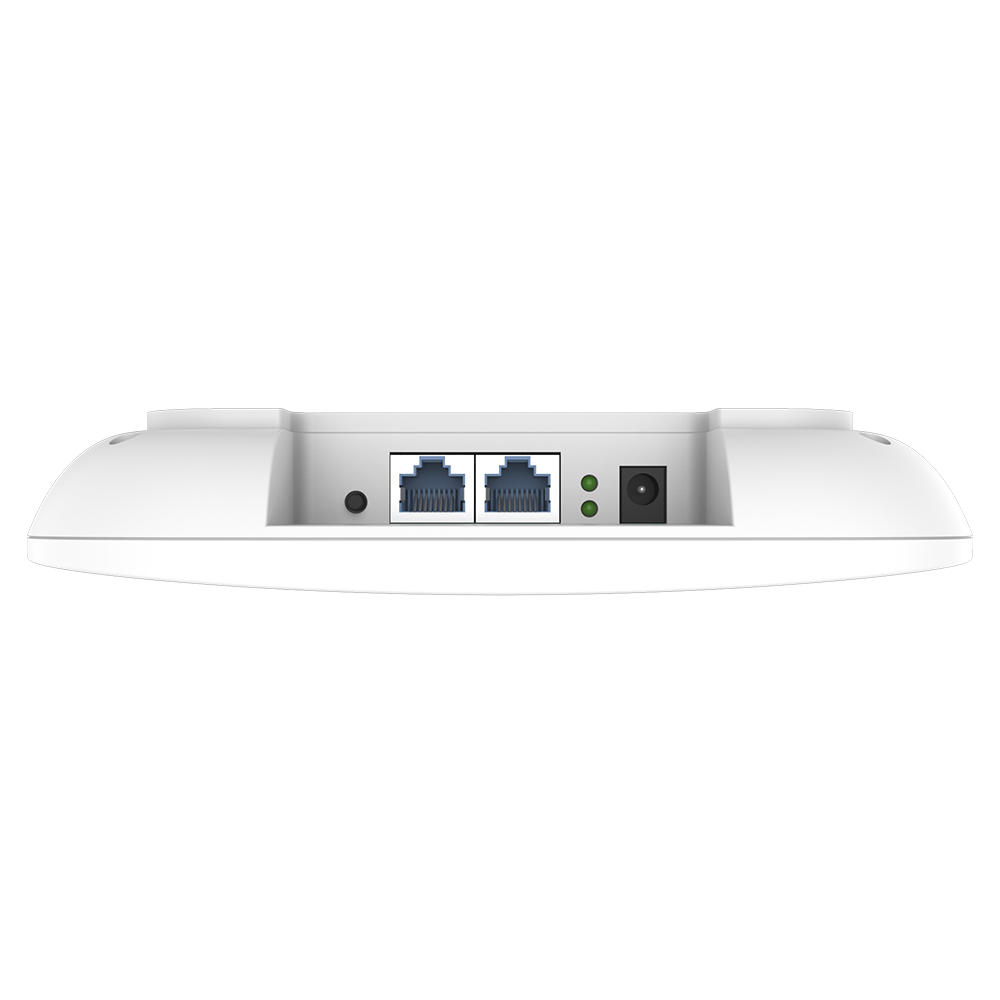

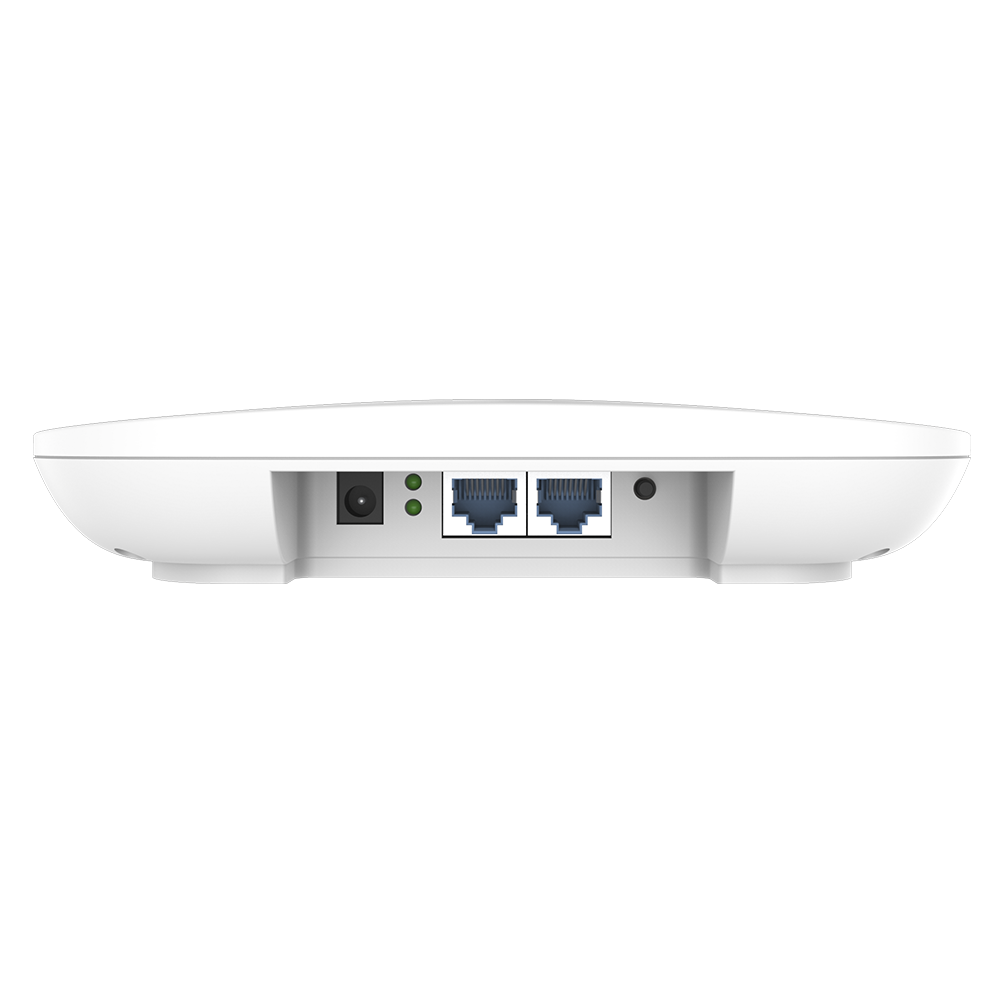

Interface

1 * 10/100 /1000 RJ45 WAN Port

1 * 10/100 /1000 RJ45 LAN Port

1 * Reset button, press 10 seconds to revert to default setting

USB3.0 and Bluetooth are optional if need.

Antenna

Build in 4dBi MIMO Antenna

Data Rate

1800Mbps

End Users

120+

RF Power

≤ 18dBm

DC

12V----1.5A

PoE

48V (IEEE 802.3af/at)

LED light

Sys and WiFi, WAN, LAN

Power Consumption

≤ 15W

Size

168mmX168mmX32mm

Weight



Others

Package Contents

1800Mbps Dual Band wireless access point

Ethernet Cable

Installation Accessory

Environment

Operating Temperature: -20~45 ℃

Limit working temperature: -30~70 ℃

Storage Temperature: -40~70 ℃

Humidity: 5%~95% non-condensing



ANTENNA SPECIFICATIONS



Item

Specifications

Antenna

Frequency Range

2.4GHz&5.8 GHz

Gain

4dBi

V.S.W.R

≤1.9

Impendance

50Ω

Polarization

Vertical

Radiation

Omni
