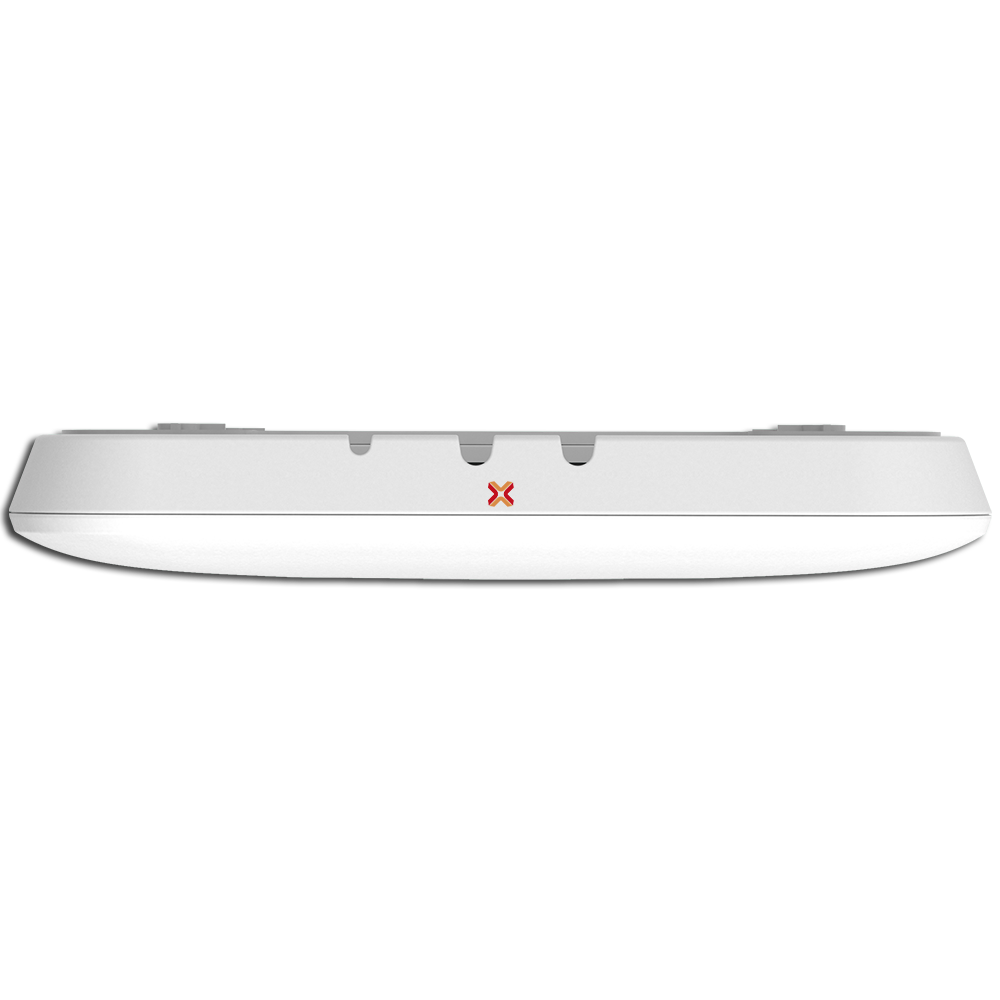

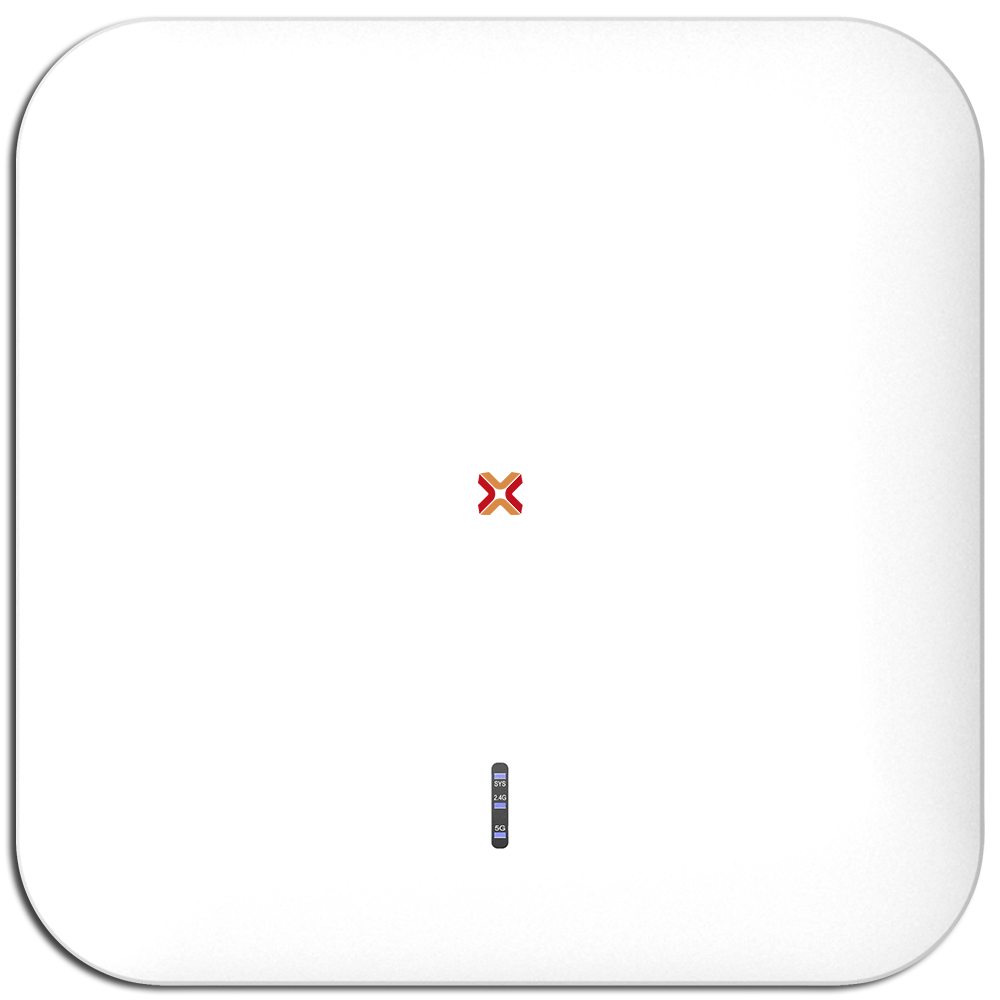

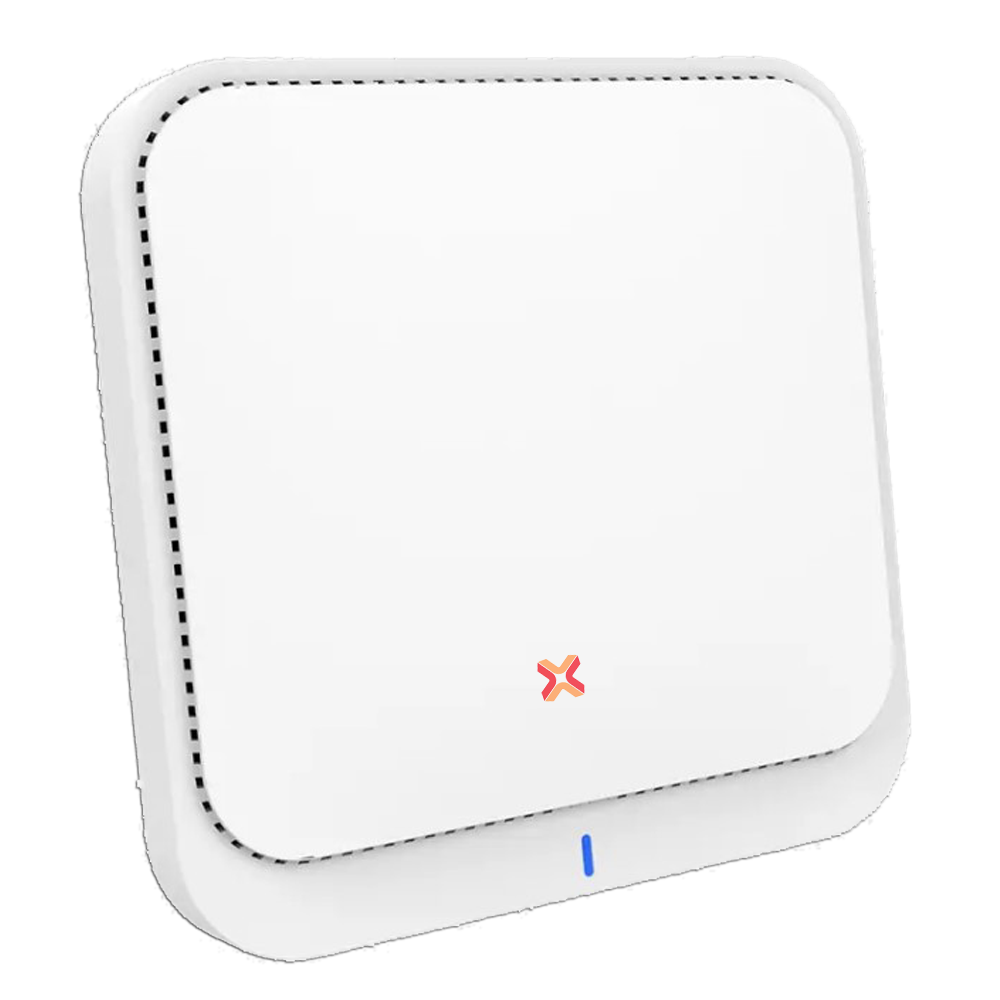

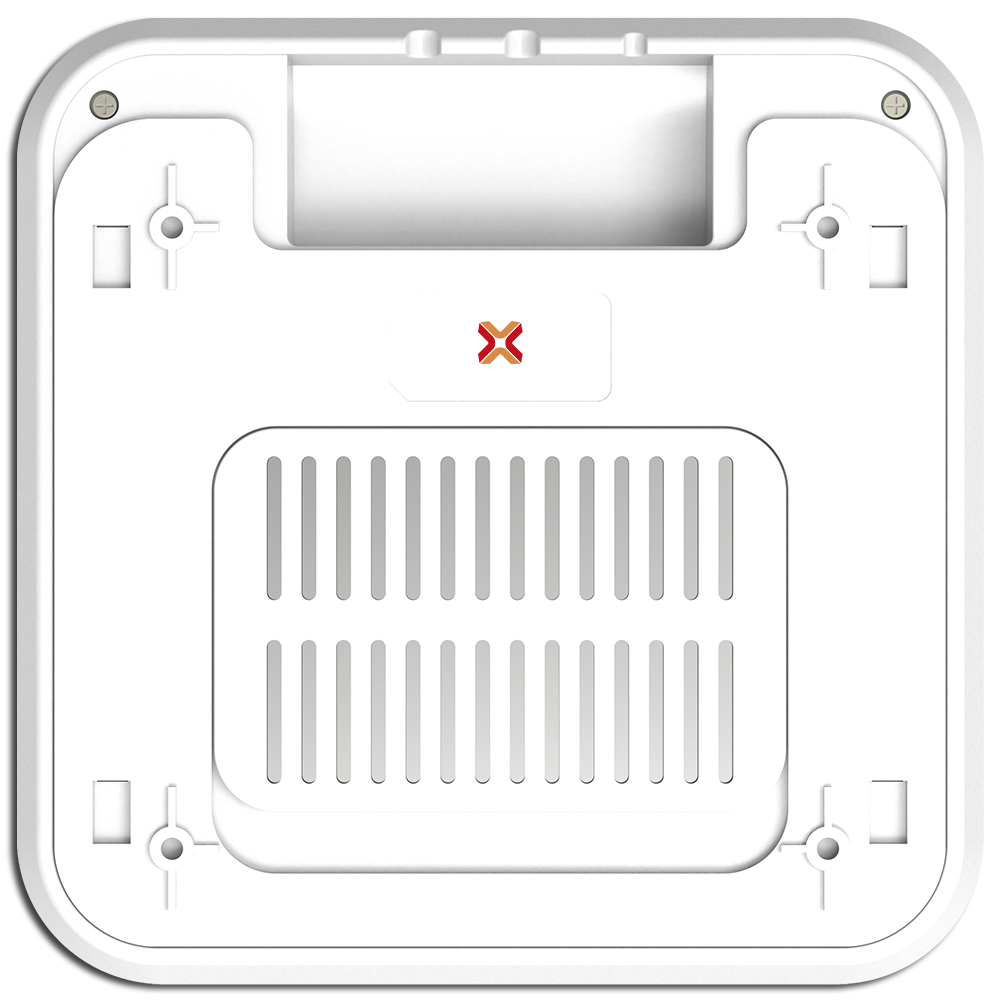

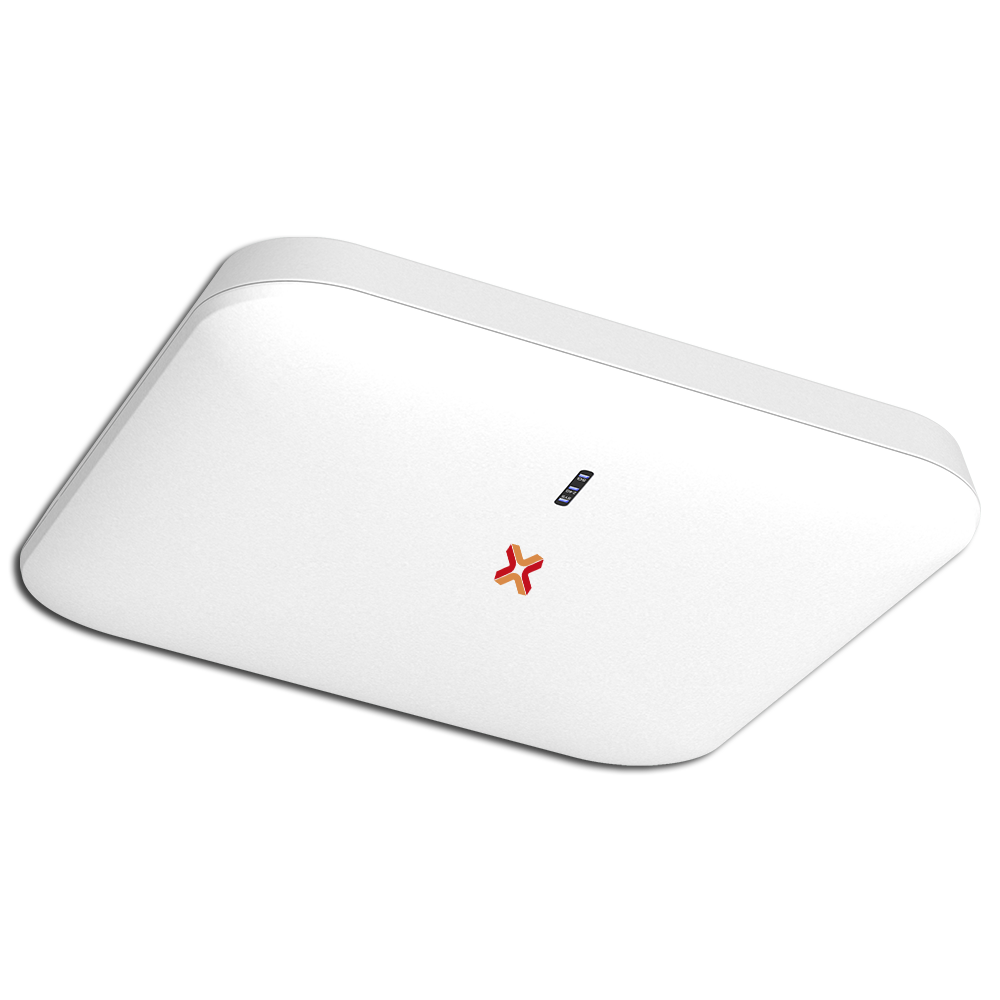

C540 is an Qualcomm Chipset high power industrial Ceiling Wireless Access Point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz (900Mbps), support Wave2, equipped Gigabit WAN & LAN port, data rate make more than 100 end users can access into C540 with faster Ethernet, make them to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall..

Main Features

• Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate

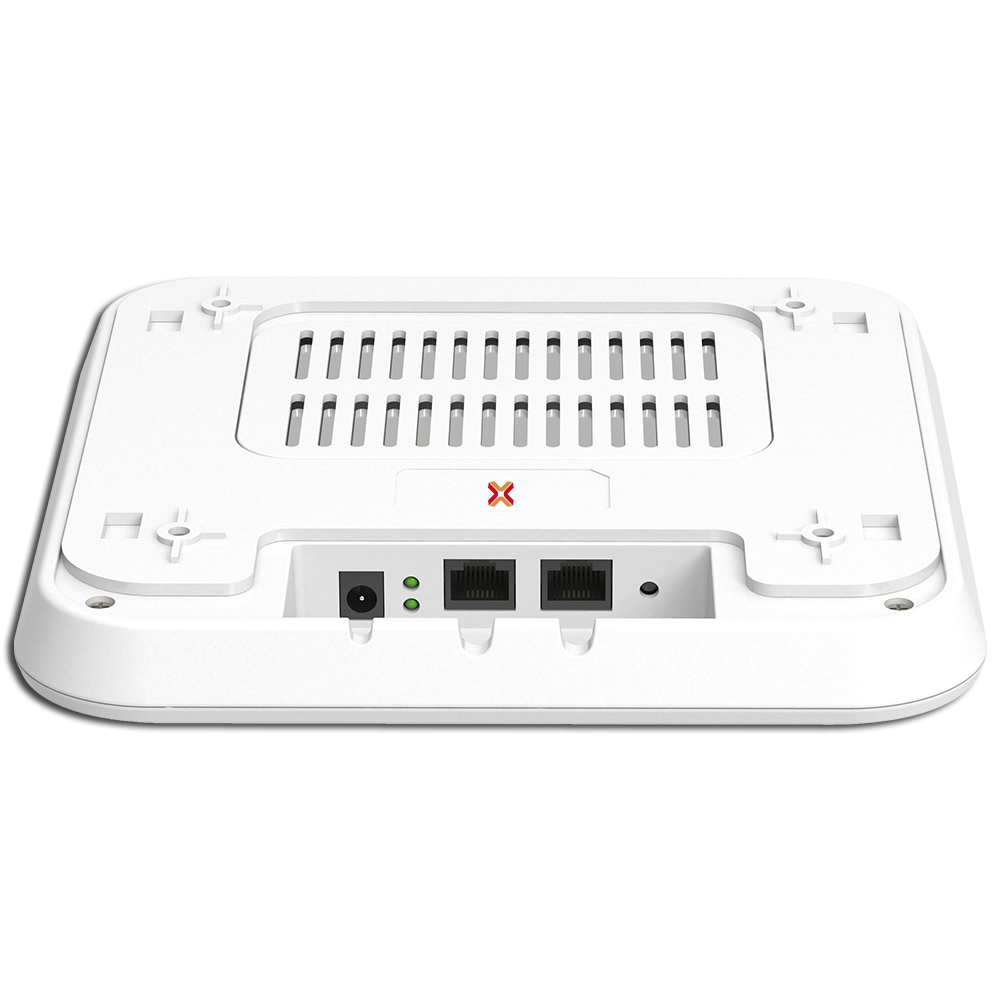

• 1x10/100/1000Mbps WAN Port, 1x10/100/1000Mbps LAN Port
• 1000mW high power, build in 5dBi MIMO antenna, stronger signal strength, more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable
• Support active IEEE 802.3at 48V PoE standard
• Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
• Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
• With function of build in firewall, IP filter, URL filter and MAC filter
• Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
• Support DDNS, VPN pass through, Port forwarding and DMZ host
• Support 64/128-bit WEP security, EAP, 128bit WPA (TKIP/AES) security

High Power for more range and stable signal

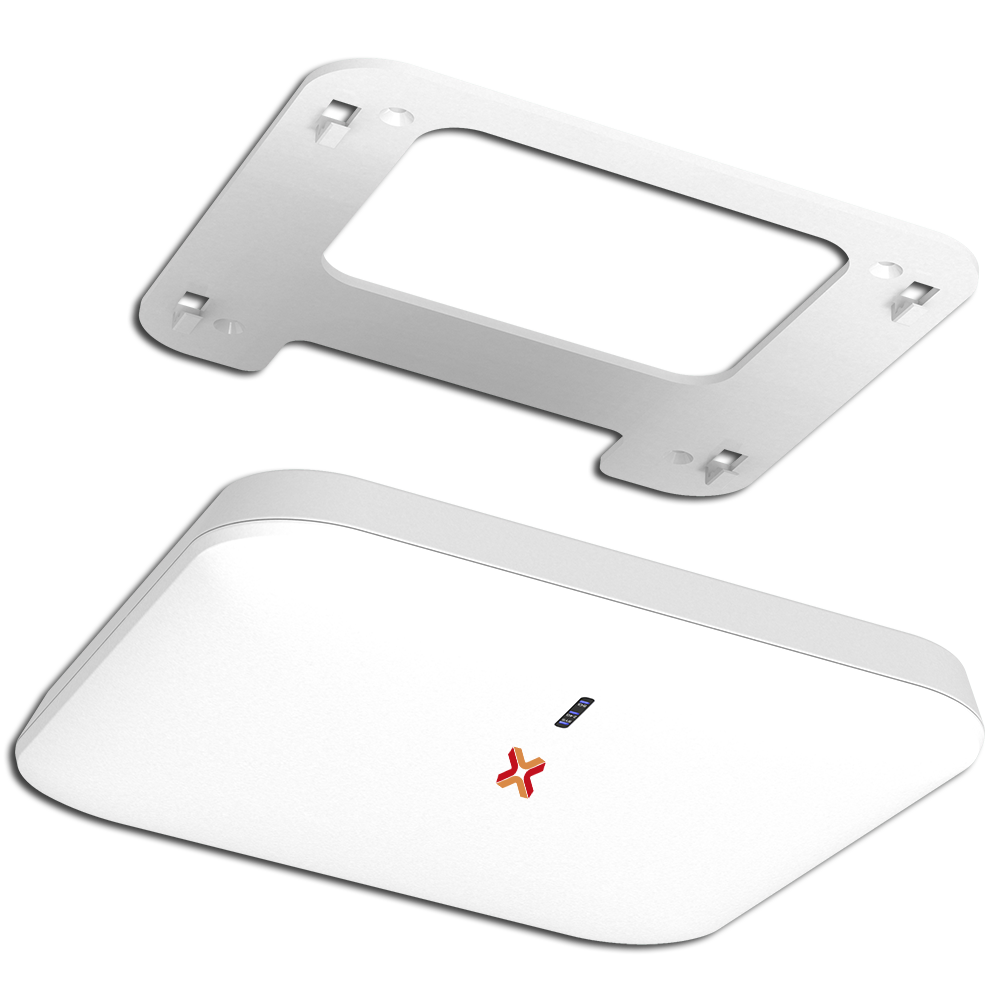

Designed in two line Power Amplifier on PCB board, the power can be 26±2dBm high power, 4dBi MIMO high gain antenna, together with Ceiling mount, greatly increase the wireless range and supply the stable Wi-Fi signal for users.

Wave 2 Technology
With Wave 2 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), 160MHz Frequency, greatly to improved the communication efficiency.

Power over Ethernet
C540 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

Access Controller System & Cloud Management System
With Access Control System, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore.

Then work with Cloud Management System, easy to do central and remote management, advertisement and multiple captive portal authentication make this AP more professional in Wi-Fi Projects.
