Xentino C780 11ac 1200Mbps Ceiling Wireless AP..

Xentino

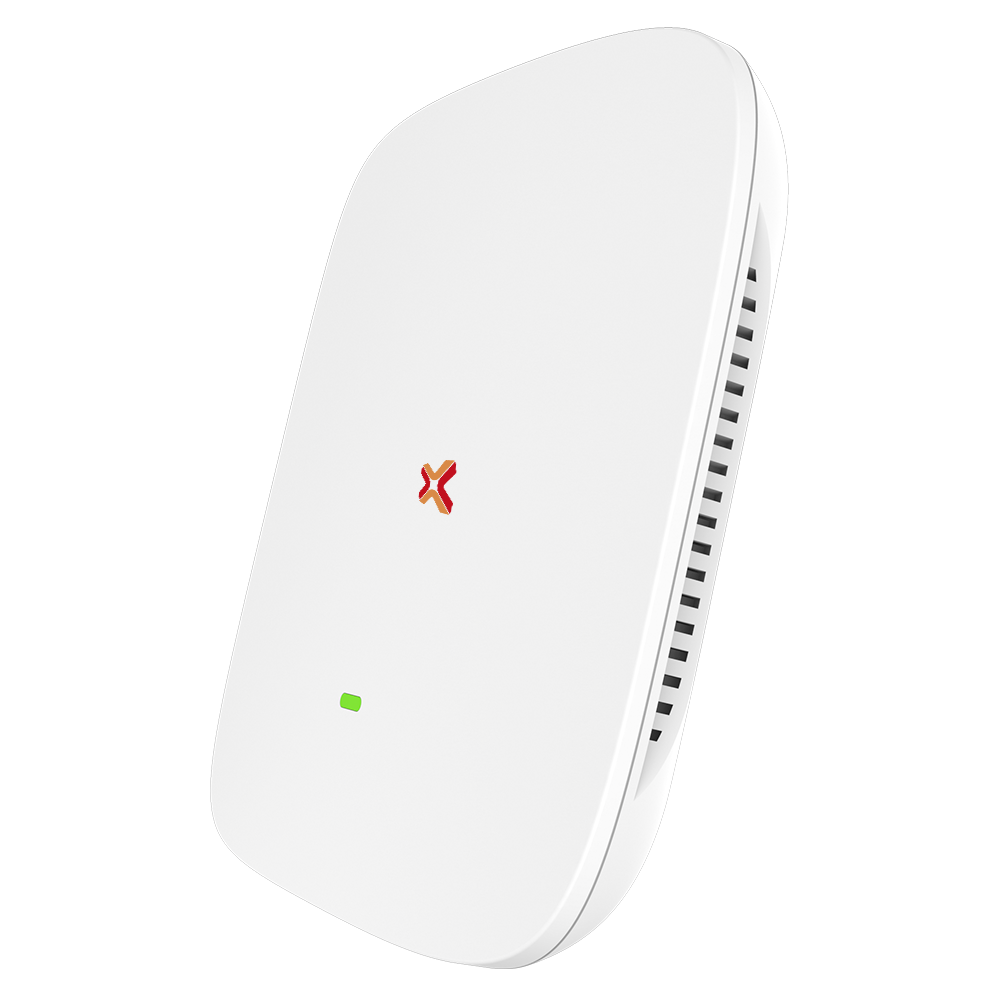

C780 is an IEEE 802.11ac Wi-Fi standard high power Ceiling Wireless Access Point with MTK chipset. It supports WAVE 2 MU-MIMO , combined with 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz (900Mbps), make more than 80 end users can access at the same time into it. It is an economic option for hotel, school, restaurant or other enterprise places.(Adaptör ve POE injector YOKTUR)

C780 is an IEEE 802.11ac Wi-Fi standard high power Ceiling Wireless Access Point with MTK chipset. It supports WAVE 2 MU-MIMO , combined with 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz (900Mbps), make more than 80 end users can access at the same time into it. It is an economic option for hotel, school, restaurant or other enterprise places.

Main Features

  • Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate, 11ac 2x2 MIMO Technology
  • 2*10/1000Mbps Ethernet Ports to meet with different customer’s request
  • Support active IEEE 802.3af 48V PoE standard
  • Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
  • Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP operation mode in FAT AP
  • With function of build in firewall, IP filter, URL filter and MAC filter
  • Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment

Zero Configure and Cloud Management System

Support FIT/FAT AP together, work with Xentino WLAN Controller, zero configure in IP address, ESSID, Channel, Password, upgrade firmware, backup and restore. Besides that, it support advertisement and authentication functions like WeChat, Google, SMS, Facebook, Member Authentication.

Then the WLAN controller can access into Cloud Management System, easy to make administrator access it, to do remote monitoring/management at any time and any place, make this AP and WLAN controller more professional and cost saved in Wi-Fi Projects.

FIT/FAT Operation Mode

C780 supports FIT/FAT operation modes;

If FIT AP, work with AC controller, plug and play, central management by AC controller, mostly for enterprise application.

If FAT AP, support AP, repeater, gateway, WISP operation mode, can be configured by GUI, suit for home mostly.

Multiple Protection for Stable Performance

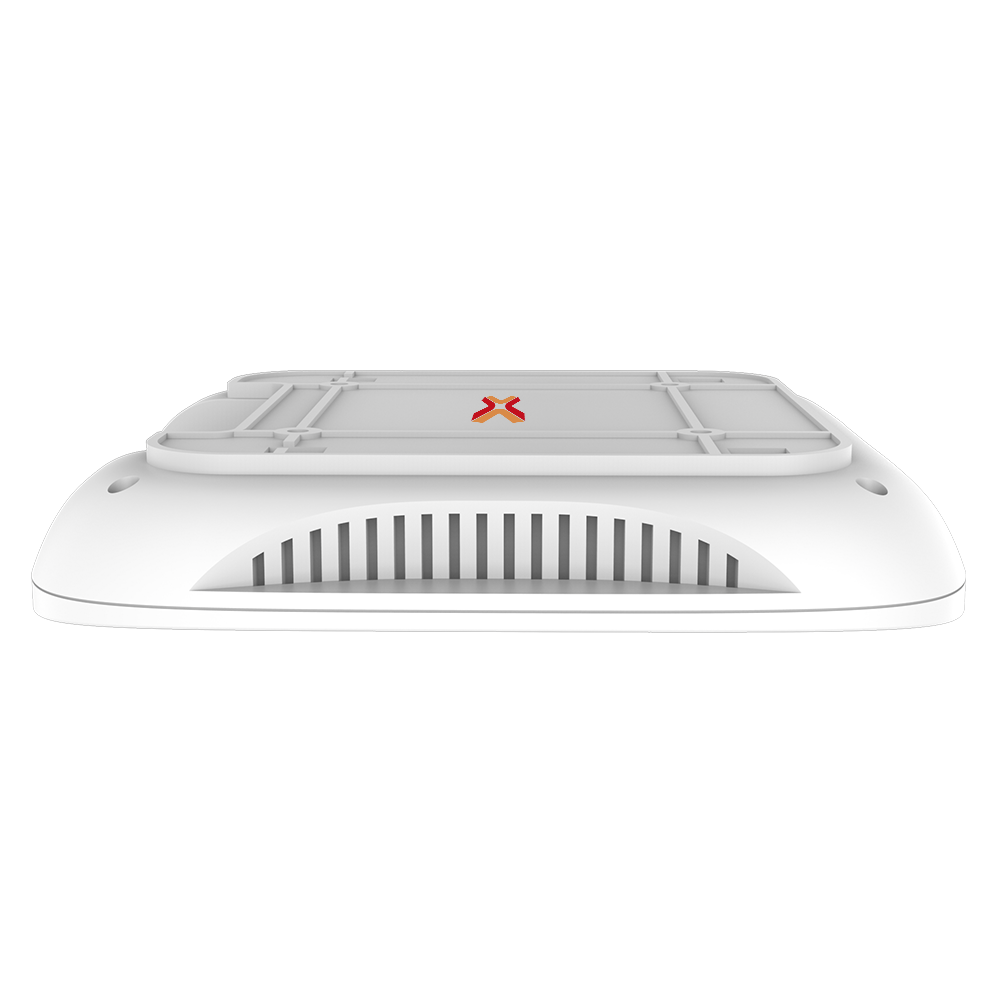

C780 with ABS fireproof material, white color, suite for various decoration styles. Besides that, PCB board with watchdog design, can reboot automatically in case of failure. What’s more, it support lightning protection and ESD protection, can install in various harsh environment.

Power over Ethernet

C780 has integrated IEEE802.3af Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.



Hardware

Chipset

MT7621DAT+MT7615D

Standard

802.11ac/b/g/n, MIMO technology

Memory

128MB

Flash

SPI NOR 8MB

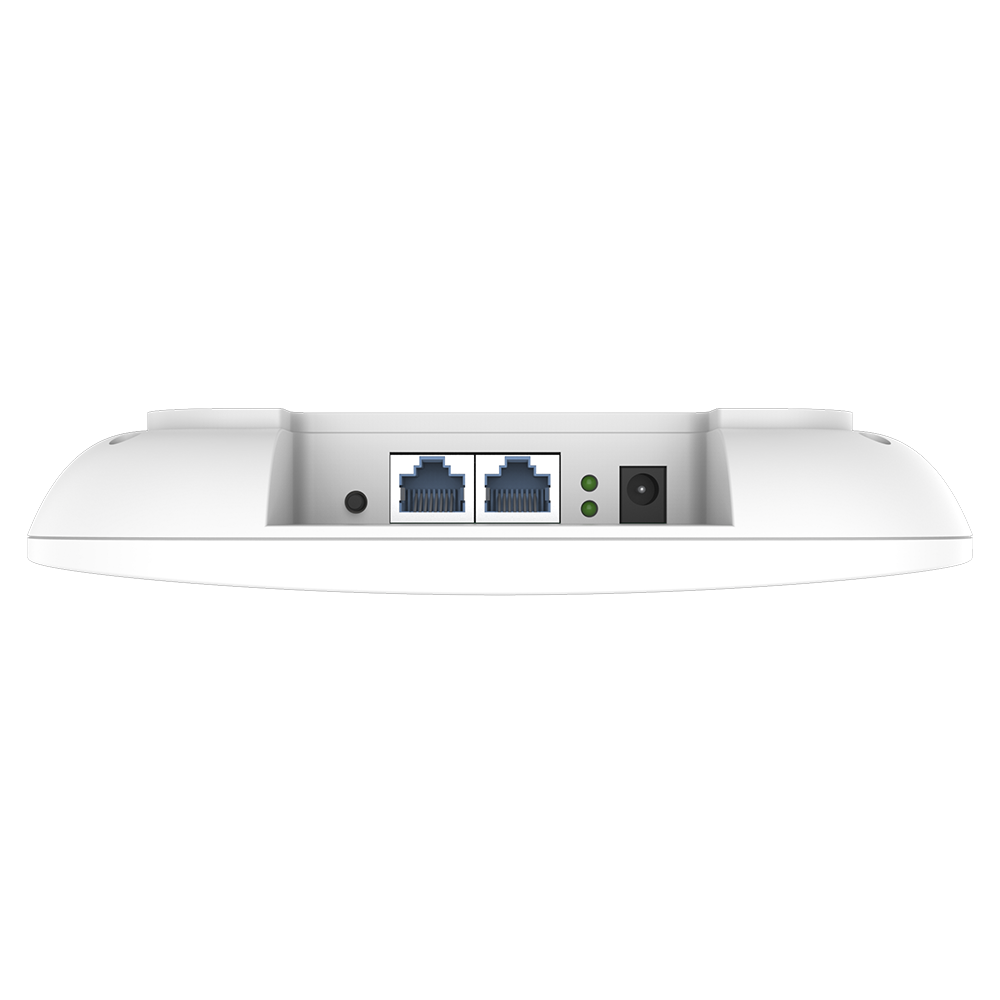

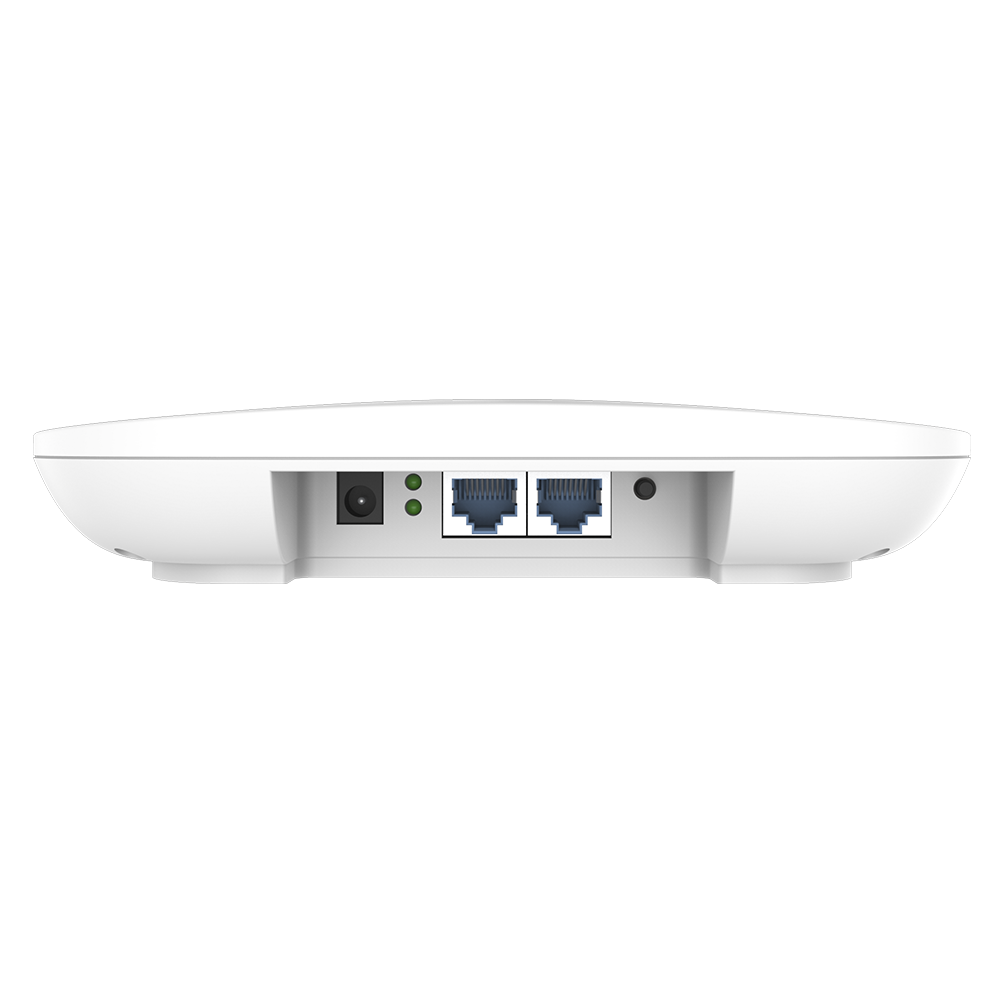

Interface

1 * 10/100/1000Mbps RJ45 WAN Port

1 * 10/100/1000Mbps RJ45 LAN Port

1 * Reset button, press 15 seconds to revert to default setting

Antenna

Build in 5dBi 2.4GHz MIMO Antenna

Build in 4dBi 5.8GHz MIMO Antenna

Size

168mm * 168 mm * 32 mm

POE

48V  0.5A

DC

12V  1A

LED Indicator

Sys, 2.4G WIF, 5.8G WIFI, LAN, WAN

Max Power Consumption

< 10W

ESD

±6KV

RF Data

Frequency

2.4G:802.11b/g/n: 2400MHz~2484MHz

5GHz:802.11a/n/ac: 5150MHz ~5850MHz

Country code

FCC, IC, ETSI, MKK, MKK1, MKK2, MKK3, NCC, RUSSIAN, CN

Modulation

OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM

DSSS = DBPSK, DQPSK, CCK

Throughput

1200Mbps

RF Power (2.4GHz)

<20dBm

RF Power (5GHz)

<23dBm

PPM

±20ppm

Max Users

128+

Others

Package Contents

1200Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Setting Accessory

Environment

Operating Temperature: -20~45 ℃

Storage Temperature: -40~70 ℃

Storage Humidity: 5%~95% non-condensing

Management

Firmware GUI , Remote Management, WLAN Controller, Cloud Management System

Firmware Features

Operation mode

Wireless AP: Plug and Play.

Gateway: Dynamic IP/Static IP/PPPoE

Wireless Functions

Multiple SSID functions: 2.4GHz: 4;  5.8GHz: 4

Support SSID hidden

Support SSID broadcast

Support 5G Prior for a faster Ethernet.

Wireless Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK

Support MAC filter

Support Wi-Fi time on/off to save energy

Support client isolation to improve the wireless stability

Support RF power adjustable, adjust the RF power based on environment.

Short GI Enable and Disable

Support user quantity limited, Max 128 users to access each band.

Networking Function

VLAN settings

Cloud access support in gateway mode

Device Management

Back-up the configuration

Restore the configuration

Reset to factory default

Reboot the device: including time reboot or reboot immediately

Admin management password modify

Firmware upgrade

System log

Support firmware GUI web management, AC controller management, remote management and cloud management

Protocols

IPv4







Bu ürüne ait özellikler veritabanımızda bulunmamamktadır.

Xentino C540 11ac 1200Mbps Wave2 Ceiling Wireless AP

C540 is an Qualcomm Chipset high power industrial Ceiling Wireless Access Point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz (900Mbps ...

Xentino C820 11ax 1800Mbps Ceiling Wireless AP

C820 is an economic 11ax Wi-Fi standard Ceiling Wireless Access Point based on MTK platform for home, hotel applications. Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz ...

Xentino C840 11ax 1800Mbps Ceiling Wireless AP

C840 is an 11ax Wi-Fi6 standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0 OFDMA and Seamless Roaming. Combined 1800Mbps Wi-Fi speed over 2 radios: ...

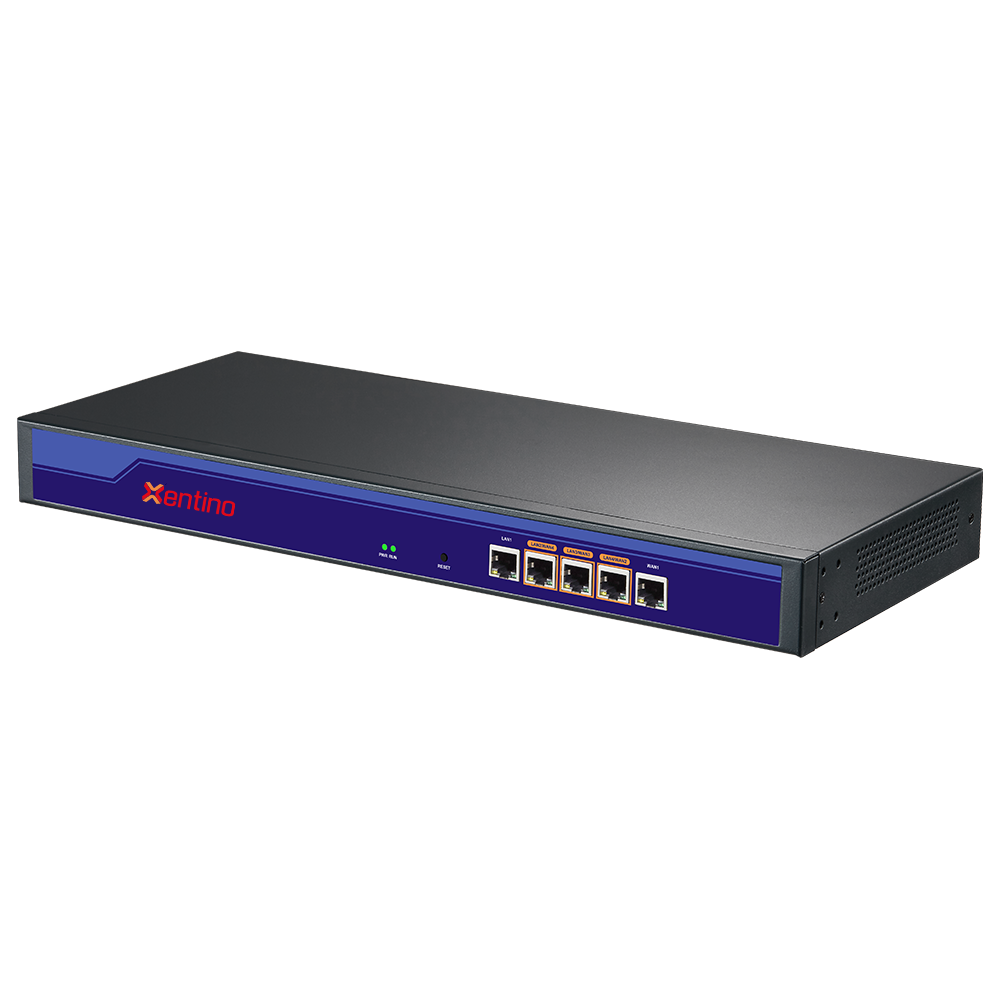

Xentino AC520 Enterprise Load Balance Gateway WLAN Controller

C780 is an IEEE 802.11ac Wi-Fi standard high power Ceiling Wireless Access Point with MTK chipset. It supports WAVE 2 MU-MIMO , combined with 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz (900M ...

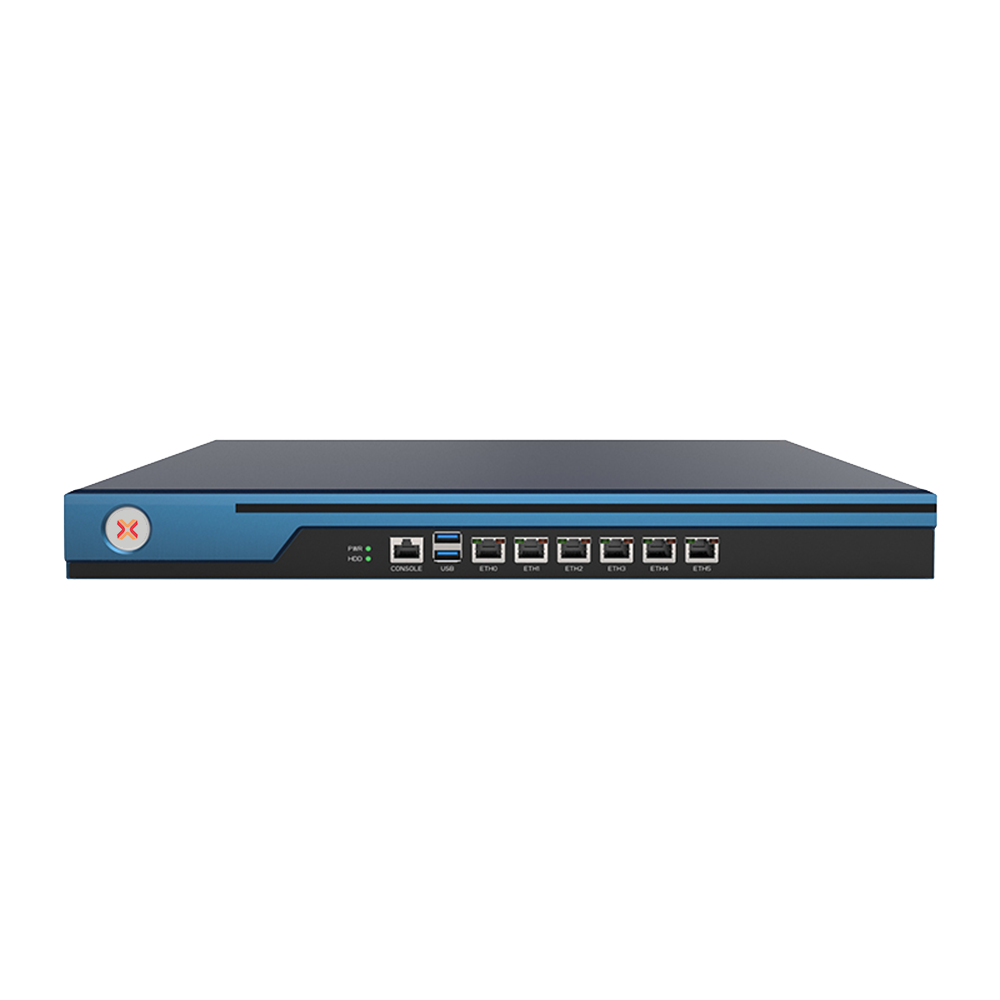

Xentino AC260 Enterprise Load Balance Gateway WLAN Controller
