Xentino SI1604TGPL3 16Port (8GEPoE+/4GE/4SFP+) L3 Managed Industrial PoE Fiber 10G UL Switch

Xentino SI1604TGPL3 16Port (8GEPoE+/4GE/4SFP+) L3 Managed Industrial PoE Fiber 10G UL Switch

Xentino

Xentino SI1604TGPL3 is a 10G uplink L3 managed industrial PoE fiber switch independently developed by XENTINO. It has 8*10/100/1000Base-T RJ45 PoE ports, 4*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port POE power up to 30W.

Xentino SI1604TGPL3 is a 10G uplink L3 managed industrial PoE fiber switch independently developed by XENTINO. It has 12*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port POE power up to 30W.

OVERVIEW



The SI1604TGPL3 is a 10G uplink L3 managed industrial PoE fiber switch independently developed by XENTINO. It has 12*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port POE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, web camera, VoIP phone, industrial sensor through network cable and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.



The SI1604TGPL3 has L3 full network management supports IPV4/IPV6 management, dynamic routing full line-speed forwarding, complete security protection mechanism, perfect ACL/QoS policy, and rich VLAN functions, easy to manage and maintain.  With  industry-leading  ring  network  technology.  It  supports  a  variety  of industrial-grade redundant ring network protocols, and each port can form a ring network, supporting chain ring network, starring network, double starring network, ring network, tangent network ring network, intersecting ring network, coupled ring network, self-healing within 20ms of the ring network. The switches series has high reliability, high security, and high manageability, ensures reliable transmission of key data, supports remote management, and cooperates with the Xentino NMS network management platform for cluster management to achieve no blind spot network management throughout the process. The Industrial grade series products completely follow the industrial product design and materials. The shell is made of metal material to enhance heat dissipation. It has excellent adaptability to the industrial site environment (including mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.). Protection level is IP40, support dual redundant power supply. Low power consumption, no fan heat dissipation technology, MTBF average fault free working time can reach 47 years.



FEATURES



  1. Full gigabit port  and 10G uplink
  • Support non-blocking wire-speed forwarding.
  • Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
  • Support gigabit Ethernet port and 10G SFP+ port combination, which enables users to flexibly build networking to meet the needs of various scenarios.



  1. Intelligent PoE power supply
  • 8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
  • IEEE802.3af/at PoE standard, without damaging non-PoE devices.
  • PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
  1. Strong business processing capability
  • ERPS/STP/RSTP/MSTP.
  • Static and dynamic aggregation.
  • IGMPV1/V2/V3 and IGMP Snooping.
  • IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN and QinQ configuration.
  • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.
  • ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.



  1. Security
  • 802.1X authentication.
  • Port isolation,Storm control.
  • IP-MAC-VLAN-Port binding.



  1. Stable and reliable
  • CCC,CE, FCC, and RoHS.
  • Low power consumption, aluminum casing. No fan.
  • The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.



  1. Easy operation and maintenance management
  • HTTPS, SSLV3, and SSHV1/V2.
  • RMON, system log, LLDP, and port traffic statistics.
  • CPU monitoring, memory monitoring, Ping test, and cable diagnose.
  • Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).



TECHNICAL SPECIFICATION



Model

SI1604TGPL3

Interface Characteristics

Fixed Port

4*1/10G uplink SFP+ ports (Data)

Power off alarm switch port (FAULT)

8*10/100/1000Base-T PoE ports (Data/Power)

4*10/100/1000Base-T uplink RJ45 ports (Data)

2 set of V+, V- redundant DC power ports (6 Pin Phoenix terminal)

Ethernet Port

Port 1-12 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meters)

100BASE-TX: Cat5 or later UTP(≤100 meters)

1000BASE-T: Cat5e or later UTP(≤100 meters)

Optical Fiber Port

1/10G SFP+ optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Optical Fiber Port Expansion

Support Turbo overclocking 2.5G optical module expansion and ring network

Optical Cable/ Distance

Multi-mode: 850nm / 0~500M, 0~300M(10G),

Single-mode: 1310nm / 0~ 40KM, 1550nm / 0~120KM.

Chip Parameter

Network Management Type

L3

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-SR/LR, IEEE802.3x

Forwarding Mode

Store and Forward(Full Wire Speed)

Switching Capacity

598Gbps

Forwarding

Rate@64byte

77.38Mpps

CPU

500MHz

DRAM

2G

FLASH

128M

MAC

32K

Buffer Memory

32M

Jumbo Frame

9.6K

LED Indicator

System: SYS (Green), Network:Link (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)

Reset Switch

Yes, press and hold the switch for 10 seconds and release it to restore the factory settings

PoE & Power Supply

PoE Port

Port 1 to 8

PoE Management

PoE working status

Delay start of power supply

PoE output priority configuration

Scheduling of PoE operation and time

Total power limit of PoE power supply

PoE output power allocation, on/off & af/at

Power Supply Pin

1/2 (+) 3/6 (-)

Max Power Per Port

30W, IEEE802.3af/at

Power Consumption

Standby<15W, Full load af<120W,at<240W

Working Voltage

DC48-57V, 6 Pin industrial Phoenix terminal, support anti-reverse protection.

Power Supply

No, optional 48V/120W or 48V/240W industrial power supply

Physical Parameter

Operation TEMP / Humidity

-40~+80°C, 5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+85°C, 5%~95% RH Non condensing

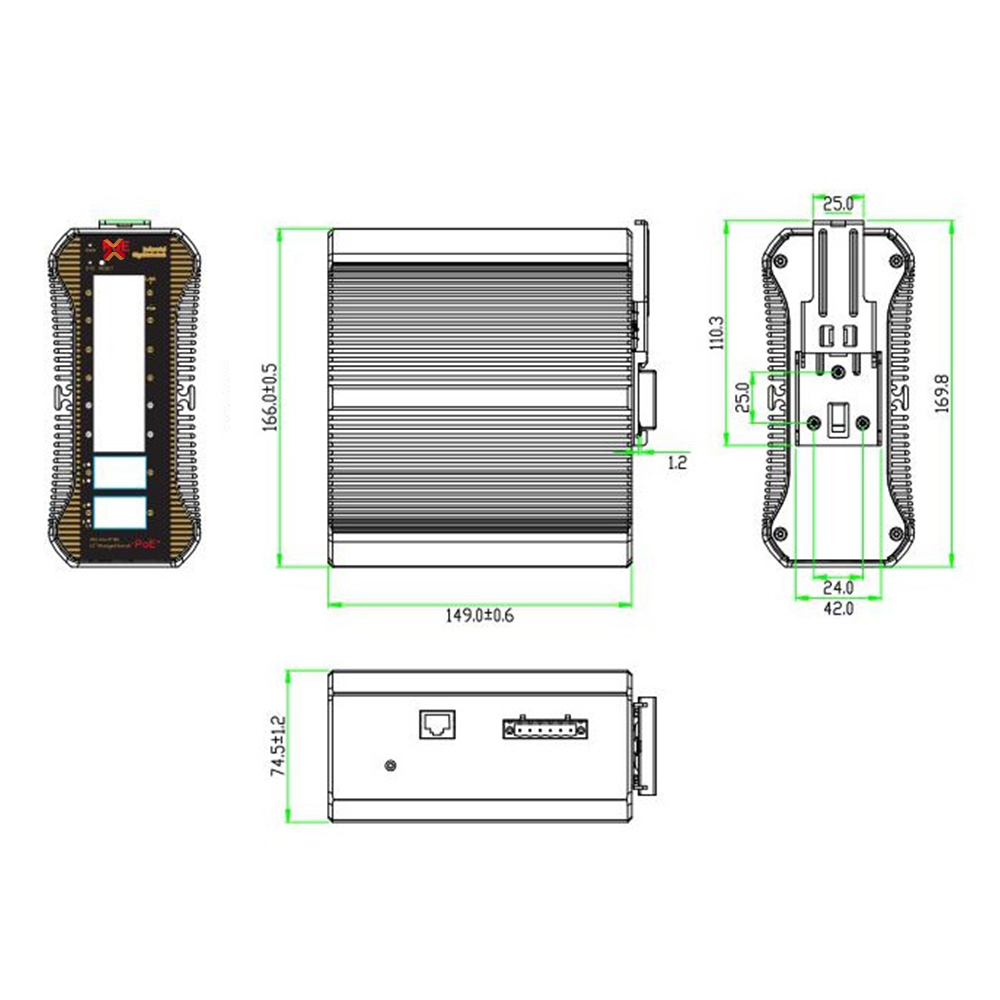

Dimension (L*W*H)

166*150*75mm

Net /Gross Weight

<1.9kg / <2.4kg

Installation

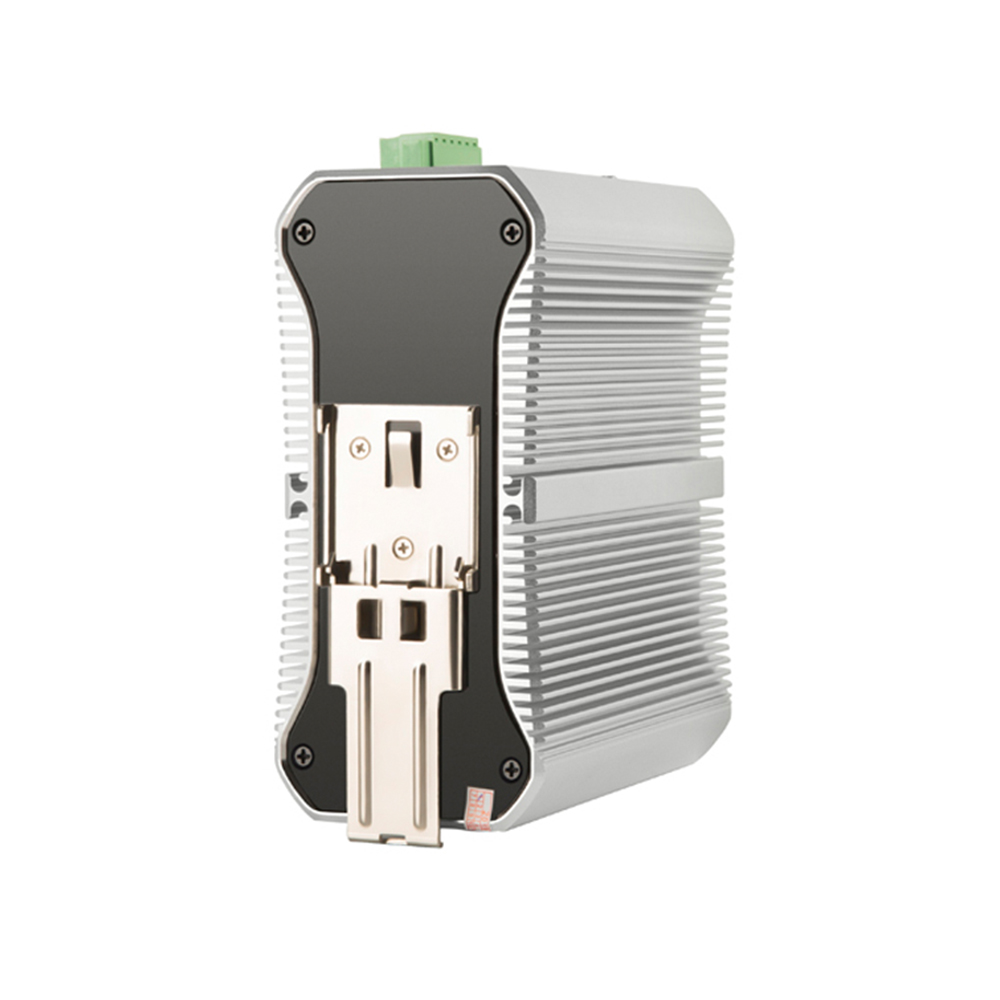

Desktop, 35mm DIN rail

Certification & Warranty

Lightning Protection

Lightning protection: 6KV 8/20us, Protection level: IP40

IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV

IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m  1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022):Class B

IEC61000-6-2(Common Industrial Standard)

Mechanical Properties

IEC60068-2-6 (anti vibration)

IEC60068-2-27 (anti shock)

IEC60068-2-32 (free fall)

Certification

CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS

Warranty

5 years, lifelong maintenance.

Network Management Features

Interface

IEEE802.3X (Full-duplex)

Port temperature protection setting

No connection port automatic sleep

Port green Ethernet Energy-saving setting

Broadcast storm control based on port speed

SFP+ optical port DDMI real-time digital diagnosis

The speed limit of the message flow in the access port, minimum particle size is 64Kbps.

Layer 3 Features

IPV4 Equal Cost Routing

NG protocol, maximum 1000 entries

ARP protocol, maximum 1000 entries

Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6

IPV4/IPV6 VRRP, the maximum group is 255

IPV4/IPV6 VLANIF interface supports up to 128

IPV4/IPV6 static route/default route supports up to 128 entries

IPV4 dynamic routing, RIPv1/v2, OSPFv2, BGP4+, 4000 routing entries

IPV6 dynamic routing OSPFv3, BGP+, RIPng, IPV6 management, 1000 routing entries

L3 network management function, IPV4/IPV6 dual-stack management

Layer 3 routing and forwarding, support communication between different network segments and different VLANs

VLAN

Voice VLAN, QinQ configuration

4K VLAN based on port, IEEE802.1q

Port configuration of Access, Trunk, Hybrid.

VLAN based on MAC, VLAN based on the protocol

Port Aggregation

LACP, Static aggregation

Max 8 aggregation groups and 8 ports per group.

Spanning Tree

STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)

Industrial Ring Network Protocol

G.8032 (ERPS), Recovery time less than 20ms

250 Ring at most, Max 250 devices per ring.

Multicast

MLD Snooping v1/v2,Multicast VLAN

IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out

Port Mirroring

Bidirectional data mirroring based on port

QoS

Flow-based Rate Limiting

Flow-based Packet Filtering

8*Output queues of each port

802.1p/DSCP priority mapping

Diff-Serv QoS,Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL

Port-based Issuing ACL,ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.

Security

IP-MAC-VLAN-Port binding

ARP inspection,Anti-DoS attack

AAA & RADIUS,MAC learning limit

Mac black holes,IP source protection

IEEE802.1X & MAC address authentication

Broadcast storm control,Backup for host datum

SSH 2.0,SSL,Port isolation,ARP message speed limit

User hierarchical management and password protection

DHCP

DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay

Management

CPU instant utilization status view

One-key recovery, Cable Diagnose, LLDP

Console /AUX Modem /Telnet /SSH2.0 CLI

Web Management (HTTPS), NTP, System work log, Ping Test

Download & Management on FTP, TFTP, Xmodem, SFTP ,SNMP V1/V2C/V3

XentinoNMS-Smart Network Management System Platform (LLDP+SNMP)

System

Category 5 Ethernet network cable

Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later.

TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network
