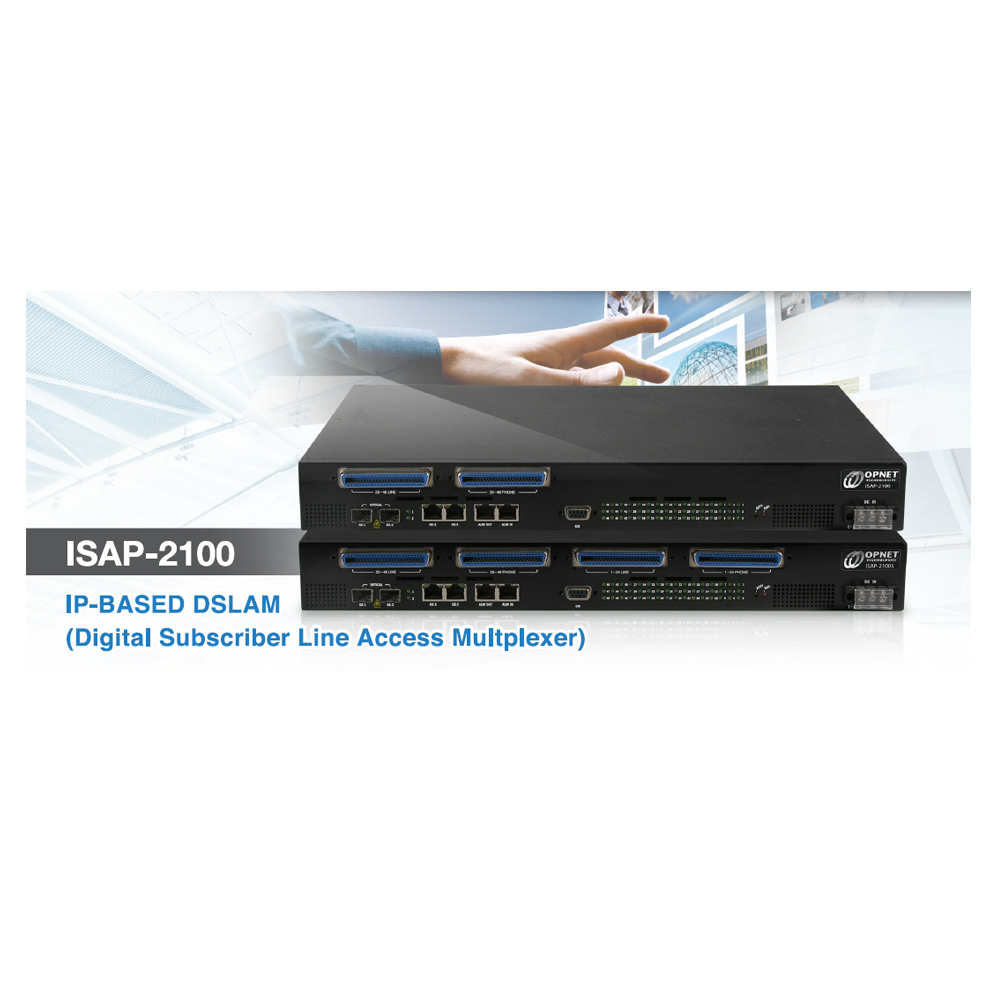

OpNet ISAP-2102S 24Port ADSL2+ Standalone IPDSLAM

OpNet ISAP-2102S 24Port ADSL2+ Standalone IPDSLAM

OPNET

OpNet ISAP-2102S 24Port ADSL2+ Standalone IPDSLAM yeni nesil teknolojilere uyumlu ADSL/ADSL2 ve ADSL2+ erişim desteğine sahip DSL konsantratördür. Bakır altyapı üzerinden, daha esnek, daha geniş, entegre servisleri çalıştırmak için en ideal çözümdür. 24 adet ADSL2+ hat sunar. Splitter mevcuttur. Beraberinde 2xRJ21 Kablo Alınmalıdır.

OpNet ISAP-2102S 24Port ADSL2+ Standalone IPDSLAM yeni nesil teknolojilere uyumlu ADSL/ADSL2 ve ADSL2+ erişim desteğine sahip DSL konsantratördür. Bakır altyapı üzerinden, daha esnek, daha geniş, entegre servisleri çalıştırmak için en ideal çözümdür. 24 adet ADSL2+ hat sunar. Splitter mevcuttur. Beraberinde 2xRJ21 Kablo Alınmalıdır.

IP based DSLAM
(Digital subscriber line access Multiplexer)

The ISAP-2100 Series is an advanced IP-based DSLAM that can be used by service providers interested to offer broadband multi-service features. It enables high bandwidth, high quality data and voice transmission for applications such as multimedia and video streaming, interactive paid TV channels, online gaming, video conferencing, telecommunication, VoIP and distance learning, etc...

FEATURES

  • Compact design in nearly one RU Height unit
  • Compact design in nearly one RU height unit
  • Service capacity expansion via units stacking
  • Two 100/1000Base Combo Gigabit Ethernet uplink network interfaces
  • 24/48-ADSL2+ ports with or without built-in POTS Splitter
  • Non-blocking switching fabric and wire-speed switching capability
  • On board LEDs for system status indications
  • Dual power supply modes, DC and AC
  • High reliability design
  • SELT Subscriber Loop testing
  • Subscriber traffic isolation among ADSL2+ line ports
  • Subscriber rate limiting
  • Configurable mapping between VLAN tag and ATM PVC RFC 2684 multi-protocol over AAL5, RFC 2516 PPPoE packet forwarding
  • QoS for IEEE 802.1p priority queues
  • OAM F5 fault diagnostic
  • IEEE 802.1D spanning tree bridging
  • IEEE 802.1Q VLAN tagging
  • IEEE 802.3ad link aggregation on network interface
  • IGMP snooping/proxy
  • Windows based and GUI management system with different user access levels
  • Remote system configuration by using Telnet, SNMP v1/v2c management
  • In-band management channel

SPECIFICATIONS

Gigabit Ethernet Interface



Subscriber Line Interface



Interface Connection



Standard Compatibility

  • Two 100/1000Base Combo uplink interfaces (electrical and optical)
  • The throughput at least 80,000 packets per second for 1518 bytes packet size both upstream and downstream.
  • Cascading connection for multi-system application
  • 24/48-port ADSL2+ Subscriber line which enables multimedia services.
  • Consolidates ADSL, ADSL2, and ADSL2+ connection interfaces with max. of 24Mbps down stream and 3Mbps up stream.
  • Loop test supported (SELT)
  • Up to 8 VPC/VCC per ADSL port
  • Impulse noise protection
  • RS-232 Female DB-9 for Console Management access interface
  • 2xRJ-45+2*SFP for Network uplink interface
  • 2xTelco50 for ADSL Subscriber interface
  • 2xTelco50 for POTS line Subscriber interface (in ISAP-2100S)
  • 2xRJ-45 for Alarm I/O contacts
  • In-band Network Managament
  • ITU-T Rec.G.992.1, G.992.2, G.992.3 and G.992.5 with Annex A, G.994.1, G.997.1, ANSI T1.413 Issue 2


Application Services

  • Static IP service at bridge mode
    • It associates the incoming traffic and tag the VLAN ID to switching into Layer 2 network.
  • PPPoE Services
    • Provides effective way to summarize the assigned subscribers among different ISPs.
  • DHCP Services
    • Assigns a DHCP server for centralize IP manage under bridged mode.
  • Video on Demand Services
    • Supports multicasting with stream channels by enable IGMPv2 snooping function and supports up to 256 multicast groups per set.
    • Supports Multicast VLAN Registration(MVR)
  • VLAN Pass-through Services
    • Under bridged mode, it allows subscriber deployed their own VLAN ID to associate in the network.
  • VPN Pass-through Services
    • Supports tunneling mechanisms service like IPSec. L2TP, and PPTP for VPN pass-through application under bridged mode.
  • Subrack / Models
    • Dimensions: 436mm x 320mm x 44.5mm (WxDxH)
    • 19' rack mountable pizza box in nearly 1U height

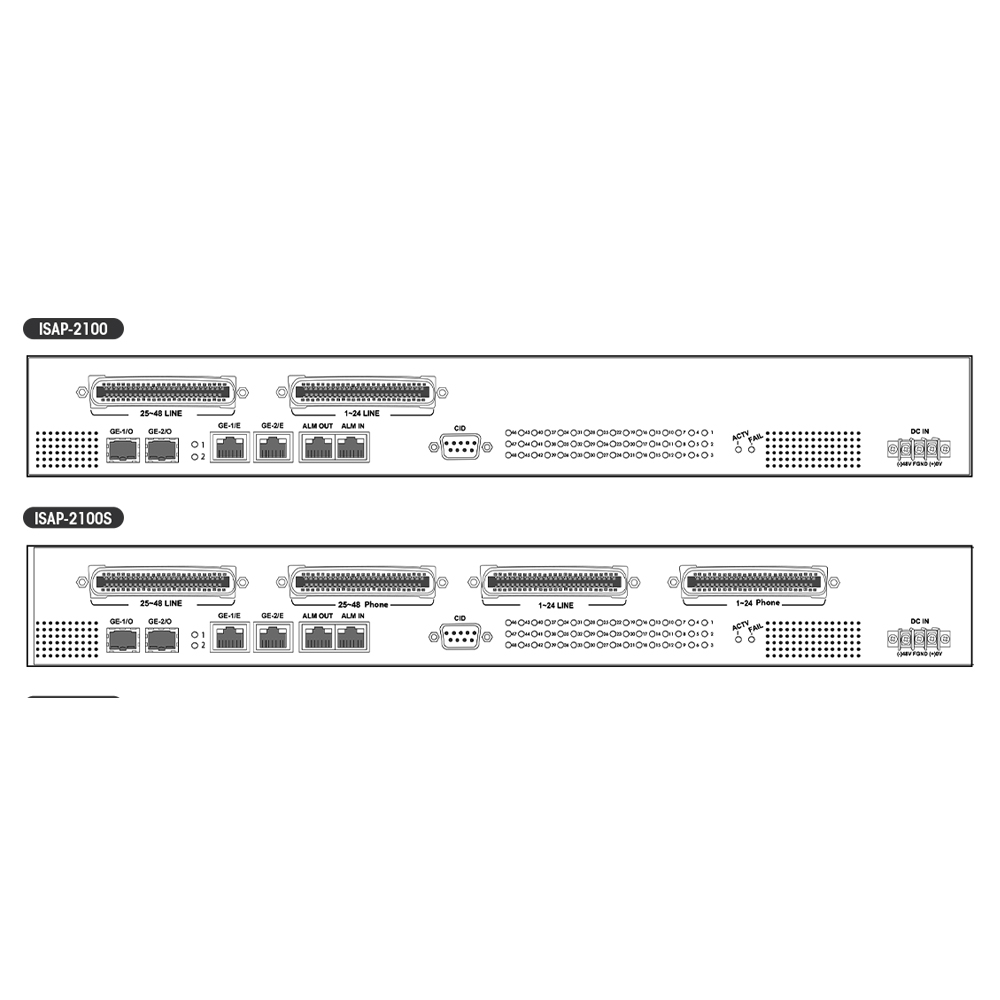

    • ISAP-2100 Series consists of four models:
      • ISAP-2100: 48 ports ADSL2+ IP-DSLAM.
      • ISAP-2100S: 48 ports ADSL2+ IP-DSLAM with built-in splitters.
      • ISAP-2102: 24 ports ADSL2+ IP-DSLAM.
      • ISAP-2102S: 24 ports ADSL2+ IP-DSLAM with built-in splitters









Bu ürüne ait özellikler veritabanımızda bulunmamamktadır.

ISAP-2100 Datasheet
