Billion MX-221P 4G/LTE Triple-SIM VPN Router is a compact affordable and high-performance fixed 4G/LTE VPN Router with flexible options for multi-SIM or multi-WAN failover. It assigned specific interface for uninterrupted Internet services, priority or conditional failover among mobile carriers.

The BEC MX-221P is a high-performance 4G/LTE Router integrating Triple-SIMs interfaces with Auto-Carrier Detect and Select, Dual Gigabit Ethernet and Power over Ethernet (PoE). Unique to BEC, the MX-221P automatically detects and measures the signal level and quality of your connection and selects the carrier priority and failover order. Alternatively,  you can create your own pre-defined selection based on preference or rate plans.

The MX-221P is highly configurable supporting seamless integration into any network deployment while providing advanced functionality such as Automatic Failover, IP Passthrough, Load Balancing, Dynamic Routing, VPN Termination, and VRRP. A versatile and feature-rich platform, the BEC MX-221P is a best-in-class solution for organizations seeking a rapidly deployable, highly scalable solution combining enterprise-grade router functionality with flexible LTE connectivity at a competitive price.

• Triple SIM with Auto Carrier Detect and Select
  Automatically detects and measures the signal level and quality of your connection before selecting carrier connection priority and  failover order
• Manage Data Usage
  Monitor cellular data usage and prevent data-overage charges, automatic carrier/SIM failover when the active SIM reaches its data cap,
• Automatic Failover
  Actively monitors primary connection for fully automated failover ensuring “Always-On” Connectivity minimizing disruption and network downtime
• Multi-WAN Connectivity
  Multiple WAN paths for the primary or secondary connection across 4G/LTE and EWAN Interfaces
• Advanced Networking
  Drop into any network with support for IP Passthrough, Dynamic Routing, VPN, Load Balancing, VRRP, QoS, VLAN, and IPV6
• Power Over Ethernet (PoE)
  Enabling flexible deployment in locations without convenient access to power, redundant power options or optimal placement

Network Certification: AT&T, T-Mobile (PTCRB), Verizon, and US Cellular

Availability and Resilience

• Dual-WAN ports (4G & Ethernet WAN)
• Load balancing – Maximizing bandwidth of outbound traffic
• Automatic failover and fallback

Supported Frequency Bands

• 4G/LTE: FDD (Cat.4)
  Uplink (UL) & Downlink (DL) in MHz
  B2 (1850–1910 UL | 1930–1990 DL)
  B4 (1710–1755 UL | 2110–2155 DL)
  B5 (824–849 UL | 869–894 DL)
  B12 (699–716 UL | 729–746 DL)
  B13 (777–787 UL | 746–756 DL)
  B14 (788–798 UL | 758–768 DL)
  B66 (1710–1780 UL | 2110–2200 DL)
  B71 (663–698 UL | 617–652 DL)
• WCDMA: B2, B4, B5
• Peak downlink speeds up to 150Mbps and peak uplink speeds up to 50Mbps
• LTE Maximum Output Power: 23dBm±2dB
• Web-based GUI for Configuration and Management Center

Network Protocols and Features

• IPv4, IPv6, IPv4 / IPv6 dual stack
• IP Tunnel IPv6 in IPv4 (6RD)
• IP Tunnel IPv4 in IPv6 (DS-Lite)
• NAT, static routing and RIP-1/2
• Universal Plug and Play (UPnP) compliant
• Dynamic Domain Name System (DDNS)
• Virtual server and DMZ

Firewall

• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering, URL Filtering
• Password protection for system management
• VPN Passthrough

Quality of Service Control

• IEEE 802.1Q VLAN
• Bandwidth Management
• Outbound Load Balancing (Round Robin, Weight, or IP Hash)

Secured VPN (Optional)

• IPSec, PPTP VPN Tunneling
• L2TP over IPSec VPN Tunneling
• Embedded PPTP / L2TP / IPSec Client and Server
• IKE Key Management
• MPPE Encryption for PPTP
• IPsec DES, 3DES, and AES encryption
• GRE and OpenVPN

Dynamic Routing Protocols (Optional)

• BGP and OSPF

Management

• Quick Installation Wizard
• Web-based GUI for remote and local management
• Syslog monitoring
• Firmware upgrade and configuration data upload and download via web-based GUI
• Supports DHCP server/client/relay
• TR-069 supports remote management
• BECentral® Cloud Management
• Support SNMP

Physical Interface

• 3G/4G LTE: Two (2) SMA Female Connectors
• Power On/Off Button
• Power Source: DC or PoE
• Reset Button
• Ethernet LAN: 2-port 10/100/1000Mbps auto-crossover (MDI/ MDI-X) switch – 2 x Versatile Port
  LAN1 / PoE-PD
  LAN2 / EWAN
• SIM Card: Three (3) 2FF mini-SIM slots

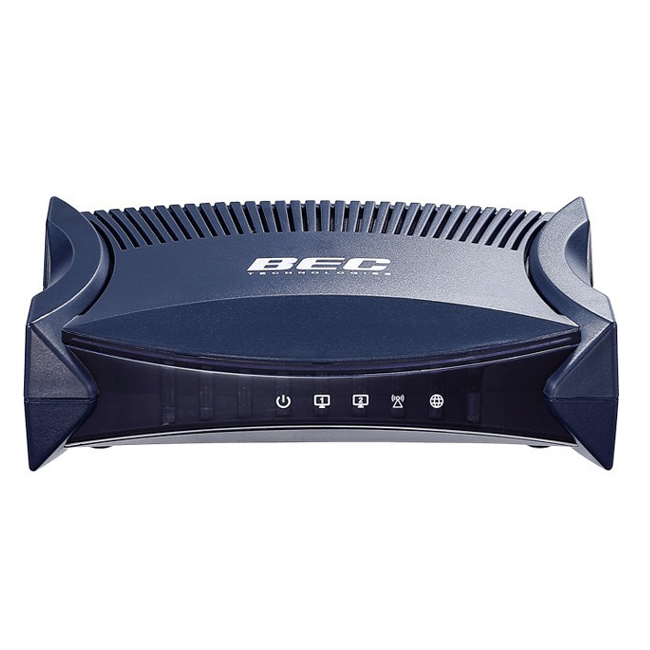

• LED Indicators: Power / Ethernet 1-2 / LTE Signal Strength / Internet

Power Specifications

• Input: DC 12V 1.2A or PoE-PD (802.3at PD compliant (25.5W)

Physical Requirements

• Dimensions: 5.19″(W) x 1.38″(H) x 3.71″(D) (132mm x 35 mm x 94 mm)

Operating Environment

• Operating temperature: 0° to 40° C (32° to 104° F)
• Humidity: 20 ~ 95% non-condensing
