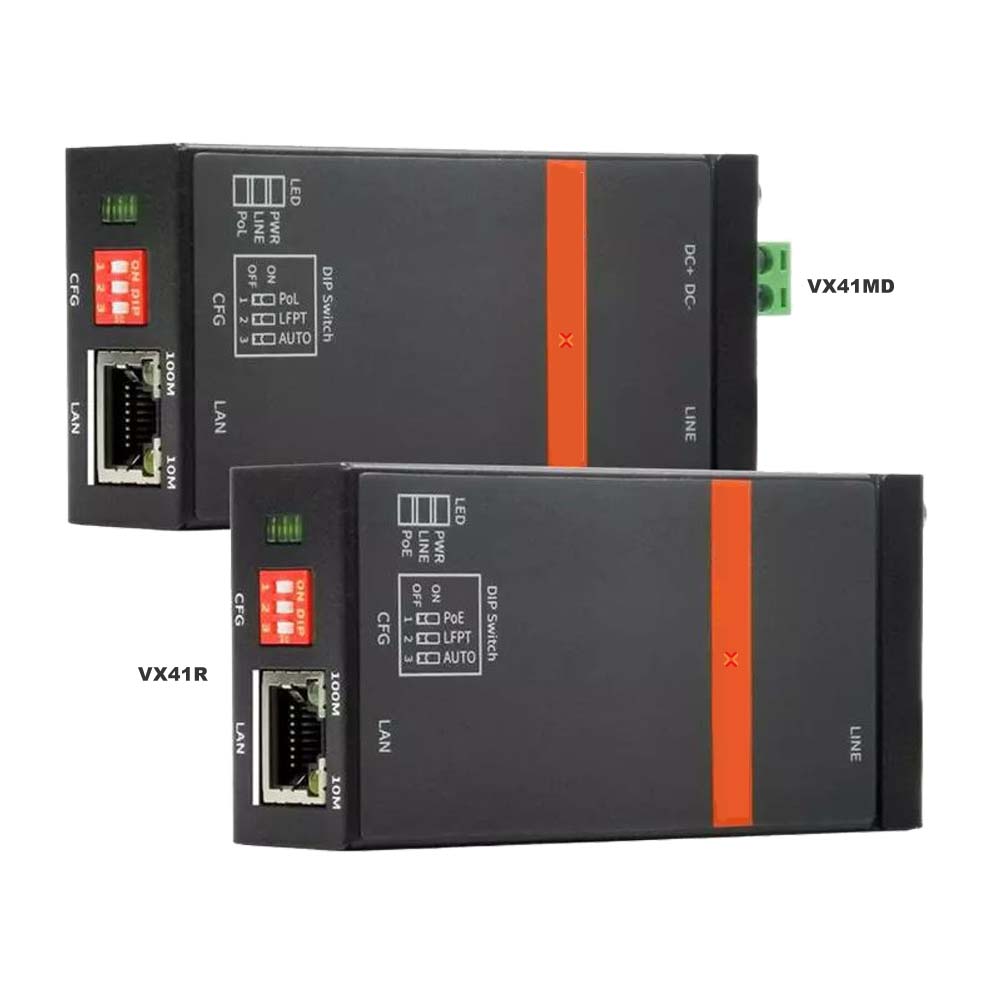

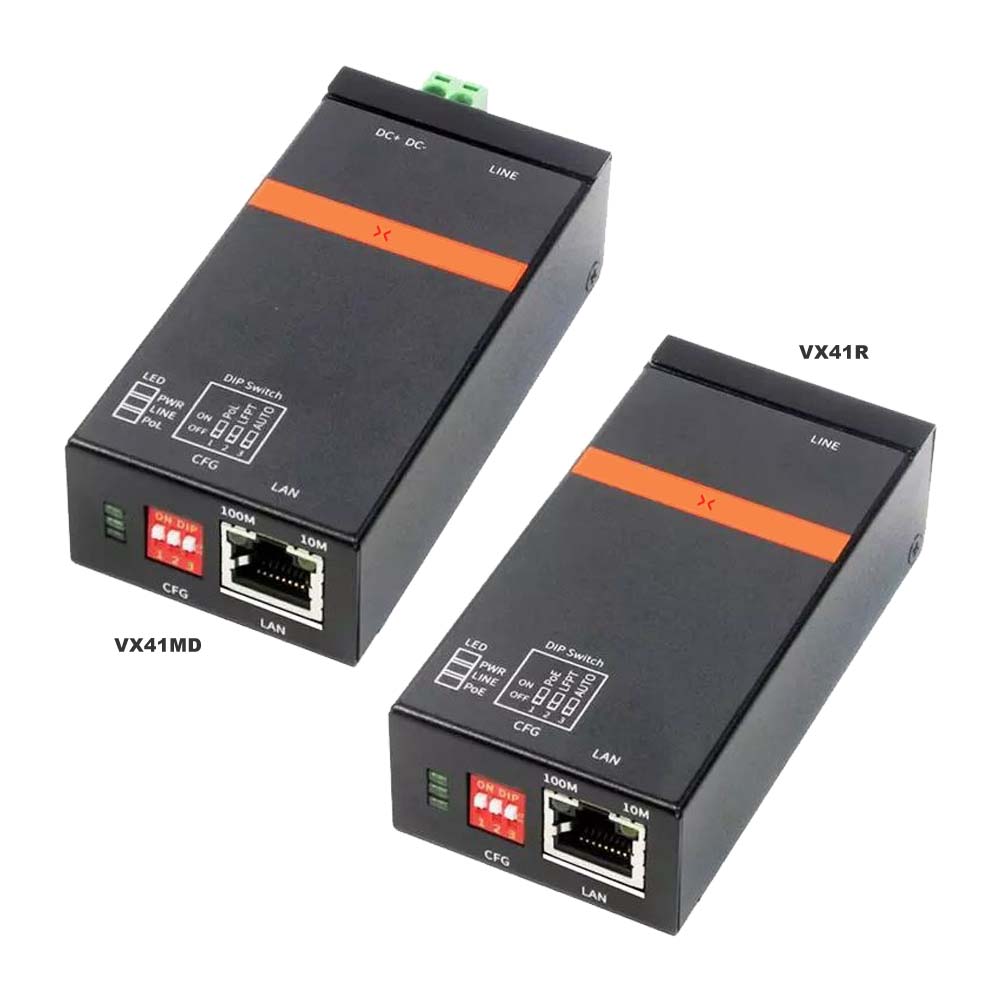

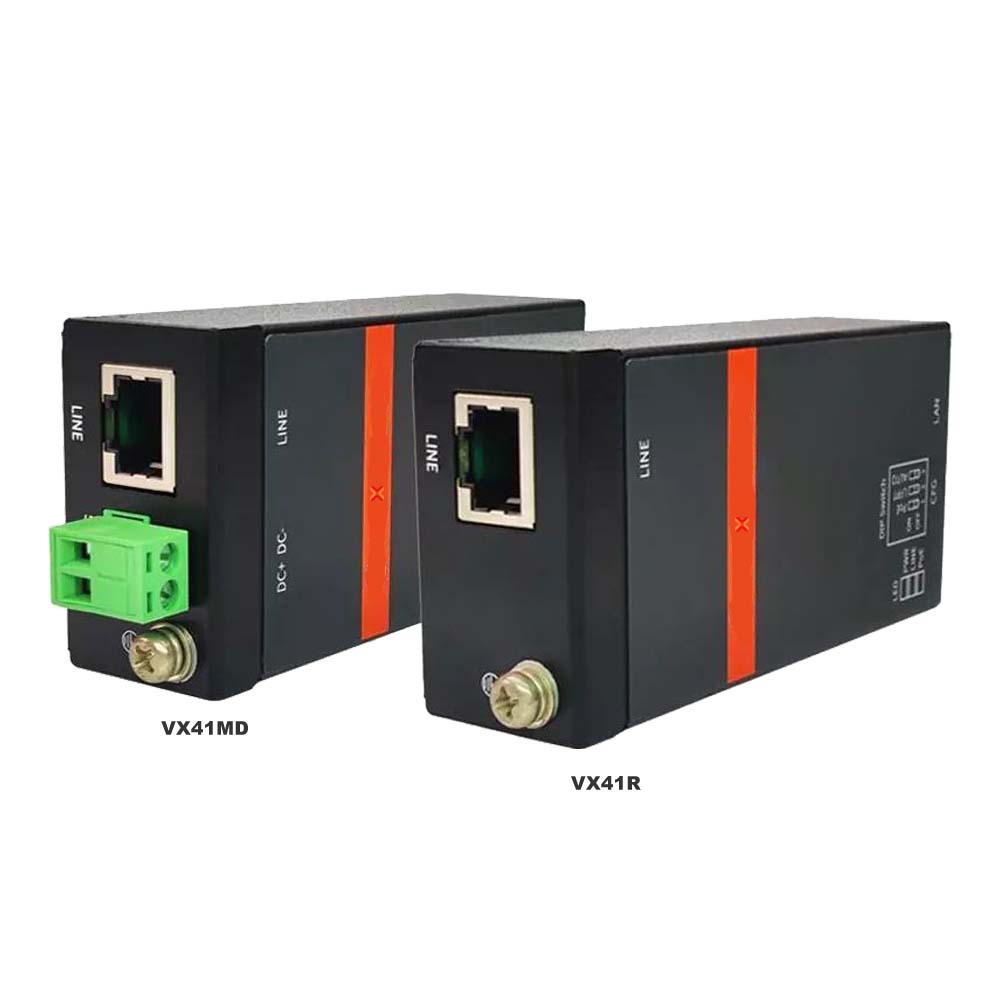

Xentino VX41MD/VX41R Long Reach PoE Ethernet Extenders provide a pair of plug-n-play solution for carrying Ethernet traffic and power over Ethernet cables up to 800 meters.

PRODUCT OVERVIEW

The VX41MD and VX41R Long Reach PoE Ethernet Extenders provide a pair of plug-n-play solution for carrying Ethernet traffic and power over Ethernet cables up to 800 meters.

To make installation easy, the VX41MD and VX41R are designed to locate at Ethernet network sides. Without  the  needs  of  redundant  long-distance power  cabling,  VX41R receive the power from the VX41MD and offer 802.3at Power-over-Ethernet for the remote devices such as IP cameras.

With the intelligence of built-in LFPT (Link Fault Pass Through) function in each device, the network administrator is enabled to monitor the link status easily, or turn on and off an IP camera remotely from the control center for eliminating the maintenance time and costs.

KEY FEATURES

• Ethernet over UTP cable up to 800 meters
• Eliminate long distance power cabling
• Industrial design for harsh environments
• 6KV surge protection
• EN50121-4 compliant for Railway trackside
• Plug-n-Play simple installation
• Remote link monitoring and power-on/off IP camera

​

APPLICATION

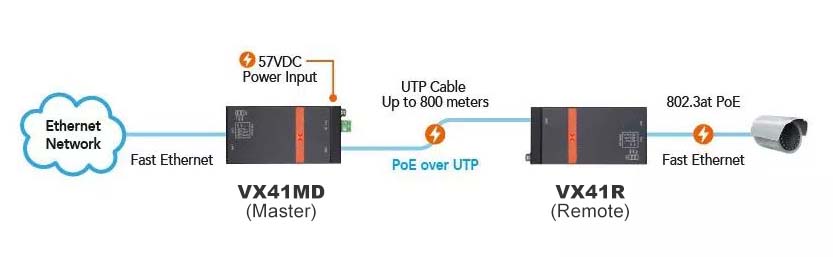

The Industrial Ethernet Extenders VX41MD and VX41R work as a pair of Ethernet-over-UTP Extenders that the VX41MD is the Master role and the VX41R is the Remote role. Connectivity between the Master and Remote is as simple as regular Ethernet, an off-the-shelf AC-to-DC power supply powers the Master at 57VDC which is suggested to offer Passive PoE over a long-distance cable and then the Remote device offers standard PoE to power the IP camera.
