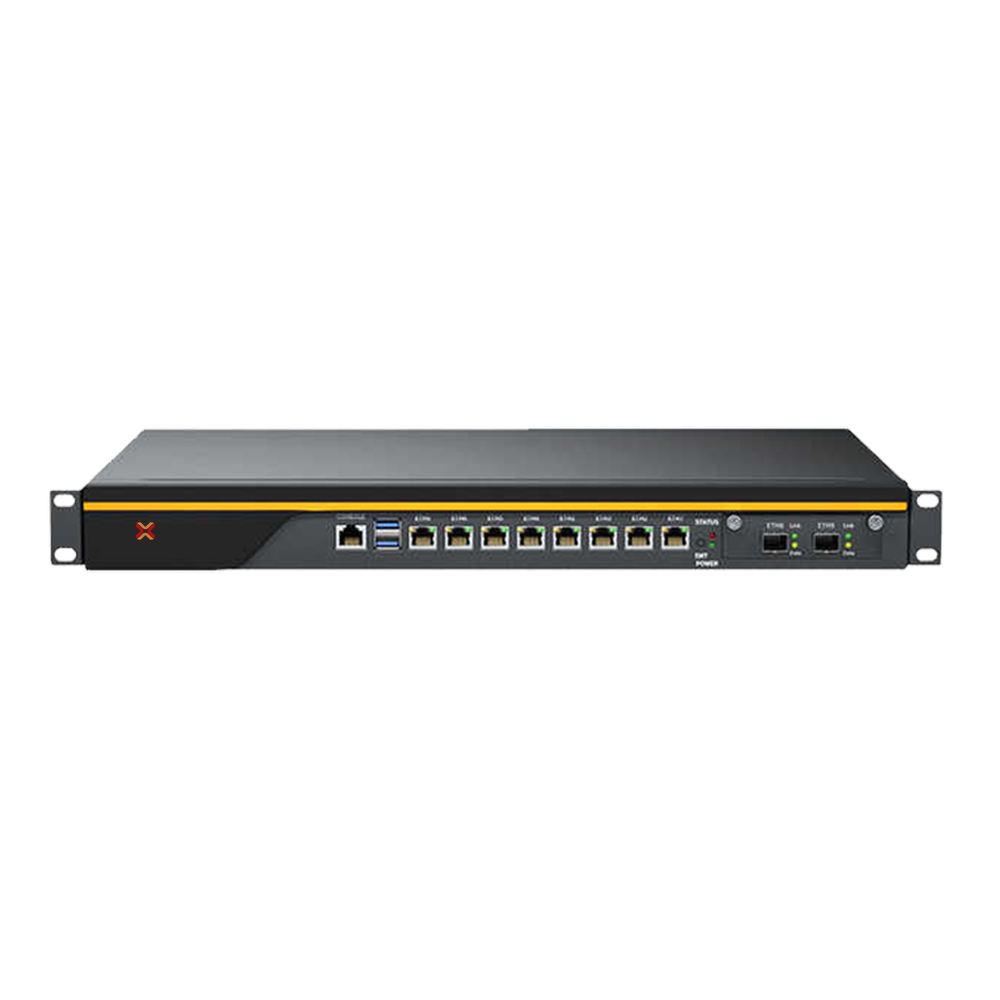

Xentino TR208 8x2.5Giga Ethernet 1U Appliance
Xentino TR208 1U PC Cihazı, güvenlik duvarı, yönlendirici veya SDWAN cihazı gibi kurumsal uygulamalar için tasarlanmıştır. Intel I7 8700 serisi CPU, 16GB DDR4, 256GB SSD, 2xUSB 3.0, 1xVGA, 1xConsole, 8x2.5G(Intel i226V) ve 2x10G(Intel 82599)SFP+ port ile donatılmıştır.
Main Features
Memory & Storage
Memory types : 16GB DDR4 (MAX 64GB)
Storage : 1* mSATA 256G SSD, 1* M.2 2280 Nvme/NGFF SSD support 2.5inch SATA HDD
Faster Running Speed
Equipped with Intel Core I7 8700 6*Cores, 12*Threads, 12M Cache, 3.2 to 4.6Ghz. Powerful hardware makes it run more stable.
Ethernet Interfaces
Equipped with 8x2.5G Ethernet Interface (Intel I226-V) and 2x10G SFP+ (Intel 82599) Ports.
Rich I/O Interfaces
Equipped with 1xVGA (HDMI is Optional) Interface, 2xUSB3.0 Interfaces, 1xConsole and the Ethernet Interfaces.
OS Support
Supports most using Windows and different Linux Operating Systems types. It supports PFSense.
Enviromental Support
Wide range working tempature powerfull 250W PSU. 230*230mm mainboard with a CPU radiator and fan (supports smart temperature control)
|
Specifications |
|
|
Case Color |
Grey |
|
Material |
Metal Case |
|
CPU |
Intel Core I7 8700 6Cores, 12Threads, 12M Cache, 3.2 to 4.6Ghz |
|
Mainboard |
230*230mm mainboard with a CPU radiator and fan (supports smart temperature control) |
|
RAM |
16G, 2* DDR4 Memory slot up to 64G |
|
Storage |
1* mSATA 256G SSD, 1* M.2 2280 NVme/NGFF SSD support 2.5inch SATA HDD |
|
Display |
1*VGA (HDMI optional) |
|

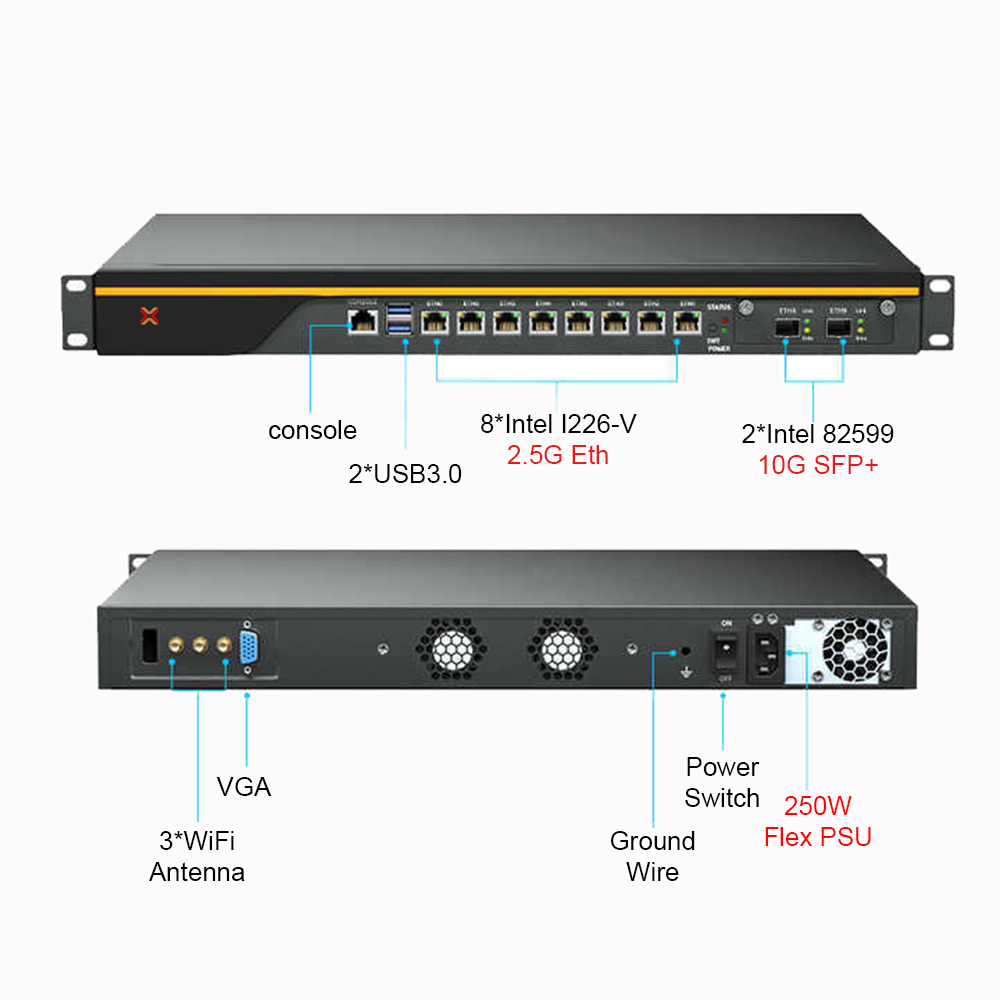

I/O |
2*USB3.0 |
|
1*VGA |
|
|
2*LED (power supply, hard disk indicator) |
|
|
8* RJ45 LAN Ports +1* Console Port + 2*10G SFP Ports |
|
|
1*Power LED |
|
|
1*Power Switch |
|
|
1*AC Power Jack |
|
|
Network Card |
8*Intel I226-V 2.5G Ethernet 2*Intel 82599 10G SFP+ Port Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN |
|
Expansion |
1*Mini PCIE slot for WiFi Module (optional) 1* Mini PCIE slot for 4G Module (SIM) (optional) |
|
Watch Dog Timer |
Support |
|
Power Supply |
250W Flex PSU |
|
Operating System |
Windows, Linux, Pfsense |
|
Working Temperature |
-10°C - 60°C |
|
Working Humidity |
0% - 95% relative humidity, Non-condensing |
|

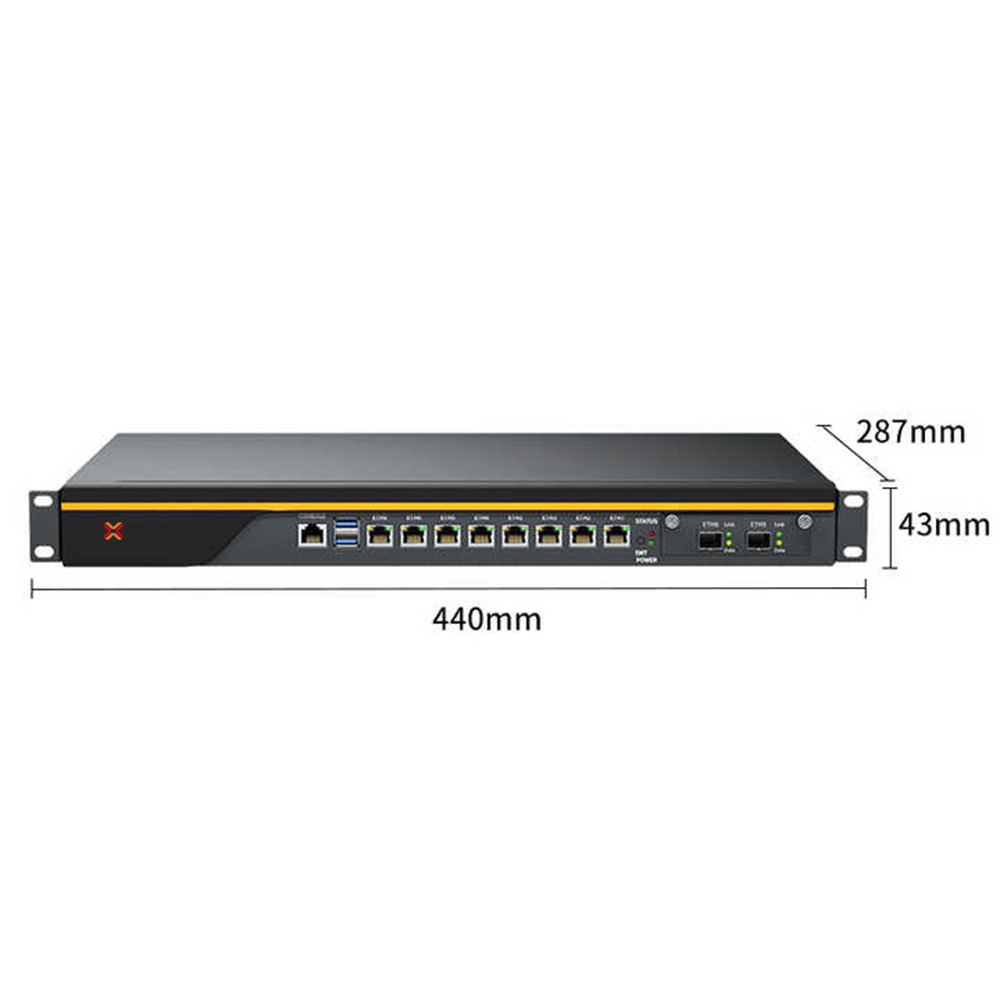

Dimensions (cm) |
Device size 44*25*4.45cm Single package size 52.2*12.5*37.5cm |
|
Weight (kg) |
4.75kg/CTN |
