Ürün Bilgileri

Processor

Processor Model

Intel Atom® C3558R

Processor Architecture

X.86 64-bit

Processor Frequency

Quad Core 2.4 GHz

CPU Single-Core Score

/

Hardware Encryption Engine

√

Hardware Transcoding Engine

/

Memory

System Memory

8 GB DDR4 non-ECC SODIMM

Pre-installed Memory module

8 GB DDR4 non-ECC SODIMM (1x 8GB)

Total Memory Slot Number

2 (DDR4 SODIMM)

Maximum Supported Memory

32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM

Note

TerraMaster reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Disk Slot Number

12

Compatible Drive types

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Maximum Internal Raw Storage Capacity

240TB (20TB x12) (Capacity may vary by RAID types)

Drive Hot Swap

√

Note

 . Hard drive vendors will release their latest models of hard drives, and Maximum internal raw storage capacity may be adjusted accordingly.

. The maximum single volume size is not directly related to the maximum raw capacity.

File System

Internal Drive

Btrfs, EXT4

External Drive

EXT3, EXT4, NTFS, FAT32, HFS+

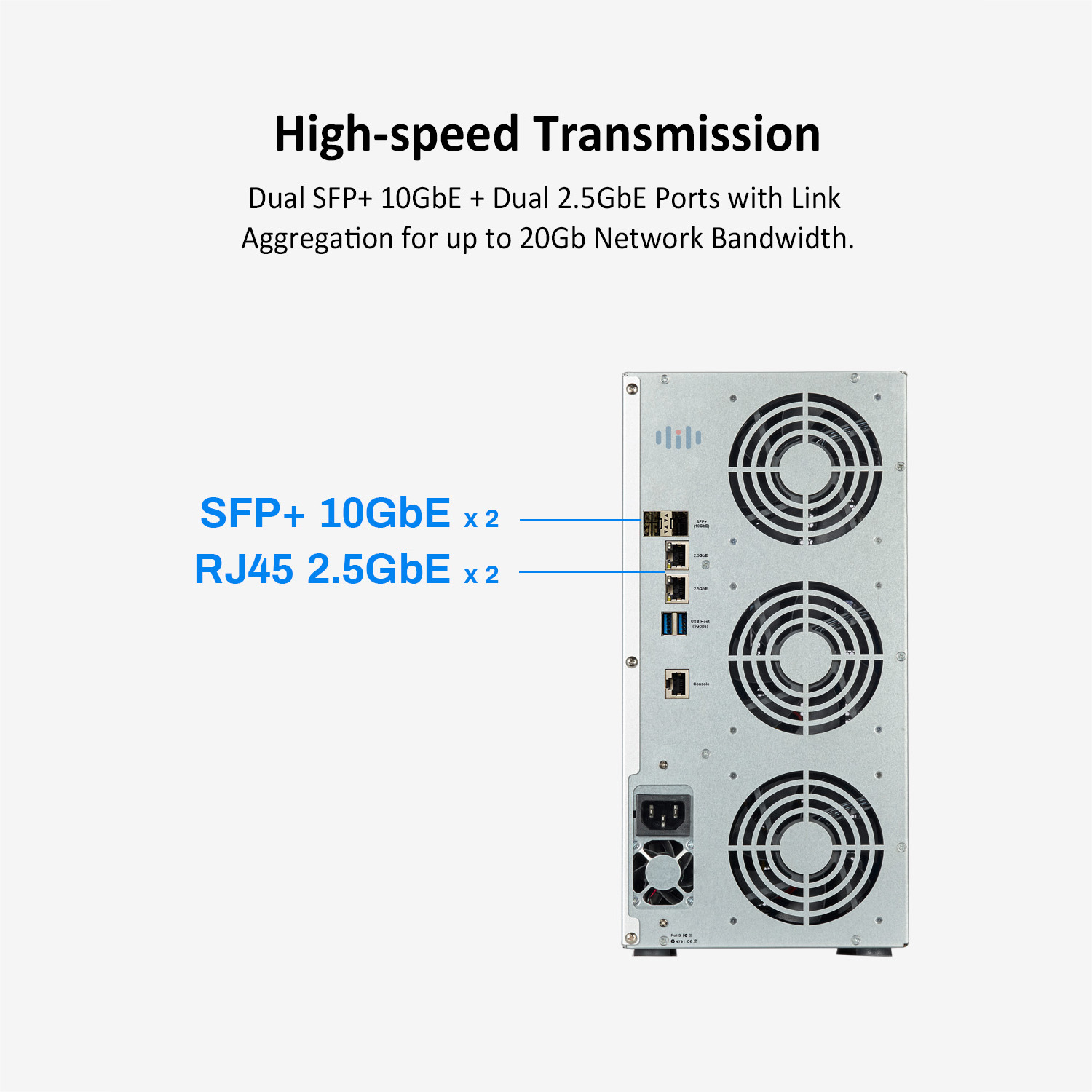

External Ports

RJ-45 1GbE Network Jack

/

RJ-45 2.5GbE Network Jack

2

RJ-45 10GbE Network Jack

/

SFP+ 10GbE Network Jack

2

USB3.1 Host Port

2(5Gbps)

USB2.0 Host Port

/

Console Port

1

HDMI

/

VGA

/

PCIe Slots

/

M.2 2280 NVMe Slot

2

Appearance

Size (H*W*D)

334 x 163x 295 mm

Packaging Size (H*W*D)

437*235*370  mm

Weight

10.3 kg

Others

System Fan

80 x 80 x 25mm  3PCS

Fan Mode

Smart, High speed, Middle speed, Low speed

Noise Level

31.4 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state)

Power Supply

500 W

Redundancy Power Supply

/

AC Input Voltage

100V - 240V AC

Current Frequency

50/60 Hz, Single frequency

Power Consumption

95 W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state)

33 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)

Limited warranty

2 years

Certificate

FCC, CE, CCC, KC

Environment

RoHS, WEEE

Temperature

Working Temperature

0°C  ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-5°F ~ 140°F)

Relative Humidity

 5% ~ 95% RH

Package Contents

Host unit (x1)

Power cord (x1)

RJ-45 network cable (x1)

Quick Installation Guide (x1)

Limited Warranty Note(x1)

Screws(a few)

TOS Features

OS Supported

Supported Client OS

Windows OS, Mac OS, Linux OS

Supported Web Browsers

Google Chrome 97.0.xxxx, Mozilla Firefox 9.3,Apple Safari 12.1 ; Microsoft Edge 99.0.xx or later version.

Supported mobile OS

iOS14.0, Android 10.0 or later version

Storage Management

Supported RAID Types

TRAID, Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10

Maximum Internal Volume Number

256

Maximum iSCSI Target

128

Maximum iSCSI LUN

256

Volume Expansion with Larger HDDs

TRAID, RAID 1,RAID5,RAID 6,RAID10

Volume Expansion by Adding a HDD

TRAID, RAID5,RAID6

RAID Migration

√

SSD Cache

√

Hot Spare

√

SSD TRIM

√

Hard Drive S.M.A.R.T.

√

Seagate IHM

√

NVRAM write cache(BBU-protected)

/

Shared Folder Snapshot

√

LUN Snapshot

/

File Services

File Protocol

SMB/AFP/NFS/FTP/SFTP/WebDAV

Maximum Concurrent SMB/AFP/FTP/SFTP Connections

500

Windows Access Control List (ACL) Integration

√

NFS Kerberos Authentication

√

Account & Shared Folder

Maximum local user's account number

2048

Maximum local group number

512

Maximum shared folders number

512

Maximum shared folders syncing tasks

8

Backup

Rsync Backup

√

Duple Backup

√

Centralized Backup

√

Snapshot

√

USB  Backup

√

Cloud Sync

√

Time Machine Backup

√

File System Snapshot

√

TFM Backup

√

Networking

TCP/IP

IPv4/IPv6

Protocols

CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP

Link Aggregation

√

DLNA Compliance

√

VPN Client

√

VPN Server

√

Proxy Client

√

Proxy Server

/

UPnP/Bonjour Discovery

√

TNAS.online Remote Access

√

DDNS

√

Access Right Management

Batch users creation

/

Import/Export users

√

User Quota Managerment

√

Local user access control for CIFS/SAMBA and FTP

√

Domain Authentication

AD Domain

√

LDAP Client

√

LDAP Server

/

Security

Firewall Protection

√

Account Auto-block Protection

√

AES Volume and Shared Folder Encryption

√

Importable SSL certificate

√

Instant Alert via email, Desktop Notification, Beep

√

RSA 2048 Encryption（TOS 5.0）

√

PAM (Pluggable Authentication Modules)

√

OTP Authentication（TOS 5.0）

√

HyperLock File System（TOS 5.0）

√

Power Managerment

Power Resume

√

Scheduled Power On/Off

√

Wake up On LAN（WOL）

√

UPS Supported

√

Administration

Multi-window, Multi-task System Management

√

Custom Desktop

√

Control Panel

√

Resource Monitor

√

Syslog

√

OS UI Language

English,German, French, Spanish, Italian, Magyar, Chinese,Japanese,Korean，Turkish, Portuguese, Russian

Applications

Application Center

√

iSCSI Target

√

Terra Photos

/

TerraSync

√

Duple Backup

√

CloudSync

√

Centralized Backup

√

USB Backup

√

VPN Server

√

Transmission

√

qBittorent

√

Aria 2

√

Terra Search

√

Deduplication

√

Web Server

√

Clam Antivirus

√

EMBY

√

Multi Media Server

√

Plex Media Server

√

Docker Manager

√

Snapshot

√
