Teltonika TSW202 10Port (8GE PoE+2SFP) Managed L2 Industrial PoE Switch

Teltonika TSW202 10Port (8GE PoE+2SFP) Managed L2 Industrial PoE Switch

Teltonika

TSW202, DHCPv6 istemci desteği ve statik IPv6 yönlendirme gibi ek L3 özelliklerine sahip, L2 yönetilebilir bir PoE ağ anahtarıdır. EtherNet/IP, PROFINET ve MRP dahil olmak üzere birçok endüstriyel protokolü destekler ve uzun menzilli sağlam fiber optik iletişim sağlamak için 8adet Gigabit PoE Ethernet bağlantı noktasına ve 2adet SFP bağlantı noktasına sahiptir.

TSW202, DHCPv6 istemci desteği ve statik IPv6 yönlendirme gibi ek L3 özelliklerine sahip, L2 yönetilebilir bir PoE ağ anahtarıdır. EtherNet/IP, PROFINET ve MRP dahil olmak üzere birçok endüstriyel protokolü destekler ve uzun menzilli sağlam fiber optik iletişim sağlamak için 8adet Gigabit PoE Ethernet bağlantı noktasına ve 2adet SFP bağlantı noktasına sahiptir.

ETHERNET

  • ETH

    Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover

  • Fibre

    2 x SFP ports

  • IEEE 802.3 series standards

    802.3i, 802.3u, 802.3ab, 802.3x

POE OUT

  • PoE ports

    Port 1 - 8

  • PoE standards

    802.3af and 802.3at Alternative B

  • PoE Max Power per Port (at PSE)

    30 W

  • Total PoE Power Budget (at PSE)

    240 W

  • Maximum Ethernet cable length

    100 m

SERVICES

  • EtherNet/IP

    Yes

  • Profinet (class B)

    Yes

  • SNMP V2, V3

    Yes

  • LLDP

    Yes

NETWORK

  • MRP

    MRP client role, MRP manager role

  • L2 features

    Loop protection, Forwarding table, VLAN, STP/RSTP

  • DHCP

    DHCP server, DHCP client

  • Port Settings

    Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring

  • L3 Features

    Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QOS

  • QOS

    Port priority, DSCP priority, 802.1p priority, TOS

  • Scheduling method

    SP/WFQ/WRR

  • Bandwidth control

    Rate limiting, storm control

  • Traffic Shaper

    Port-based shaping

DIAGNOSTICS

  • Tools

    Cable diagnostic, ping, traceroute, nslookup

SYSTEM CHARACTERISTICS

  • RAM

    128MB, DDR3

  • FLASH storage

    16 MB serial flash

FIRMWARE / CONFIGURATION

  • WEB UI

    Update FW from file, check FW on server, configuration profiles, configuration backup

  • FOTA

    Update FW

  • RMS

    Update FW/configuration for multiple devices at once

  • Keep settings

    Update FW without losing current configuration

FIRMWARE CUSTOMISATION

  • Operating system

    TSWOS (OpenWrt based Linux OS)

  • Supported languages

    Busybox shell, Lua, C, C++

  • Development tools

    SDK package with build environment provided

PERFORMANCE SPECIFICATIONS

  • Bandwidth (Non-blocking)

    20 Gbps

  • Forwarding rate

    14.88 Mpps

  • Packet buffer

    512 KB

  • MAC address table size

    8K entries

  • Jumbo frame support

    10000 bytes

POWER

  • Connector

    2-pin industrial DC power socket

  • Input voltage range

    7 – 57 VDC

  • PoE-out input voltage range

    44 – 57 VDC

  • Power consumption

    Idle: < 3 W / Max: 8 W / PoE Max: 248 W

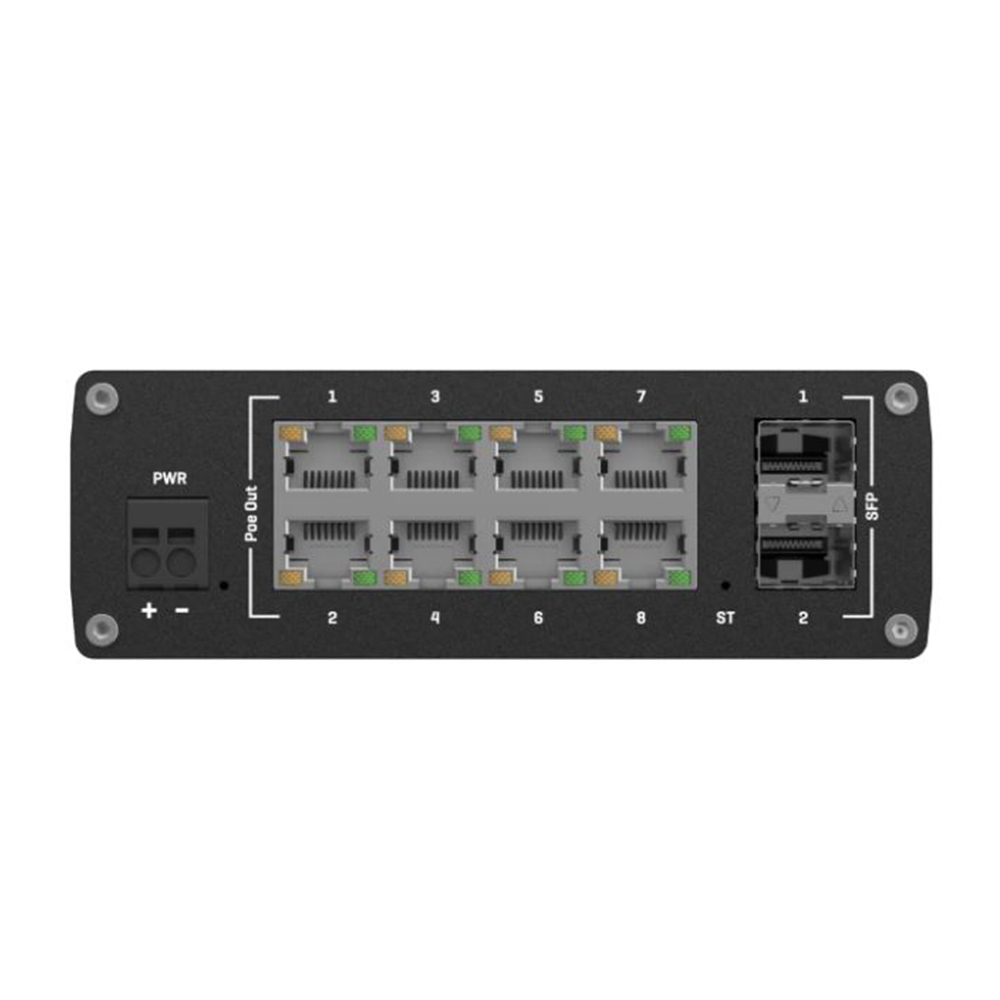

PHYSICAL INTERFACES

  • Ethernet

    8 x RJ45 ports, 10/100/1000 Mbps

  • Fibre

    2 x SFP ports

  • Status LEDs

    1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs

  • Power

    1 x 2-pin industrial DC power socket

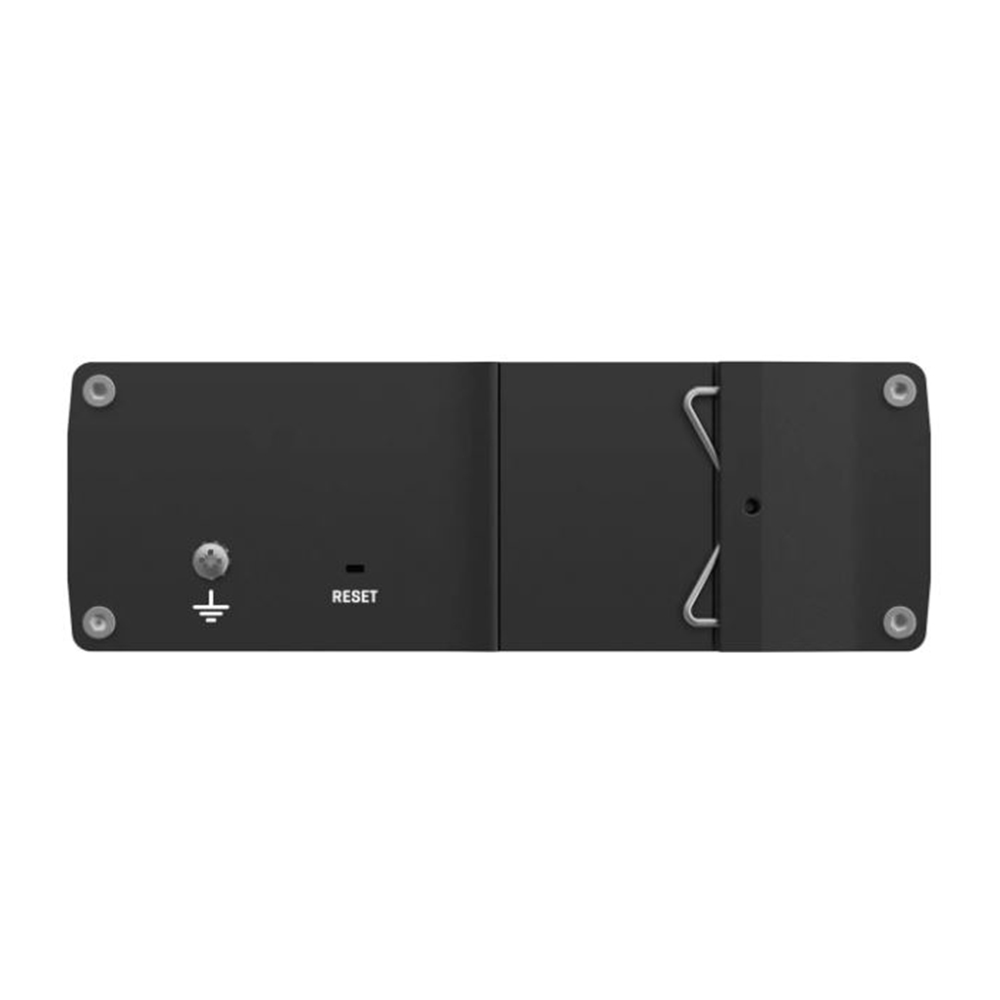

  • Reset

    Software reset button

  • Other


    1 x Grounding screw

PHYSICAL SPECIFICATION

  • Casing material

    Anodized aluminum housing and panels

  • Dimensions (W x H x D)

    132 x 44.2 x 122.2 mm

  • Weight

    610 g

  • Mounting options

    Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    10% to 90% non-condensing

  • Ingress Protection Rating

    IP30

REGULATORY & TYPE APPROVALS

  • Regulatory

    CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH

EMC EMISSIONS & IMMUNITY

  • Standards

    EN 55032:2015 + A11:2020 + A1:2020

    EN 55035:2017 + A11:2020

    EN IEC 61000-3-2: 2019 + A1:2021

    EN 61000-3-3: 2013 + A1:2019 + A2:2021

  • ESD

    EN 61000-4-2:2009

  • Radiated Immunity

    EN IEC 61000-4-3:2020

  • EFT

    EN 61000-4-4:2012

  • Surge Immunity (AC Mains Power Port)

    EN 61000-4-5:2014 + A1:2017

  • CS

    EN 61000-4-6:2014

  • DIP

    EN 61000-4-11:2020

SAFETY

  • Standards

    CE: EN IEC 62368-1:2020 + A11:2020

    RCM: AS/NZS 62368.1:2022

    CB: IEC 62368-1:2018

Bu ürüne ait özellikler veritabanımızda bulunmamamktadır.

TSW202 Datasheet
