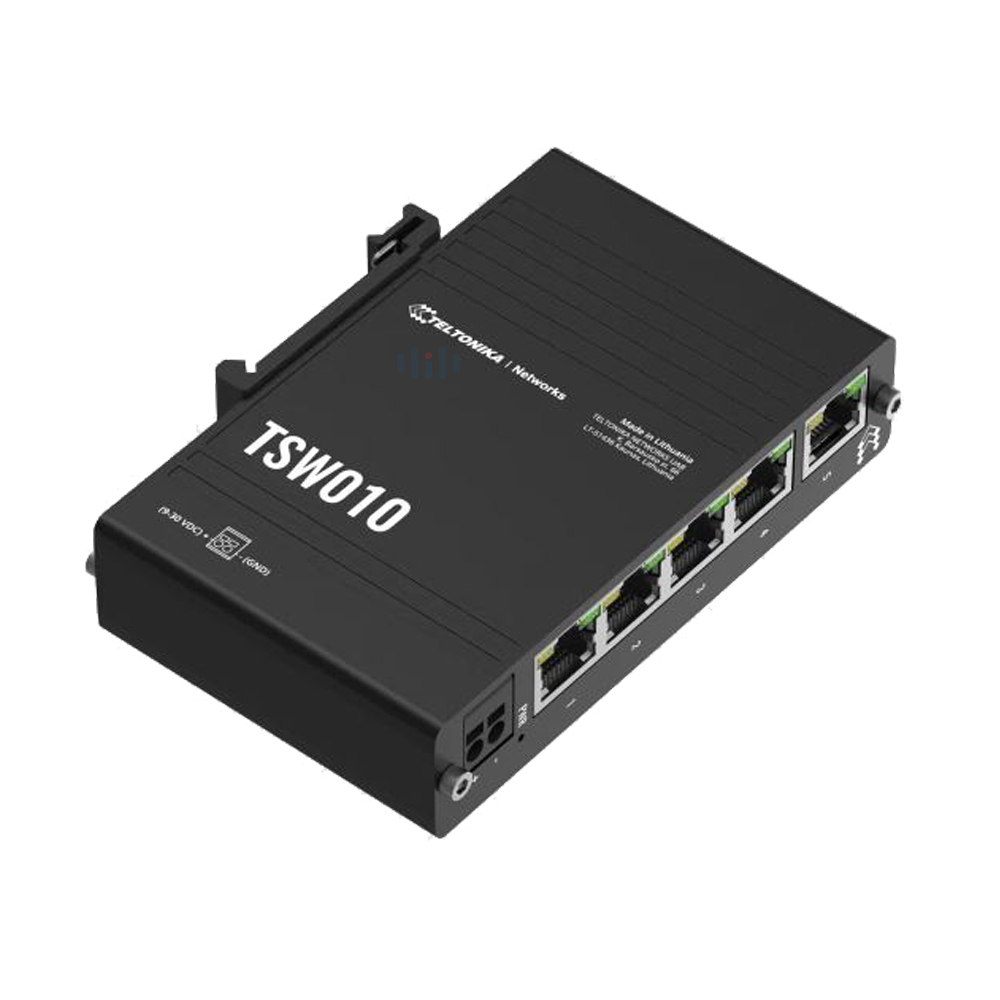

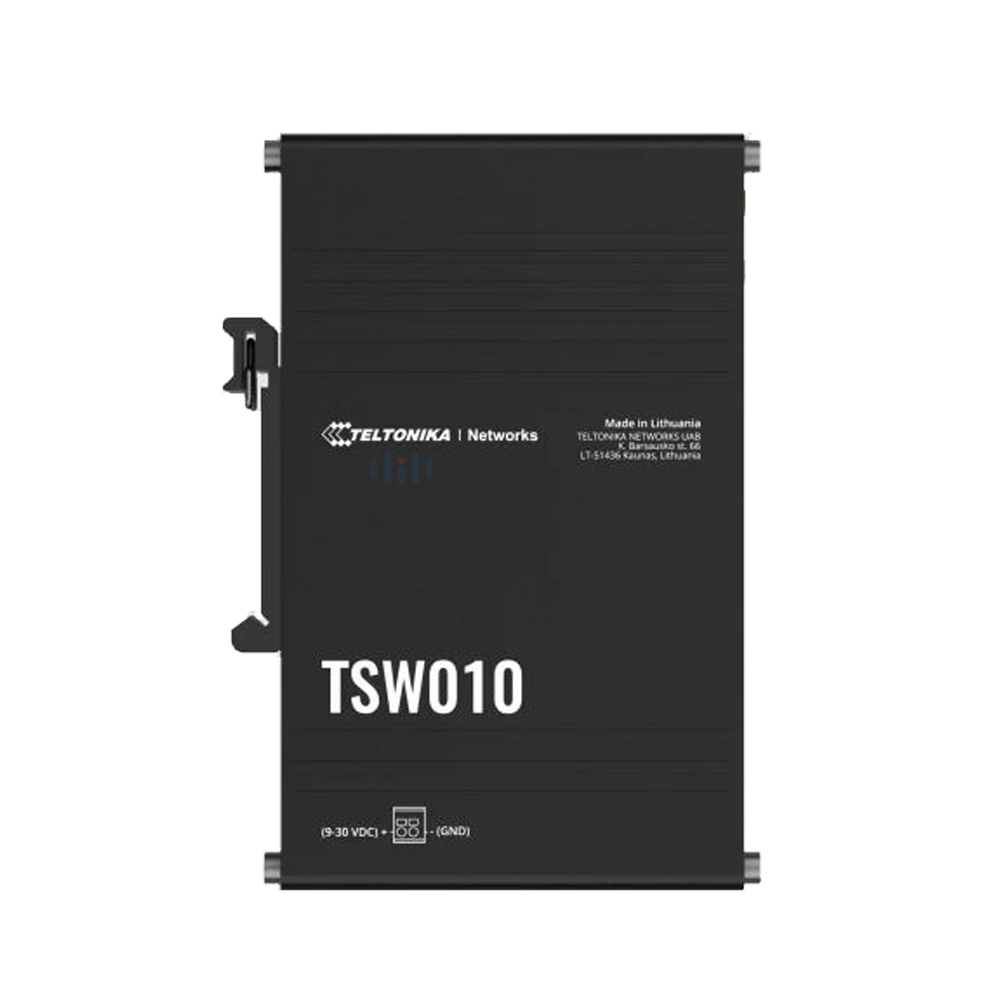

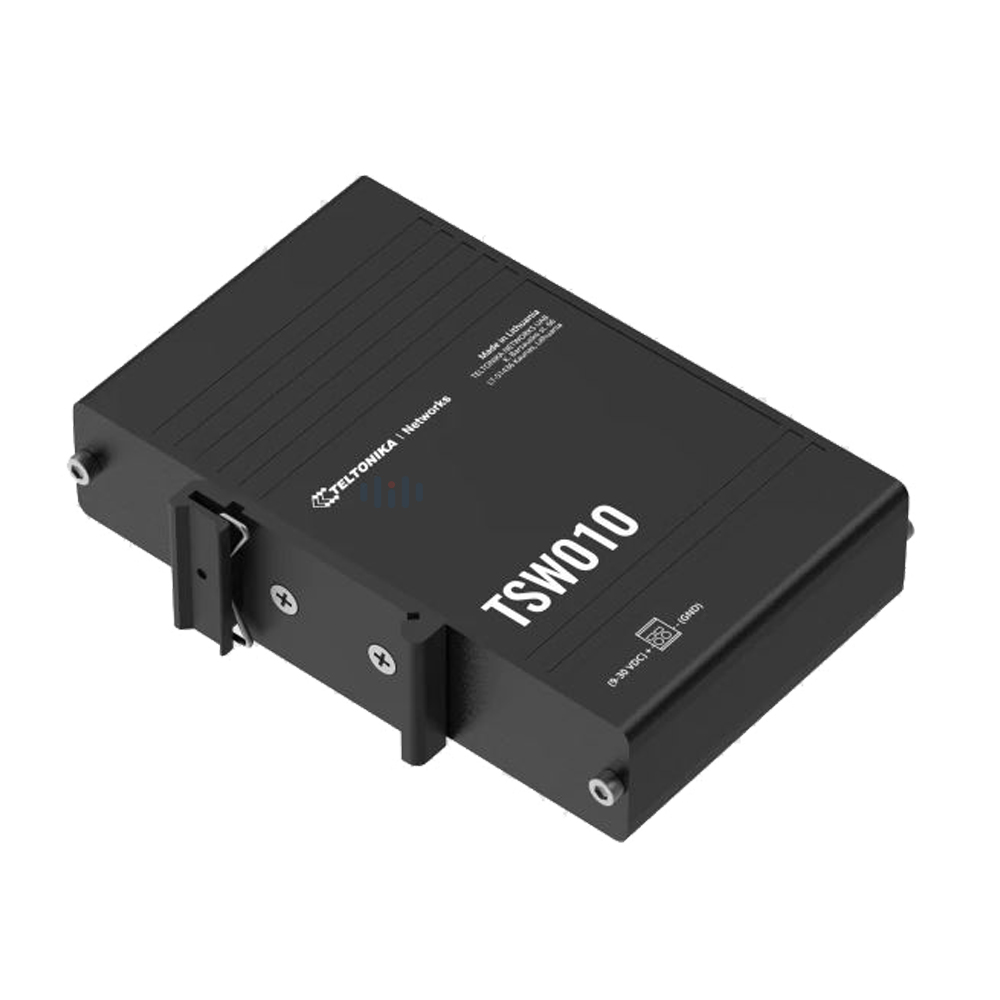

Teltonika TSW010 5Port (10/100Mbps) UnManaged Industrial Switch

Teltonika TSW010 5Port (10/100Mbps) UnManaged Industrial Switch

Teltonika

TSW010, 5adet 10/100Mbps Ethernet portu bulunan yönetilemez non-blocking endüstriyel switchtir.

TSW010, 5adet 10/100Mbps Ethernet portu bulunan yönetilemez non-blocking endüstriyel switchtir.

ETHERNET

  • ETH

    5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover

  • IEEE 802.3 series standards

    802.3i, 802.3u, 802.3x, 802.3az

PERFORMANCE SPECIFICATIONS

  • Bandwidth (Non-blocking)

    1 Gbps

  • MAC address table size

    2K entries

  • Jumbo frame support

    2048 bytes

POWER

  • Connector

    2-pin industrial DC power socket

  • Input voltage range

    9 – 30 VDC

  • PoE (passive)

    Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

  • Power consumption

     Idle: 0.3 W / Max: 0.9 W

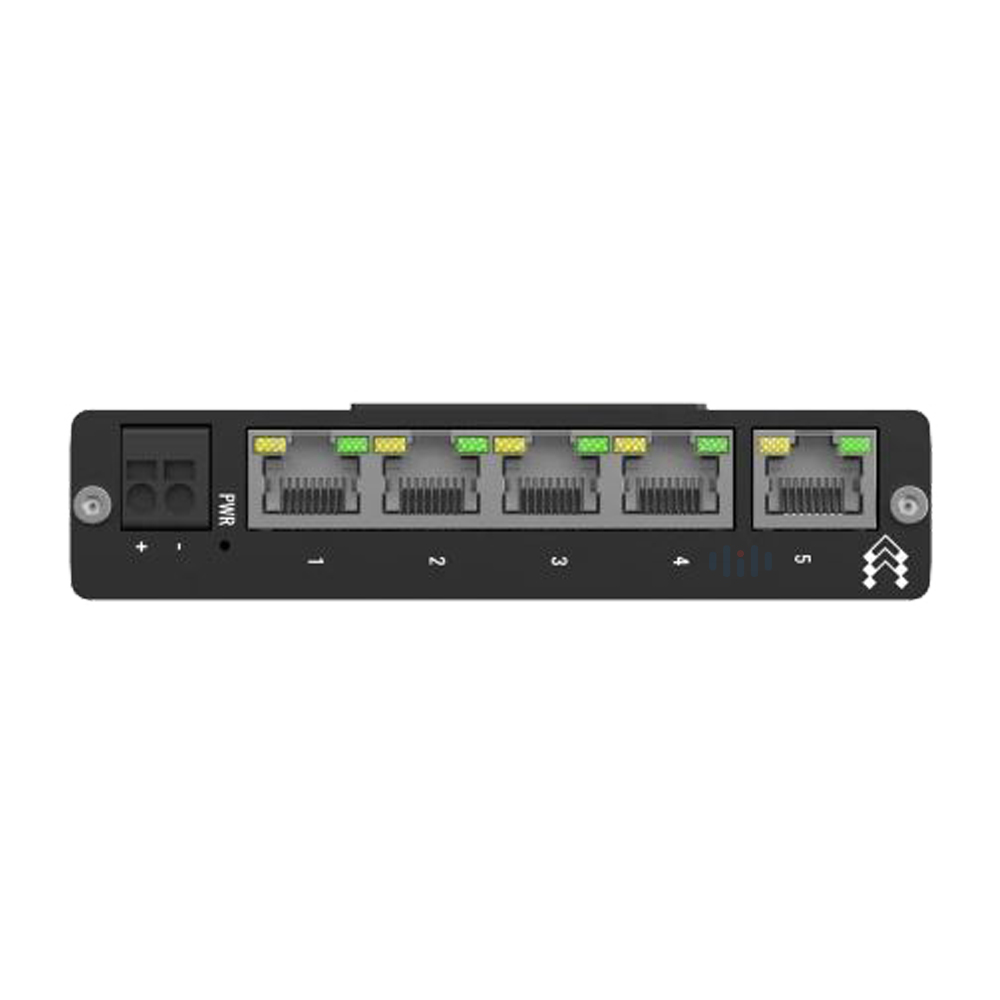

PHYSICAL INTERFACES

  • Ethernet

    5 x RJ45 ports, 10/100 Mbps

  • Status LEDs

    1 x Power LED, 10 x ETH status LEDs

  • Power

    1 x 2-pin industrial DC power socket

PHYSICAL SPECIFICATION

  • Casing material

    Aluminium housing

  • Dimensions (W x H x D)

    113.1 x 27.4 x 80.5 mm

  • Weight

    146.5 g

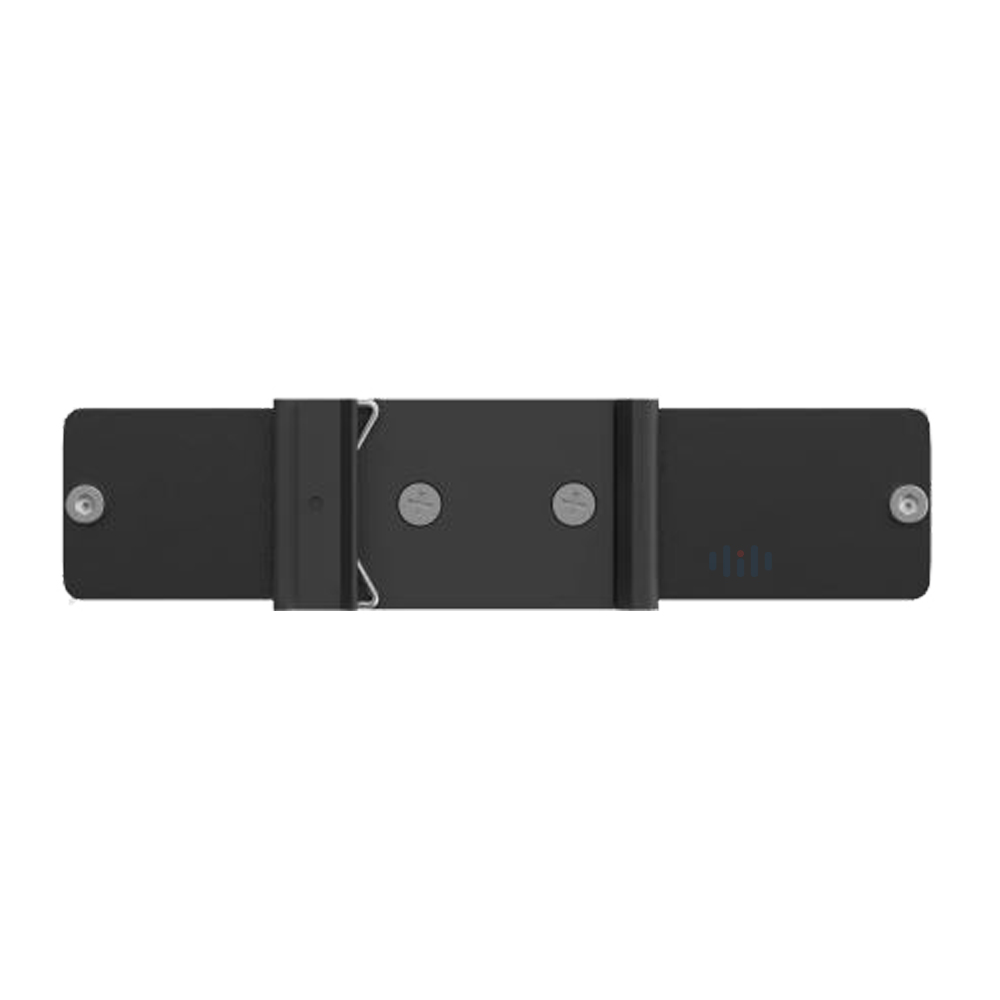

  • Mounting options

    DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    10% to 90% non-condensing

  • Ingress Protection Rating

    IP30

REGULATORY & TYPE APPROVALS

  • Regulatory

    CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

SAFETY

  • Standards

    EN IEC 62368-1:2020+A11:2020

Bu ürüne ait özellikler veritabanımızda bulunmamamktadır.

TSW010 Datasheet
TSW010 Brochure
