Ürün Bilgileri

1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Port forward, traffic rules, custom rules

View all your Firewall statistics, rules, and rule counters

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Visual representation of your network, showing which devices are connected to which other devices

Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes

Static and dynamic IP allocation, DHCP Relay

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

Supported >25 service providers, others can be configured manually

VRRP, Wired options, each of which can be used as an automatic Failover

Balance Internet traffic over multiple WAN connections

Possibility to mount remote file system via SSH protocol

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

Port and tag-based VLAN separation

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Flexible access control of SSH, Web interface, CLI and Telnet

Multiple clients and a server can run simultaneously, 27 encryption methods

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE tunnel, GRE tunnel over IPsec support

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

Method of building scalable IPsec VPNs

SSTP client instance support

ZeroTier VPN client support

WireGuard VPN client and server support

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Client, Server

TCP

Respond to one ID in range [1;255] or any

Allow access through WAN

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

01, 02, 03, 04, 05, 06, 15, 16

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

HTTP(S), MQTT, Azure MQTT, Kinesis

Extract parameters from multiple sources and different protocols, and send them all to a single server

Allows sending commands and receiving data from MODBUS Master through MQTT broker

TCP Master, DNP3 Outstation

DLMS - standard protocol for utility meter data exchange

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

Firmware update from server, automatic notification

SSH (v1, v2)

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT Broker, MQTT publisher

SNMP (v1, v2, v3), SNMP Trap

Management API over HTTP/HTTPS

Teltonika Remote Management System (RMS)

Allows monitoring of: Device data, Mobile data, Network info, Availability

Allows monitoring of: WAN Type, WAN IP

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP

Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server

QCA9531, MIPS 24kc, 650 MHz

64 MB, DDR2

16 MB, SPI Flash

Update FW from file, check FW on server, configuration profiles, configuration backup

Update FW

Update FW/configuration for multiple devices at once

Update FW without losing current configuration

RutOS (OpenWrt based Linux OS)

Busybox shell, Lua, C, C++

SDK package with build environment provided

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.

NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

USB 2.0

Samba share, USB-to-serial

Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

2 x Configurable digital Inputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high.

2 x Configurable digital Outputs. Open collector output, max output 30 V, 300 mA.

Email, RMS

Allows to set certain I/O conditions to initiate event

4-pin industrial DC power socket

7 - 30 VDC, reverse polarity protection, voltage surge/transient protection

Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Idle: 1.3 W, Max: 3 W

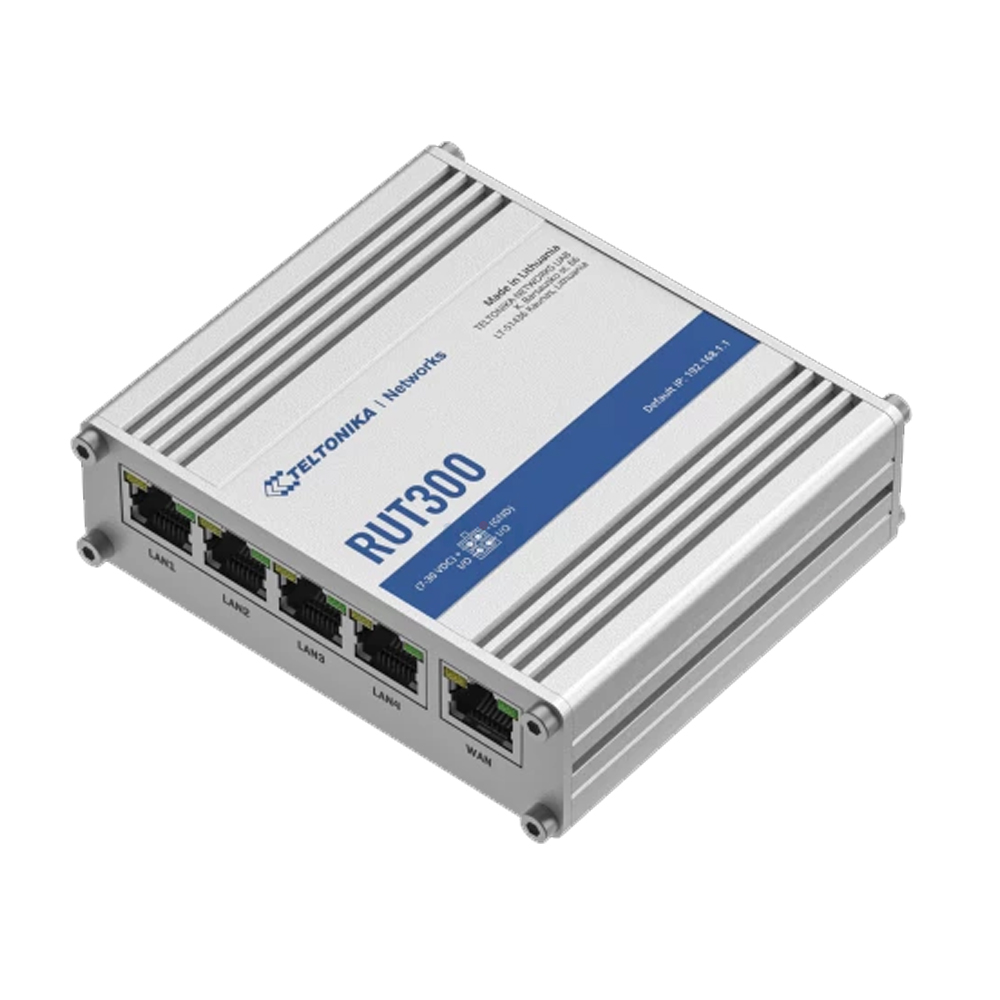

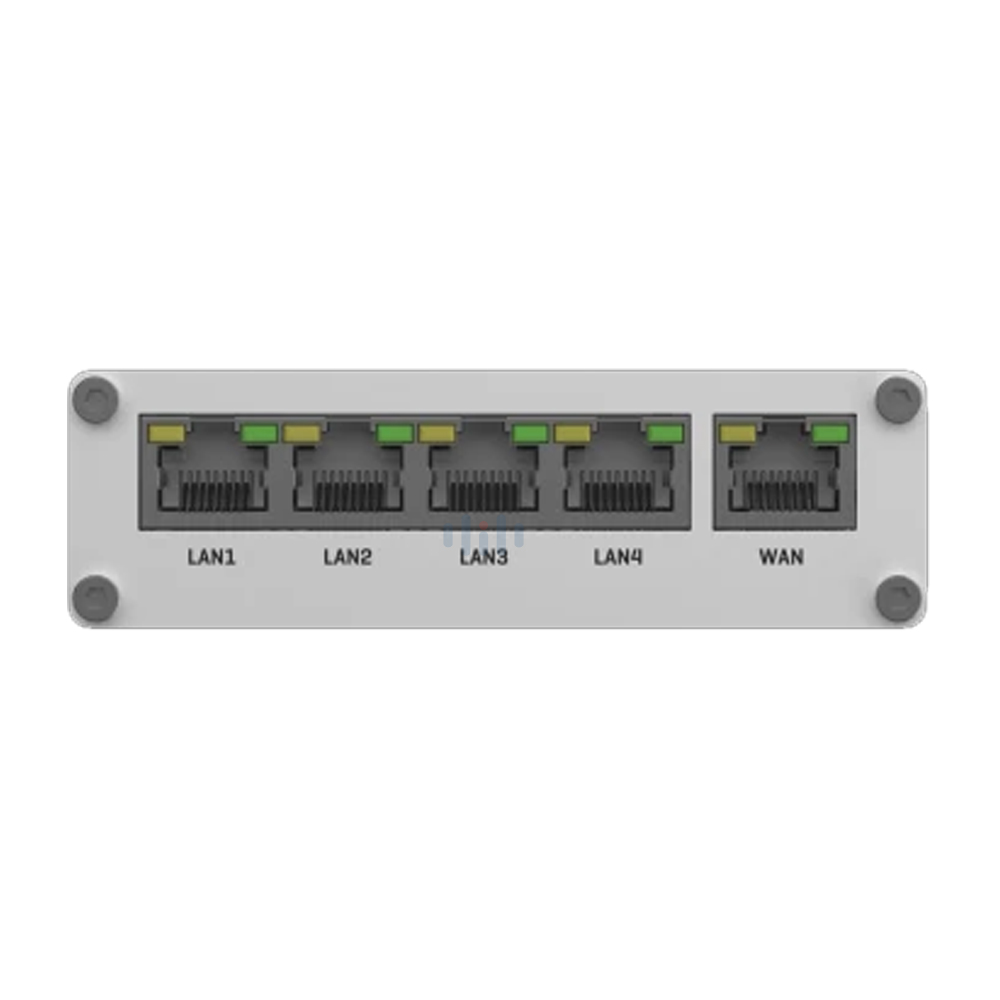

5 x RJ45 ports, 10/100 Mbps

2 x Configurable I/O pins on 4-pin power connector

5 x ETH status, 1 x Power

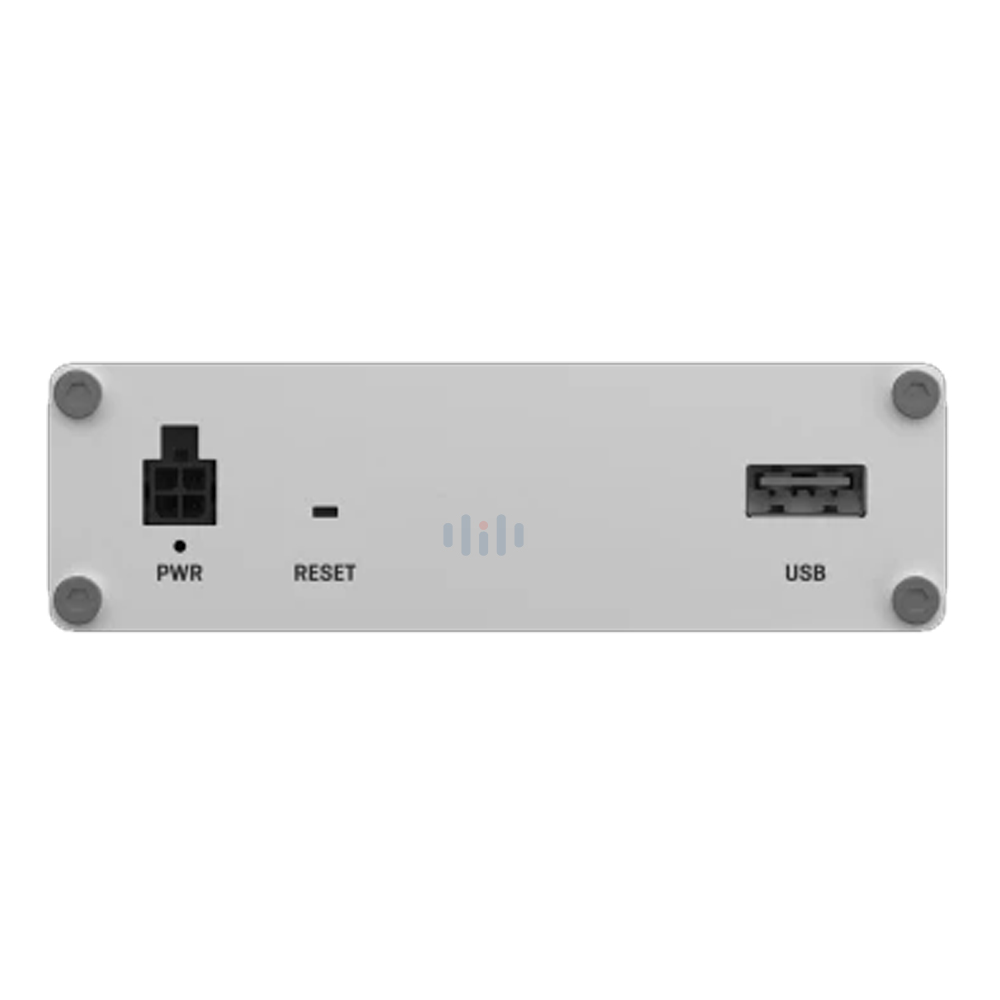

1 x 4-pin power connector

1 x USB A port for external devices

Reboot/User default reset/Factory reset button

Aluminium housing

100 x 30 x 85 mm

229 g

DIN rail, flat surface placement


-40 °C to 75 °C

10% to 90% non-condensing

IP30

CE, UKCA, UCRF, CITC, ANRT, FCC, IC, RCM, BSMI, KC, CB

EN 55032:2015 + A11:2020

EN 61000-3-3:2013 + A1:2019

EN IEC 61000-3-2:2019

EN 55035:2017

EN 61000-4-2:2009

EN IEC 61000-4-3:2006 + A1:2008 + A2:2010

EN 61000-4-4:2012

EN 61000-4-5:2014 + A1:2017

EN 61000-4-6:2014

EN IEC 61000-4-11:2020

CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018
