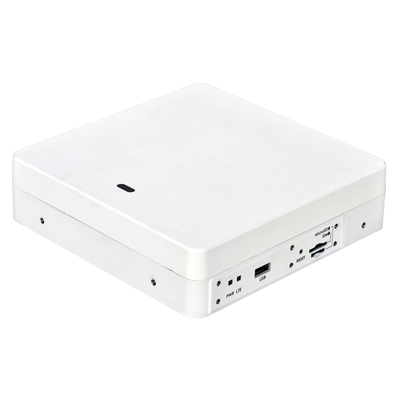

Sundray AP-S410V Industrial LTE Vehicle WiFi AP

Kullanıcı Adı :

Şifre :

Üye Ol | Şifremi Unuttum

Sundray

Sundray AP-S410V üzerinde gömülü LTE SIM yuvası bulunan, 802.11a/b/g/n/ac 1167Mbps hızları destekleyen endüstriyel sınıfda, taşıt araçları için tasarlanmış yüksek performanslı mobil kablosuz erişim noktasıdır. Yüksek kazançlı akıllı antenlere sahiptir. 2x4G, 1xGiga Eth., 1xGPS, 1xSIM/USIM ve 1xSD Card portu mevcuttur. (Güç adaptörü ayrıca alınmalıdır)

Açıklamalar
Özellikler
Belgeler
Alternatif Ürünler
İlişkili Ürünler
Görseller

Product Overview

SUNDRAY AP S410V is a new-generation 802.11ac high-performance wireless industrial vehicle access point developed by SUNDRAY. AP S410V supports dual frequencies of

802.11ac/a/n and 802.11b/g/n and the maximum transmission rate can reach up to 1167 Mbps. Support 3G/4G uplink, can be deployed in the mobile vehicle WiFi coverage.

AP S410V transmit rate is up to 1.167Gbps, support the video and voice applications. The anti-dropping and quake proof design power interface makes the power supply more stable, supports ACC power on and power off.

The SUNDRAY AP S410V series can bring the features of fast access, diversified marketing advertisement and secure connections.

Product Features

Top-speed wireless network access

High speed LTE uplink

SUNDRAY AP S410V can be deployed in different scenarios, fast 3G/4G uplink satisfies different applications. And the 3G and 4G signal will auto change in the area where 4G is not deployed or 4G signal weak area.

The maximum speed can be up to 100Mbps in the inbound direction, support TD-LTE、FDD- LTE and TD-SCDMA、WCDMA、CDMA2000 etc. That can be deployed in different network.

802.11ac high-speed access

SUNDRAY AP S410V series products comply with the new-generation 802.11ac standard and are embedded with an intelligent antenna matrix. The 2.4 GHz RF provides a transmission rate high up to 300 Mbps, the 5 GHz RF provides a transmission rate high up to 867 Mbps, and the system transmission rate can reach 1167 Mbps, thereby providing high-performance wireless access services in terms of coverage scope, access density and operation stability.

GE downlink

A 10/100/1000Base-T Ethernet port is used as the downlink port, which can network connections for the device like surveillance cameras.

QoS guarantee

SUNDRAY AP S410V supports different QoS levels. It supports air interface resource management based on applications, SSIDs or STAs to ensure that air interfaces are appropriately allocated and that the data of important SSIDs and applications is transmitted in preference. Transmission priorities can be defined for different service data through 802.11e/WMM. This ensures differentiated QoS levels.

Seamless roaming for L2 and L3

SUNDRAY AP S410V works with SUNDRAY wireless controller to implement seamless roaming for L2 and L3. When a wireless user roams, the IP address and authentication status remain unchanged. The terminal viscosity prevention function is provided to intelligently guide an STA to the optimal AP, increasing the roaming speed.

Terminal dragging prevention to ensure high-speed network access for all users on the entirenetwork

Terminal dragging prevention involves enabling terminals with different negotiated rates to occupy the identical wireless channel time by using the time fairness algorithm. This avoids problems of low wireless access speed, high delay and low network performance caused by low access rates of some terminals.

Intelligent load balancing

In the case of high-density wireless users, SUNDRAY AP S410V works with SUNDRAY wireless controller to implement intelligent load balancing based on the user quantity, traffic, and frequency band for the purpose of improving the bandwidth usage, thereby ensuring high wireless access speed for users. Frequency band-based load balancing enables 2.4/5 GHz dual-frequency terminals to access the 5 GHz frequency band in preference.

Intelligent RF to reduce wireless interference in an all-round way

The work channel and transmit power of the wireless access point are adjusted automatically and interference from the surrounding environment is detected in real time to reduce radio interference in an all-round way and to improve the overall service quality of the wireless network.

All-round security protection

Multiple easy-to-use and secure authentication modes

Multiple flexible, easy-to-use and secure user authentication modes are available. 802.1x, portal, SMS, WeChat, and QR code authentication modes are provided with the support of SUNDRAY wireless controller to meet network deployment requirements in environments including enterprises, schools, shopping malls, hotels, and financial organizations.

AP VPN remote access

AP can build a VPN tunnel to the controller side, in this way the clients can access the resources in the HQ, at the same time, the internet access will go directly to the internet without being tunneled back. In small branches there is no need to deploy a VPN device, help to reduce the investment for the customer.

All-round wireless security protection

With the support of SUNDRAY wireless controller, AP S410V provides a wide range of wireless security protection functions including WIDS/WIPS, illegitimate AP detection and workaround, ARP spoofing prevention, and DoS attack prevention, constructing a truly secure and reliable wireless network for users.

Timed turning off of RF for network security and environment protection

RF can be turned off and on based on time periods. The wireless network can be automatically turned off at nights and weekends to prevent malicious users from intruding the network and to reduce energy consumption of the equipment.

Flexible network deployment

GPS location

SUNDRAY AP S410V build in with the GPS module, can get the real time position of the vehicle, and support upload the location to the server, which can be analyzed in the big Data analyze system, like the passenger path, if the passenger’s path shows in similar will know his or her home and office location, based on this we can do the accurate marketing

Industrial vehicle AP

SUNDRAY AP S410V is quake proof, with the power interface, and will detect the ACC signals, can detect the status of the ACC and synchronize the information with the AC, and will release the LTE line.

Local storage

SUNDRAY AP S410V support SD card, can be extend to 64GB, support local update and remote update. The AP can cache the audio and video, which will save the cellular traffic and improve user experience.

Thin and Fat mode

Based on the requirement, SUNDRAY AP S410V can easily change the working mode between thin AP and standalone AP. In the early stage of the network deployment, the AP can be used as standalone mode, with the development of the network, the AP can be changed to FAT mode to be managed by the controller.

WDS wireless relay/bridge

AP S410V supports WDS and wireless relays/bridges in point-to-point or point-to-multipoint mode to resolve deployment problems like deployment inconvenience. The WDS function is used to relay and amplify signals for the purpose of extending the wireless coverage scope. The Ethernet port of a wireless relay AP can be connected to a wired switch to extend the wireless coverage scope and wired LAN.

Local forwarding

With the local forwarding technology, AP S410V can directly forward data that features high real- time transmission requirements, delay sensitivity, and large amount over the wired networkwithout passing the wireless controller. This alleviates the traffic load of the wireless controller significantly and breaks the traffic restrictions of the wireless controller.

Virtual AP technology

A maximum of 32 ESSIDs can be provided by using the virtual AP technology. Different SSIDs use different authentication modes and have different network access permission. The SSIDs are isolated from each other. L2 isolation can be implemented for terminals that use the same SSID on a subnet or VLAN to ensure user data security.

SSID

An SSID with a maximum of 32 characters can be specified. An SSID can also contain both Chinese and English characters. Individualized SSIDs are available for shopping malls or enterprises to improve discrimination.

Marketing

Access analysis

Build-in access analysis system, support report the device appear time, MAC address, and report the data differently in the first access and repeat access, passerby and total number coming and not coming in. Also will show the duration of stay. Based on the statistics, will have a better understanding of the clients in the network and offer information for the operators to make decision.

Marketing based on user behavior

Based on the client’s behavior to make the policy of when to push the message. The policy support based on the application the client is using, and based on location, schedule, first access repeat access. The message support banner, SMS, wechat message and webpage.

APP and file cache

The controller and the USB drive on the AP can cache the application for ios and android devices. It will help to accelerate the network. Also it will help to accelerate the app authentication..

User profiling

Support analyze the clients, like peak day, rush hour, dwell time, online duration, terminal type, and set a tag for the clients. And can generate the walk path of the user in the wifi area, offer more information to the customer to make decision.

Technical Specifications

Hardware specifications

Product Specifications of SUNDRAY AP-S410V
Hardware specifications
Item	Description
Model	AP S410V
Dimensions (excluding antenna interfaces and accessories)	MAYIS6 x MAYIS6 x 45 mm
Interface	24G 1GPS 110/100/1000Mpbs port 1SIM/USIM 1*SD（Maximum64GB）
Power supply	9-36V, support ACC
Transmit power	≤20dBm
Power adjustment granularity	1 dBm
Power range	1 dBm to the value specified by national regulations
Power consumption	< 13 W
Reset/restore factory settings	Supported
Status indicator	1*Status
Operating/storage temperature	-10ºC to 55ºC or -40ºC to 70ºC
Operating/storage humidity	5%-95% (non-condensing)
Protection level	IP 41
MTBF	> 250000 H

Software specifications

Software specifications
Item		Description
Model		AP S410V
RF	Streams	2
	Maximum transmission speed of a single frequency	2.4 G：300 Mbps 5 G：867 Mbps
	Operating frequency band	802.11ac/n/a: 5.725-5.850 GHz, 5.15-5.35 GHz 802.11b/g/n: 2.4-2.483GHz
	Modulation technology	OFDM: BPSK@6/9Mbps 、 QPSK@12/18Mbps 、 16- QAM@24Mbps、64-QAM@48/54Mbps DSSS : DBPSK@1Mbps 、 DQPSK@2Mbps 、CCK@5.5/11Mbps MIMO-OFDM : MCS 0-15 MIMO-OFDM （11ac）: MCS 0-9 11b：DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps 11a/g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK @12/18Mbps,BPSK@6/9Mbps 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM
	Channel quantity	802.11a, 802.11n, 802.11ac (compatible with 802.11a): 5 channels
		802.11b, 802.11g, 802.11n (compatible with 802.11b/g mode): 13 channels
	Manual and automatic channel adjustment	Supported
	Automatic power adjustment	Supported
	Manual power adjustment	The AP supports manual power adjustment with an adjustment granularity of 1 dBm. The power scope is from 1 dBm to the value specified by national regulations.
	Timed turning on or off of RF	RF can be turned on or off based on the specified time period.
	Coverage black hole detection and compensation	Supported
LTE	Modulation	TD-LTE: 38、39、40、41,FDD-LTE:1、3、7, TD-SCDMA、WCDMA、CDMA2000
	Frequency	TD-LTE band38/39/40/41，FDD-LTE band1、3、7，TD- SCDMA band34/39、GSM、EDGE UL453.00~457.475,DL463.00~467.475 CDMA 450MHz A UL452.00~456.475,DL462.00~466.475 CDMA 450MHz B UL450.00~454.800,DL460.00~464.800 CDMA 450MHz C UL451.310~455.730,DL461.310~465.730 CDMA 450MHz H ULMAYIS26~MAYIS80,DL2110~2170 WCDMA UL880~890,DL925~935 EGSM WCDMA/HSDPA：2100M（band I）、MAYIS00M（band II）、850M（band V）
	Throughput	TD-SCDMA（2.8Mbps down\2.2Mbps up）WCDMA（14.4Mbps down\5.8Mbpsup） CDMA2000（3.1 Mbps down\1.8Mbps up） TD-LTE 100Mbps down\50Mbps up） FDD-LTE （100Mbps down\50Mbps up）
WLAN function	Maximum number of connected users	256 (maximum number of connected users of a single RF: 128)
	Connected user quantity restriction	Supported
	Virtual AP	32
	Chinese SSID	Supported
	SSID hiding	Supported
	Wireless relay/bridge	Point-to-point and point-to-multipoint supported
	User-, traffic-, and frequency band-based intelligent load balancing	Supported
	Bandwidth restriction	STA, SSID, or AP-based rate limiting is supported.
	STA function	Abnormal STA disconnection detection, STA aging detection, and STA statistic and status query are supported.
	Link integrity detection	Supported

Security authentica tion	Authentication mode	Pre-shared key authentication, portal authentication, 802.1x authentication, CA certificate authentication, WeChat authentication, SMS authentication, QR code authentication, temporary visitor authentication, and authentication exemption are supported, Facebook
	Pre-shared key	WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK hybrid authentication
	Portal authentication	Intelligent terminal type identification is supported. A page matching the terminal size is pushed to terminals. The page logo and displayed information can be customized. In addition, the verification, authentication interval, and reconnection authentication time thresholds can be set.
	802.1x authentication	802.1x one-key configuration and 802.1x perception-free authentication are supported. You only need to download the one-key automatic configuration tool at initial access and finish wireless network configuration quickly. This simplified network deployment significantly.
	CA certificate authentication	High-security certificate authentication can be implemented by using the CA certificate issuance center embedded into the controller, without the need to constructing a certificate server. Authentication by using a certificate imported from an external certificate server is also supported.
	WeChat authentication	After access the wireless network, a user can scan the QR code of the shopping mall or enterprise and follow the public account to access the Internet. The one-key follow function can be easily deployed without any code development. In WeChat authentication, a user can access the network by clicking a text message network access link or clicking the menu bar to view advertisements, or access the network via WeChat authorization.
	SMS authentication	SMS authentication takes effect forever. That is, a user can directly access the network without authentication after being authenticated via SMS at initial access. This reduces the SMS costs and improves user experience.
	QR code authentication	After a visitor terminal accesses the wireless network, the terminal will automatically display a QR page. The approver scans the QR code of the visitor terminal via a cell phone and then the visitor can access the Internet. The visitor information is recorded in three dimensions: approver, remarks, and MAC address of the visitor terminal. This ensures user traceabilityand network security.
	MAC + portal authentication	The device in the MAC address list do not need authentication, the other device still need authentication

	Temporary visitor authentication	A temporary user information management system is embedded. A temporary user can log in within the validity period and cannot after the validity period elapses. A secondary permission system for temporary account management is embedded and temporary accounts can be created and managed in this system. The QR code of a temporary visitor can be printed and the temporary visitor can scan the QR code to access the network. Temporary visitorscan be grouped.
	Authentication exemption	Only a portal advertisement page is displayed. A user needs to click the login button to access the network without entering any account password or performing other authentication.
	Facebook	Support Facebook authentication and Facebook like.
	Self- registration	Clients can register the account via portal, and Retrieve password via SMS
	Email binding	Support binding account with email, and Retrieve password via email
	Data encryption	Data encryption via TKIP and AES (CCMP) is supported.
	Blacklist and whitelist	Static whitelist and blacklist and dynamic blacklist are supported.
	User isolation	SSID-based isolation, automatic VLAN grouping, and user isolation of specified VLANs are supported.
	WIDS/WIPS	Supported
	Illegitimate AP detection and workaround	Supported
	ACL	Account-, access location-, access terminal type- and SSID- based ACL policy assignment and management are supported.
	Radius protocol	Supported
Wireless optimizati on	E-schoolbag scenario optimization	The transmission speed of multicast packets is increased, improving the effects of the E-schoolbag scenario in an all- round way.
	Intelligent broadcast acceleration	The transmission speed of broadcast packets is automatically increased based on the actual environment, thereby improving the transmission efficiency of broadcast packets.
	Terminal dragging prevention	This function aims to prevent the decrease of the entire network speed caused by low-speed terminals based on the time fairness algorithm.
	Terminal viscosity prevention	This function involves detecting STAs connected to APs and intelligently guiding the STAs to the optimal AP.
	Prohibited access of low-speed terminals	The speed of access terminals is limited. Weak-signal terminals with a speed lower than the specified value are prohibited from accessing the network. This improves the entire network speed.

	High-density access scenario optimization	The response to broadcast probe requests is controlled for the purpose of optimizing high-density access scenarios.
	ARP-unicast conversion	ARP broadcast packets are converted into unicast packets. This reduces the number of broadcast packets, thereby improving the transmission speed.
	Prohibited DHCP requests destined for wireless terminals	After this function is enabled, DHCP broadcast requests will be forwarded only to the wired network, instead of other wireless network. This improves the network throughput and performance of the wireless network.
	AP-based access user quantity statistics	The number of connected users and change trends of each AP in the recent one day, one week, and one month can be measured.
Hotspot analysis	AP-based network access traffic statistics	The network access traffic and change trends of each AP in the recent one day, one week, and one month can be measured.
	AP-based signal quality analysis	Statistic analysis for the signal usage, noise, retransmit rate, BER, and BER change trends of each AP is supported.
	AC discovery mechanism	L2 broadcast automatic discovery L3 discovery based on configured static IP addresses DHCP Option43 discovery DNS domain name discovery
AP access mode	Cross-WAN and cross-NAT remote AP deployment	Supported
	webAgent	Controller IP addresses can be dynamically discovered by using the webAgent technology. This avoids AP disconnection caused by unfixed controller IP addresses.
	Tunnel encryption	Supported
	NAT	Supported
L3 function	Network access mode	PPPoE dial-up and static IP address
	DHCP server	Supported
	DNS proxy	Supported
	Relay mode	Point-to-point and point-to-multipoint supported
VPN	AP VPN	Build the VPN tunnel between the controller and AP, access the application in HQ via tunnel, but other traffic will go direct to the internet
Wireless relay/brid ge	Relay frequency band	2.4/5.8 GHz
	Disable wireless network on relay frequency band	Supported
	Wireless backhaul service	Supported
