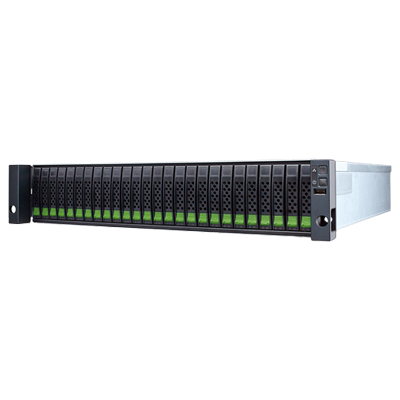

QSAN XCubeFAS XF2026D 2U 26 Bay Dual Controller SFF Rackmount FAS(AFA)
Dual-Controller AFA Storage System, 64GB RAM (max 256GB RAM), 4x10GbE BASE-T iSCSI, Redundant Power Supply, 4 slots for optional host cards (Slot 1 & Slot 2: Optional host cards for 2/4 x 16Gb Fibre Channel, or 2/4 x 10Gb iSCSI) QSLife, QSRaid, QReport, Thin Provioning, Snapshot, Local Clone, Remote Replication
Dual-Controller AFA Storage System, 64GB RAM (max 256GB RAM), 4x10GbE BASE-T iSCSI, Redundant Power Supply, 4 slots for optional host cards (Slot 1 & Slot 2: Optional host cards for 2/4 x 16Gb Fibre Channel, or 2/4 x 10Gb iSCSI) QSLife, QSRaid, QReport, Thin Provioning, Snapshot, Local Clone, Remote Replication
The XCubeFAS XF2026D was developed on a foundation of three simple concepts: All-Flash Arrays should be user-friendly and operable by all, be able to be deployed or integrated into any environment, and should be affordable for any size business. Based on these three ideas, the XCubeFAS XF2026D was born. Imagine a superior, simple, and secure storage solution that offers complete freedom. The freedom to concentrate on your business. The freedom to spend more time with your family, and less time in the server room. The freedom from the stress of complicated configurations. With the XCubeFAS XF2026D, all of the can be achieved.
| Hardware | XF2026D | |
| Form Factor | 2U 26-bay, SFF | |
| RAID Controller | Active-active dual controller | |
| Processor | Intel® Xeon® 4-core processor (8-core processor model is also available) | |
| Memory (Per Cpntroller) | DDR4 ECC 32GB, up to 128GB | |
| (four DIMM slots, insert two DIMMs or more will boost performance) | ||
| Host Connectivity (Per Cpntroller) | Host Card Slot 1 | Host Card Slot 2 |
| (optional): | (optional): | |
| 4 x 16Gb FC (SFP+) ports | 4 x 16Gb FC (SFP+) ports1 | |
| 2 x 16Gb FC (SFP+) ports | 2 x 16Gb FC (SFP+) ports1 | |
| 4 x 10GbE iSCSI (SFP+) ports | 4 x 10GbE iSCSI (SFP+) ports1 | |
| 2 x 10GbE iSCSI (RJ45) ports | 2 x 10GbE iSCSI (RJ45) ports | |
| 1 Slot 2 provides 20Gb bandwidth | ||
| Built-in 2 x 10GBASE-T iSCSI (RJ45) ports | ||
| Built-in 1 x 1GbE management port | ||
| Expansion Connectivity (Per Controller) | Built-in 2 x 12Gb/s SAS wide ports (SFF-8644) | |
| Drive Type | 2.5" SAS, SED2 SSD | |
| 2 SED drive support will be available in Q4 2018 | ||
| Expansion Capabilities | Up to 4 expansion units using XD5326 (SFF 26-bay) 12Gb SAS expansion enclosure | |
| Max. Drives Supported | 130 | |
| Dimension (H x W x D) | MAYIS” Rackmount 88 x 438 x 491 mm | |
| Memory Protection | Cache-to-Flash module | |
| Battery backup module + Flash module | ||
| LCM | USB LCM (optional) | |
| Power Supply | 80 PLUS Platinum, two redundant 770W (1+1) | |
| AC Input | ||
| 100 - 127V 10A, 50-60Hz | ||
| 200 - 240V 5A, 50-60Hz | ||
| DC Output | ||
| +12V 63.4A | ||
| +5VSB 2.0A | ||
| Fan Module | 2 x hot pluggable/redundant fan modules | |
| Warranty |
System : 3 years Battery backup module : 1 year ; Super capacitor module : 1 year
|
|
| File Server |
File sharing across Windows/Mac/Linux/UNIX and centralized management
|
|
| Regulatory |
CE, FCC, BSMI, VCCI, KCC
|
|
| Temperature |
Operating temperature : 0 to 40°C Shipping temperature : -10°C to 50°C
|
|
| Relative Humidity |
Operating relative humidity : 20% to 80%
|
|
| non-condensing Non-operating | ||
| relative humidity : 10% to 90% | ||
