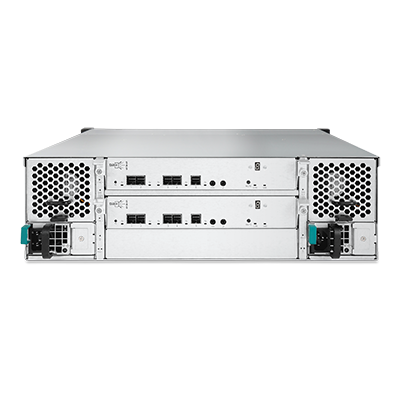

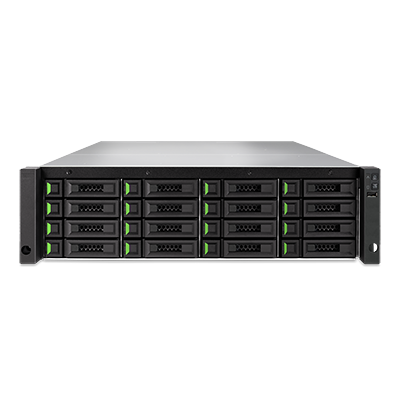

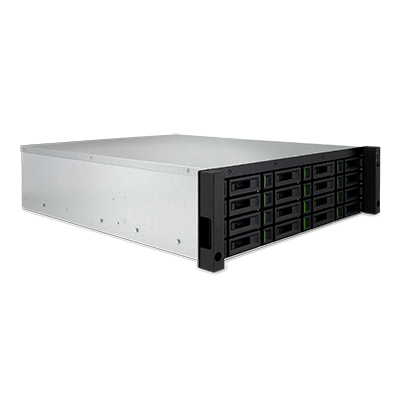

QSAN XCubeDAS XD5316D 16 Bay LFF 3U Rackmount DAS (Dual Cont)

QSAN XCubeDAS XD5316D 16 Bay LFF 3U Rackmount DAS (Dual Cont)

QSAN

QSAN XCubeDAS XD5300 series is a cost-effective DAS (Direct Attached Storage) or JBOD (Just a Bunch Of Disks) for server expansion. It is also a RAID expansion enclosure for QSAN SAN (Storage Area Network) XCubeSAN series.

QSAN XCubeDAS XD5316 Özellikler

Hardware Specifications

Architecture Dual (Active-active)
Storage OS -
CPU
Processor -
CPU Architecture -
CPU Frequency -
Memory
System Flash -
Memory Module Pre-installed -
Total Memory Slots -
Memory Expandable up to -
Notes -
Storage
Drive Bays

3.5" Slot x 16
Maximum Drive Bays with Expansion Unit 616
Compatible Drive Type

3.5" SAS HDD / SAS SED HDD

3.5" NL-SAS HDD / NL-SAS SED HDD

2.5" SAS SSD / SAS SED SSD

2.5" SATA SSD / SATA SED SSD (*)

2.5" SAS HDD / SAS SED HDD

2.5" NL-SAS HDD / NL-SAS SED HDD
Drive Interface

SAS 12Gb/s
Maximum Internal Raw Capacity 224TB
Maximum Raw Capacity with Expansion Units 8,624TB
Hot Swappable Drive
Notes
  • Applied to QSAN FAS, SAN and NAS products
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum Internal Raw Capacity = 14TB drive x 16
  • Capacity may vary by RAID types
  • Up to 10 expansion units behind QSAN storage products
  • 6Gb MUX board needed for 2.5" SATA drives in dual controller system
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port -
HDMI Port -
Others Console Port x 1
Notes -
Connectivity Port
1GbE RJ45 LAN Port -
10GbE RJ45 LAN Port -
10GbE SFP+ LAN Port -
Thunderbolt 3 -
16Gb SFP+ Fibre Channel -
Notes

-
Expansion Port
12Gb/s SAS Wide Port 5 (Onboard)
Notes Per Controller
PCIe Expansion
Gen3x8 Slot -
Gen3x4 Slot -
Notes -
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 130.4 x 438 x 515
Chassis Form Factor 19" Rackmount 3U 16 Bay
Net Weight (kg) 21.7
Gross Weight (kg) 24
Notes -
Memory Protection
Super Capacitor Module + Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off -
Wake on LAN/WAN -
Power Supply Unit / Adapter 770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 534W
British Thermal Unit 1,822BTU
LCM Support
Notes -
Environment Temperature
Operating Temperature 0°C to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

KCC
Notes -
Warranty
Standard Warranty 2 years
Notes -

Bu ürüne ait özellikler veritabanımızda bulunmamamktadır.

XD5316D Datasheet
