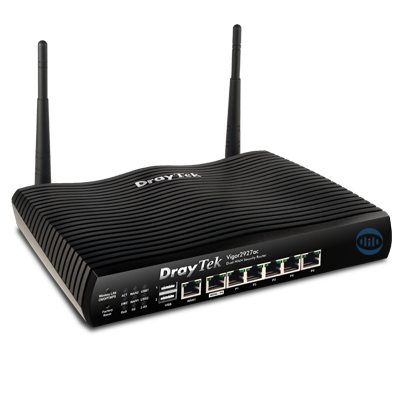

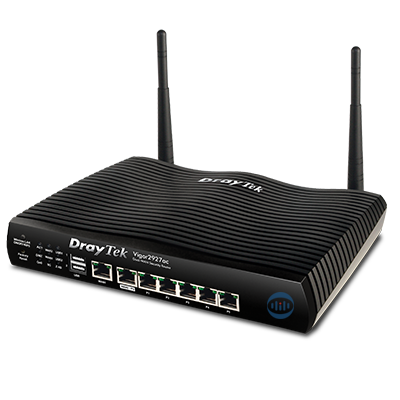

Ultra hızlı, dual WAN portlu, genişbant güvenlik duvarı ve kablosuz AP özellikli router cihazıdır. 50adet VPN Tunel, WAN Load Balance, Fail Over, QoS, Kural Tabanlı Yönlendirme, Web İçerik Filtreleme, Bant Genişliği yönetimi, Captive HotSpot Yönetimine sahiptir. 1xGiGa Bakır Fixed WAN, 1xGiGa Bakır Ayarlanabilir WAN(WAN2/LAN6), 5xGiGa Fixed LAN, 2 adet USB 2.0 portlara ve 2 adet 802.11ac destekli WiFi antene sahiptir. 800Mbps NAT Performansı vardır.
Ultra hızlı, dual WAN portlu, genişbant güvenlik duvarı ve kablosuz AP özellikli router cihazıdır. 50adet VPN Tunel, WAN Load Balance, Fail Over, QoS, Kural Tabanlı Yönlendirme, Web İçerik Filtreleme, Bant Genişliği yönetimi, Captive HotSpot Yönetimine sahiptir. 1xGiGa Bakır Fixed WAN, 1xGiGa Bakır Ayarlanabilir WAN(WAN2/LAN6), 5xGiGa Fixed LAN, 2 adet USB 2.0 portlara ve 2 adet 802.11ac destekli WiFi antene sahiptir. 800Mbps NAT Performansı vardır.
Donanım Arayüzleri |
|
Fixed WAN Port | 1x GbE RJ-45 |
WAN/LAN Switchable Port | 1x GbE RJ-45 |
Fixed LAN Port | 5x GbE RJ-45 |
USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
RJ-11 Port for Voice | 2x FXS (V model) |
Wi-Fi Antenna | 2x External Dipole Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz (wireless model) |
2.4G WLAN | 802.11n 2x2 MIMO 400Mbps (wireless model) |
5G WLAN | 802.11ac Wave 2 2x2 MU-MIMO 867Mbps (dual-band model) |
Performans |
|
NAT Throughput | 800 Mbps |
IPsec VPN Performance | 290 Mbps (AES 256 bits) |
SSL VPN Performance | 120 Mbps |
Max. Number of NAT Sessions | 60,000 |
Max. Concurrent VPN Tunnels | 50 |
Max. Concurrent OpenVPN + SSL VPN | 25 |
Internet Bağlantısı |
|
IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
802.1p/q Multi-VLAN Tagging | V |
Multi-VLAN/PVC | V |
Wireless WAN | V (wireless model) |
3G/4G/LTE WAN with USB modem | V |
Load Balancing | IP-based, Session-based |
WAN Active on Demand | Link Failure, Traffic Threshold |
Connection Detection | ARP, Ping |
WAN Data Budget | V |
Dynamic DNS | V |
DrayDDNS | V |
LAN Yönetimi |
|
VLAN | 802.1q Tag-based, Port-based |
Max. Number of VLAN | 16 |
Number of LAN Subnet | 8 |
DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
LAN IP Alias | V |
Wired 802.1x Authentication | V |
Port Mirroring | V |
Local DNS Server | V |
Conditional DNS Forwarding | V |
Hotspot Web Portal | V |
Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
Ağ Özellikleri |
|
Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP |
Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
High Availability | V |
DNS Security (DNSSEC) | V |
Multicast | IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
Local RADIUS server | V |
SMB File Sharing | V (Requires external storage) |
VPN |
|
LAN-to-LAN | V |
Teleworker-to-LAN | V |
Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN) |
User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
IKE Authentication | Pre-Shared Key, X.509 |
IPsec Authentication | SHA-1, SHA-256 |
Encryption | MPPE, DES, 3DES, AES |
VPN Trunk (Redundancy) | Load Balancing, Failover |
Single-Armed VPN | V |
NAT-Traversal (NAT-T) | V |
DrayTek VPN Matcher | V |
Güvenlik Duvarı ve İçerik Filtreleme |
|
NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
VPN Pass-Through | PPTP, L2TP, IPsec |
IP-based Firewall Policy | V |
Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
DoS Attack Defense | V |
Spoofing Defense | V |
Bantgenişliği Yönetimi |
|
IP-based Bandwidth Limit | V |
IP-based Session Limit | V |
QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
VoIP Prioritization | V |
Wireless LAN (kablosuz model) |
|
Number of SSID | 4 per radio band |
Security Mode | WEP, WPA, WPA2, Mixed(WPA+WPA2) |
Authentication | Pre-Shared Key, 802.1X |
WPS | PIN, PBC |
WDS | Repeater (5GHz only) |
Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
AirTime Fairness | V |
Band Steering | V (dual-band model) |
MU-MIMO | V (5GHz Only) (dual-band model) |
WMM | V |
VoIP Gateway (V model) |
|
Protocol | SIP, RTP/RTCP, ZRTP |
SIP Registrars | 12 |
Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
Voice Codec | G.711 A/u law, G.723.1, G.726, G.729 A/B |
Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
Yönetim |
|
Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
Config File Export & Import | V |
Config File Compatibility | Vigor2926 |
Firmware Upgrade | TFTP, HTTP, TR-069 |
2-Level Administration Privilege | V |
Access Control | Access List, Brute Force Protection |
Notification Alert | SMS, E-mail |
SNMP | v1, v2c, v3 |
Syslog | V |
Managed by VigorACS | V |
Central VPN Management | 8 VPN |
Central AP Management | 20 VigorAP |
Central Switch Management | 10 VigorSwitch |
Fiziksel |
|
Power Supply | DC 12V @ 2A |
Max. Power Consumption | 24 watts (ac model) |
Dimension | 241mm x 165mm x 44mm |
Weight | 630g (ac model) |
Operating Temperature | 0 to 45°C |
Storage Temperature | -25 to 70°C |
Operating Humidity (non-condensing) | 10 to 90% |
Certificate | CE |
Tüm özellikler haber vermeden değiştirilebilir.
Tüm performans değerleri Draytek tarafından yapılan iç test sonuçlarını gösterir, farklı ortamlarda yapılan testler değişiklikler gösterebilir.
