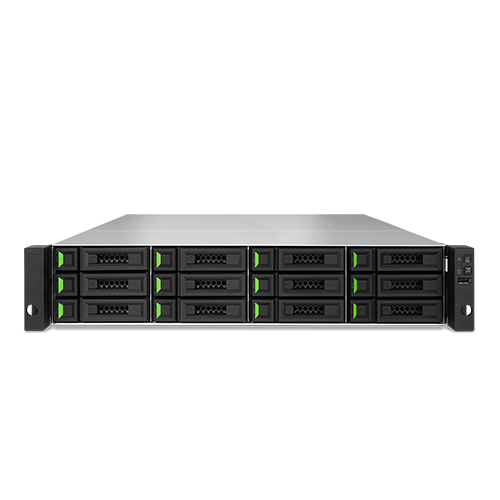

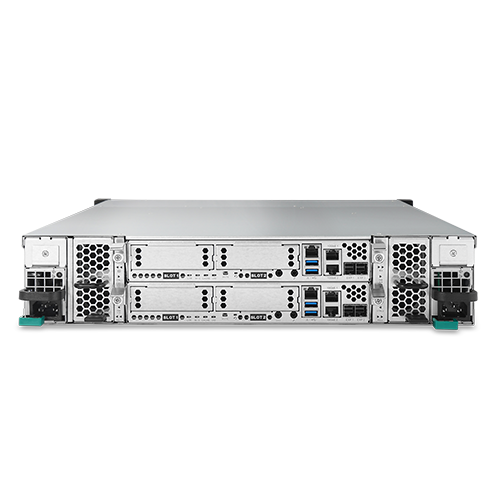

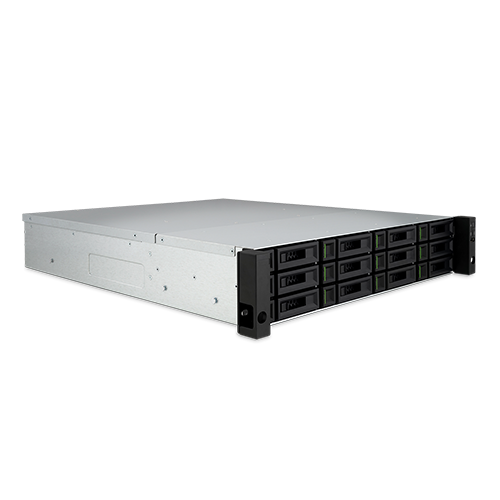

QSAN XCubeSAN XS1212S 2U 12 Bay(3.5inch) Rackmount SAN (Single Ctrl)

QSAN XCubeSAN XS1212S 2U 12 Bay(3.5inch) Rackmount SAN (Single Ctrl)

QSAN

2U 3.5inch 12Bay RackMount Active-Active Dual Controller (Optional) SAN (Storage Area Network) Storage System. Supports both iSCSI IP-SAN and FC-SAN with high performance. Dual-Controller SAN System, iSCSI, RAID 0,1, 5, 6, 10, 50, 60, global hot spare, max 64GB RAM, 4-port 10GbE BASE-T iSCSI, redundant power supply, 4 slots for optional host cards.

QSAN XCubeSAN XS1212S Özellikler

Hardware Specifications

Architecture Dual (Active-Active)
Storage OS SANOS 4 Specification Details
CPU
Processor Intel®
CPU Architecture 64-bit
CPU Frequency Dual-Core
Memory
System Flash -
Memory Module Pre-installed 4GB DDR4 ECC DIMM
Total Memory Slots 2
Memory Expandable up to 32GB
Notes Per Controller
Storage
Drive Bays

3.5" Slot x 12
Maximum Drive Bays with Expansion Unit 420(*)
Compatible Drive Type

3.5" SAS HDD / SAS SED HDD

3.5" NL-SAS HDD / NL-SAS SED HDD

2.5" SAS SSD / SAS SED SSD

2.5" SATA SSD / SATA SED SSD (*)

2.5" SAS HDD / SAS SED HDD

2.5" NL-SAS HDD / NL-SAS SED HDD
Drive Interface

SAS 12Gb/s
Maximum Internal Raw Capacity 216TB(*)​
Maximum Raw Capacity with Expansion Units 7,560TB(*)​
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • The capacity is based on 18TB, larger capacity is allowed when larger drive is available in the future. ​
  • Capacity may vary by RAID types
  • 6Gb MUX board needed for 2.5" SATA drives in dual controller system
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port -
HDMI Port -
Others UPS Port x 1
Console Port x 1
Notes -
Connectivity Port
1GbE RJ45 LAN Port 1 (Onboard Management Port)
10GbE RJ45 LAN Port 2 iSCSI (Onboard)
2 iSCSI (Option)
10GbE SFP+ LAN Port 4 iSCSI (Option)
Thunderbolt 3 -
25GbE SFP28 LAN Port 2 iSCSI (Option)
16Gb SFP+ Fibre Channel 4 (Option)
2 (Option)
32Gb SFP28 Fibre Channel 2 (Option)
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port 2 (Onboard)
Notes -
PCIe Expansion
Gen3x8 Slot -
Gen3x4 Slot -
Notes -
Host Card Expansion
Gen3x8 Slot 1
Gen2x4 Slot 1
Notes Gen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm) 88 x 438 x 515
Chassis Form Factor 19" Rackmount 2U 12 Bay
Net Weight (kg) 16.4
Gross Weight (kg) 18.8
Notes -
Memory Protection
Cache-to-Flash Module
Battery Backup Module + Flash Module
Notes -
Others
System Fan 4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off -
Wake on LAN/WAN
Power Supply Unit / Adapter 770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 407W
British Thermal Unit 1,388BTU
LCM Support
Notes -
Environment Temperature
Operating Temperature 0°C to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

KCC
Notes -
Warranty
Standard Warranty 2 years
Battery backup module / Super capacitor module : 1 year
Notes -

Bu ürüne ait özellikler veritabanımızda bulunmamamktadır.

XS1212S Datasheet
