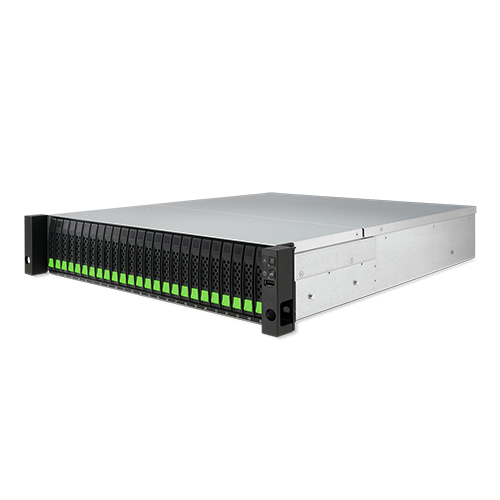

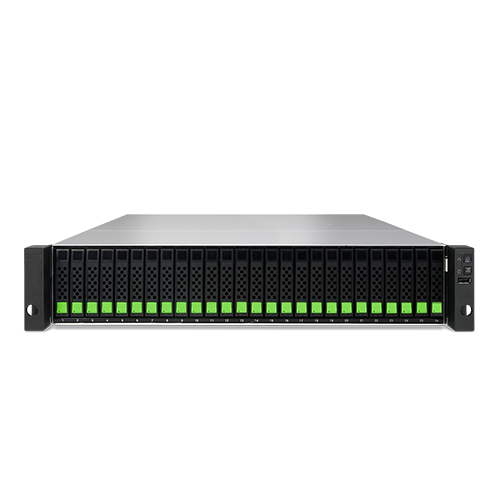

QSAN XCubeNXT XN8026D 26 Bay 2U Rackmount Unified Storage

QSAN XCubeNXT XN8026D 26 Bay 2U Rackmount Unified Storage

QSAN

QSAN XCubeNXT XN8026D, iş amaçlı kullanıma yönelik Çift Merkezi Yönetim Birimine sahip Orta Seviye Birleşik Veri Depolama cihazıdır. Üzerinde 26 adet 2.5inch yuvası bulunan 2U yüksekliğinde cihaz Intel Xeon Quad Core işlemci, 16GB (Her bir Yönetim Birimi için) DDR4 ECC DIMM (Max 128GB), 16GB USB DOM (Sistem Flash Yazılımı için) ve 10GbE donanımına sahiptir.

QSAN XCubeNXT XN8026D, iş amaçlı kullanıma yönelik Çift Merkezi Yönetim Birimine sahip Orta Seviye Birleşik Veri Depolama cihazıdır. Üzerinde 26 adet 2.5inch yuvası bulunan 2U yüksekliğinde cihaz Intel Xeon Quad Core işlemci, 16GB (Her bir Yönetim Birimi için) DDR4 ECC DIMM (Max 128GB), 16GB USB DOM (Sistem Flash Yazılımı için) ve 10GbE donanımına sahiptir.

Hardware Specifications

Architecture Active-Active dual-controller
Storage OS QSM
CPU
Processor Intel® Xeon®
CPU Architecture 64-bit
CPU Frequency Quad-Core (Also support 8 core model)
Memory
System Flash 16GB USB DOM
Memory Module Pre-installed 16GB DDR4 ECC DIMM (per controller)
Total Memory Slots 4 (per controller)
Memory Expandable up to 128GB (per controller)
Notes -
Storage
Drive Bays

2.5" Slot x 26
Maximum Drive Bays with Expansion Unit 434
Compatible Drive Type

2.5" SATA SSD / SATA SED SSD (*), 2.5" SAS HDD / SAS SED HDD, 2.5" NL-SAS HDD / NL-SAS SED HDD

(*) In dual-controller system, 2.5”SATA HHD need 6G MUX board
Drive Interface

SAS 12Gb/s and SATA 6Gb/s

(backward compatible with SAS 6Gb/s and SATA 3Gb/s)
Maximum Internal Raw Capacity 399TB
Maximum Raw Capacity with Expansion Units 7,743TB
Hot Swappable Drive V
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Support up to 18 TB/ per disk
  • Capacity may vary by RAID types
  • In dual-controller system, 2.5SATA HHD need 6G MUX board

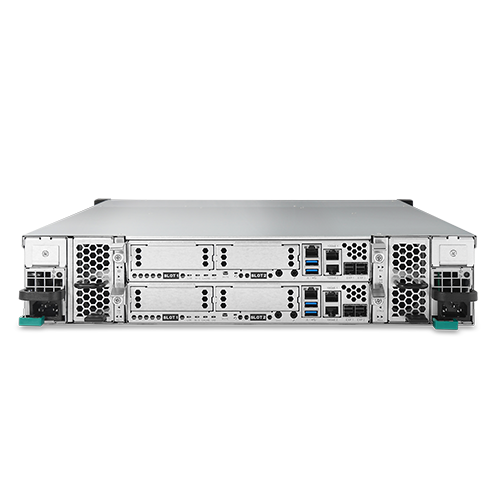

External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 2 (Rear)
HDMI Port -
Others UPS Port x1 Controller port x 1
Notes -
Connectivity Port
1GbE RJ45 LAN Port 1 (Onboard)
10GbE RJ45 LAN Port 2 (Onboard)2 iSCSI (Option: HQ-10G2T)
10GbE SFP+ LAN Port 4 iSCSI (Option: HQ-10G4S2)
Thunderbolt 3 -
25GbE SFP28 LAN Port 2 iSCSI (Option: RHCE25P2)
16Gb SFP+ Fibre Channel 4 FCP (Option: HQ-16F4S2) 2 FCP (Option: HQ-16F2S2)
32Gb SFP28 Fibre Channel 2 FCP (Option: RHCF32P2)
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

RHCF32P2 Option card will be available soon, please contact us for more detail.
Expansion Port
12Gb/s SAS Wide Port 2 (Onboard)
Notes -
PCIe Expansion
Gen3x8 Slot -
Gen3x4 Slot -
Notes -
Host Card Expansion
Gen3x8 Slot 1
Gen2x4 Slot 1
Notes Gen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm) 88 x 438 x 491
Chassis Form Factor MAYIS" Rackmount 2U 26 bay
Net Weight (kg) 16.3
Gross Weight (kg) 18.6
Notes -
Memory Protection
Cache-to-Flash Module V
Battery Backup Module + Flash Module -
Notes Does not need Battery Backup Module
Others
System Fan 4 pcs
Replaceable System Fan V
Power Recovery V
Scheduled Power On/Off -
Wake on LAN/WAN V
Power Supply Unit / Adapter 770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply V
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 429W
British Thermal Unit 1,464BTU
LCM Support V
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

CCC

BSMI

VCCI

KCC
Notes -
Warranty
Standard Warranty 3 years
Notes -

Bu ürüne ait özellikler veritabanımızda bulunmamamktadır.

XN8026D Datasheet
