AirLive M2M-4GPOE LTE POE Industrial Gateway

AirLive M2M-4GPOE LTE POE Industrial Gateway

AirLive

AirLive M2M-4GPOE LTE ve Seri Portlu Endüstriyel bir ağ geçididir. Dual SIM yuvası, 4 adet 802.3at/af POE Destekli Gigabit Ethernet Portu, RS232/485 Seri portu, 802.11ac destekli WiFi anteni mevcuttur. Üzerinde 1 adet DI/DO arayüzü mevcuttur. IPSec, PPTP, L2TP, GRE ve L2TP over IPSEC VPN sonlandırma özelliği mevcuttur.

The M2M-4GPOE is a perfect device for field communication where it can provide both power and Internet access to the devices. It also features RS232/RS485 Modbus and SCADA port and DIDO which are vital for field communication.

Airlive 4G LTE PoE Gateway

  • 1x embedded Cat.4 LTE module
  • 2 SIM slots for failover
  • 4 Gigabit PoE Ports
  • Dual Terminal Blocks Power
  • 1 RS-232/RS-485 port
  • SCADA and Modbus compliant

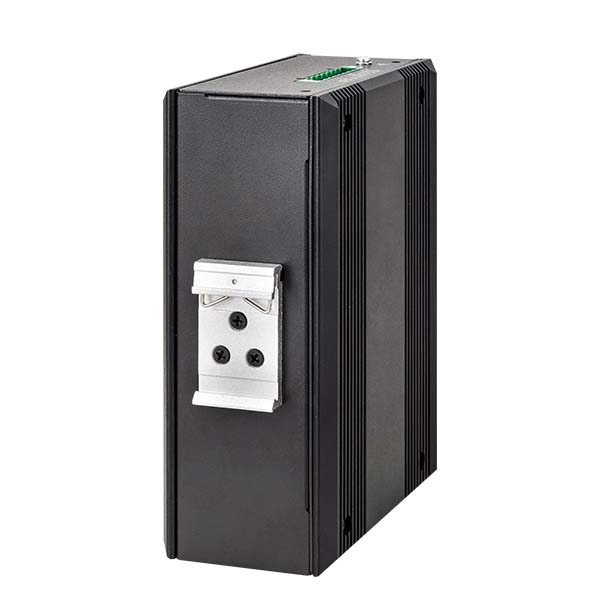

  • DIN rail mount
  • 1 Gigabit WAN Port for load balance or fail over
  • 802.11ac 2T2R with detachable antennas
  • Hardware VPN function provide the secured video transmission
  • SNMP, Web and TR-069 for management



Model

M2M-4GPOE

Device Interface

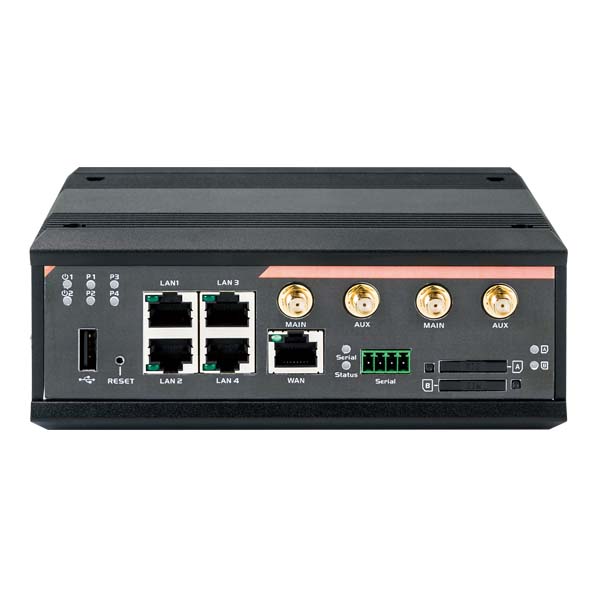

• 4G Module：1 * LTE, 2 * SIM (2FF)
• Ethernet：1 * RJ45 GE, 4 * RJ45 GE with 802.3at PSE
• WiFi：1 * 11a/b/g/n/ac-2T2R 2.4G/5GHz Selectable
• Field Bus：1 * RS232/485 (Terminal Block)
• Log Storage：1 * USB
• I/O：1 * DI (“Logic 0”：0~2V, “Logic 1”：5V~30V), 1 * DO (Relay Mode, up to 30V/1A)
• Power Input：2 * DC 24V ~ 56V (Terminal Block)
• Antenna Con.：2 * SMA (F)-4G, 2 * SMA(M)-WiFi

Frequency Bands

• E0 module(EMAE)：B1/3/7/8/20
• S2 module(Latin)：B1/2/3/4/5/7/8/28/40
• U0 module(US)：B2/4
• A0 module(Australia)：B 1/3/5/7/28/40
• R0 module(Russia)：B3/7/20
• T0 module(Taiwan)：B3/7/8/20
• JP0 module(Japan)：B 1/9/18/MAYIS/21
• JP1 module(Japan)：B 1/8/41

WAN & Uplink

• WAN：Cellular & Config. Ether-WAN; Failover, Load Balance
• Cellular：3GPP, 2G/3G/4G, IP Pass-through, IPv4/6
• Ether-WAN：Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Network Monitor：ICMP/DNS Query

WiFi

• Standard：802.11 Industry Compliance
• Mode：AP Router, WDS Only, WDS Hybrid Modes
• Functions：Multi-SSID, WMM
• Security：WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, 802.1x

Protocol

• LAN & VLAN：DHCP Server/Relay, Port/Tag based VLAN
• IPv6：Dual Stack, Static IPv6, DHCPv6, PPPoEv6
• Port Forward：NAT 1-1, 1-many, tansversal, DMZ, Virtual Server & Computer, VPN Pass-through
• Routing：Static, Dynamic - RIP1/RIP2, OSPF, BGP
• QoS：Policy-based, 802.1q and TOS for priority queues
• PoE：Power Control, Manual ON/OFF, Scheduled ON/OFF

Field Comm.

• Virtual COM：RFC2217, TCP Client, TCP Server, UDP
• Modbus：Gateway for Modbus TCP/RTU/ASCII Master/Slave Access; Slave for Device Status/Information Access
• Data Logging：Sniffer, Off-line / Full-time Proxy, mixed modes

Object

• Scheduling：Time Schedule List
• Grouping：Host Grouping List
• Ext. Server：Email, Syslog, RADIUS, SCEP, FTP, DDNS, IGMP
• Certificate：My Certificate, Trusted Certificate, Issue Certificate

Security

• VPN Tunneling：IPSec, OpenVPN, PPTP, L2TP, GRE
• Scenario：Site/Host to Site/host; Hub and Spoke; Dynamic VPN
• VPN Capability：IPSec: up to 16 tunnels
• Firewall：SPI Firewall with Stealth Mode, IPS
• Access Control：Packet Filter, URL Blocking, MAC Filter

Administration

• Configuration：Web UI, CLI, Command Script, Python*
• Management：SNMPv3 Std. & MIB, TR069
• System：Upgrade, Backup & Restore, Reboot & Reset, SysLog
• FTP：FTP Server, User Account
• Diagnostic：Packet Analyzer, Diagnostic Tools

Service

• Cellular Toolkit：Data Usage, SMS, SIM PIN, USSD, Network Scan
• Event Handling：User Defined Manage/Notify Event; Action & Trigger by SMS, Mail, Syslog, SNMP Trap, Modbus, I/O

Environment

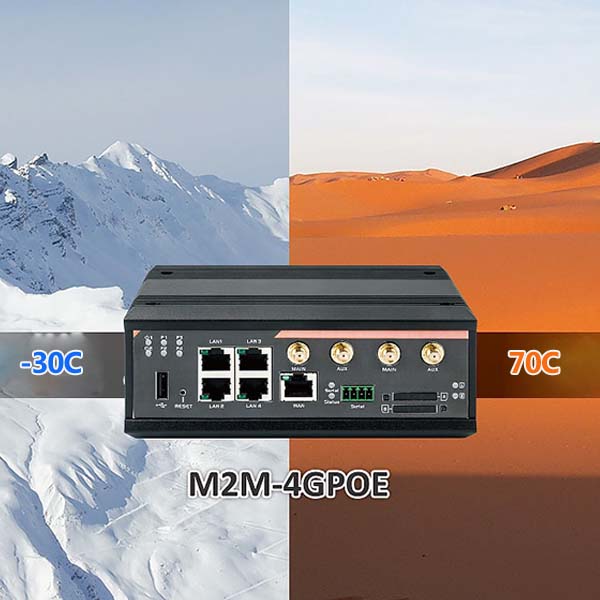

• OP/Storage Temp.：-30°C ~ 70°C ; -40°C ~ 85°C
• Humidity：10% ~ 95% (non-condensing)
• Enclosure：Metal, DIN-Rail, Bracket (Optional)
• Dimension：62 x 125 x 160mm (w/o mounting kit) 62 x 135 x 160mm (with DIN Rail kit)

Certificate - CE

• Standards & Regulation
• EMI：EN 55032：2015 +AC：2016 Class B
• EMS：EN 55024, IEC 61000
• Radio：EN 301 489, EN 300 328, EN 301 893, EN50385
• Safety：EN 60950-1

Package Accessory

• 1 * Device

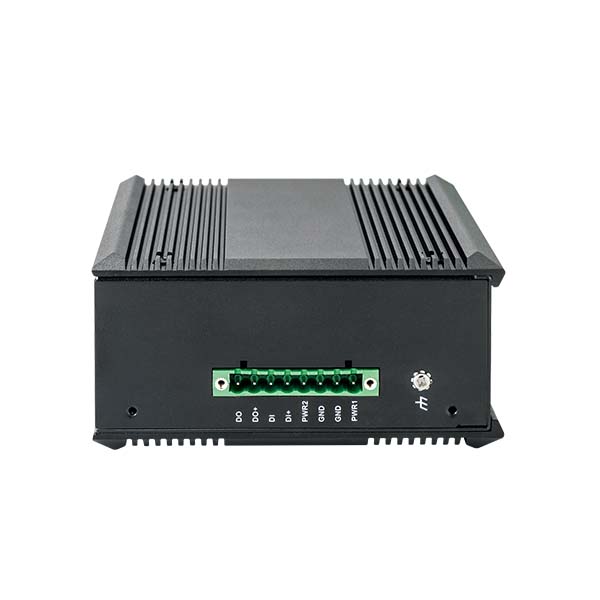

• 1 * Terminal Block (8-pin for DC Power & DI/DO)
• 1 * Terminal Block (4-pin for serial port)
• 1 * RJ45 Cable
• 1 * DIN Rail Kit, 1 * Screw Bag
• 1 * CD (User Manual)
