" ağ ve iletişim teknolojileri uzmanı "

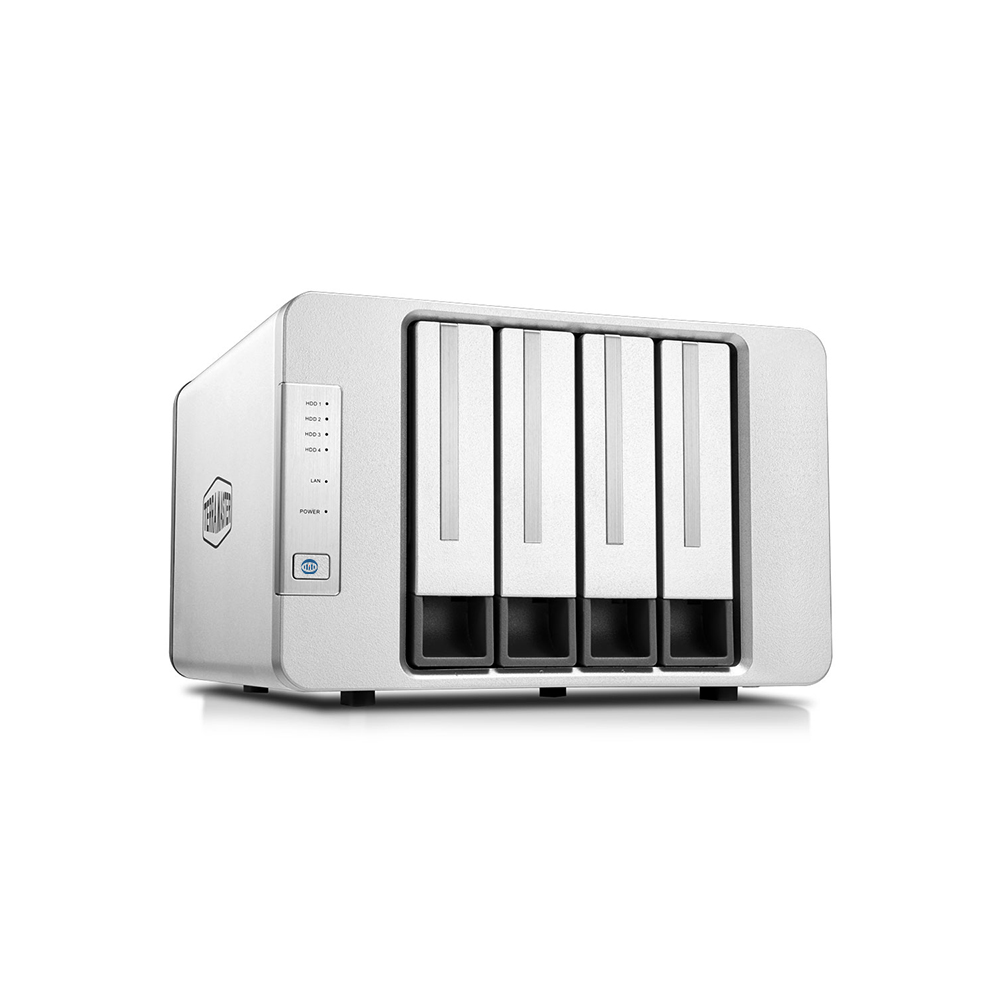

TerraMaster F4-210 all in one 4Bay NAS Ev Kullancıları ve Küçük Şirketler için 4 adet SATA Yuvalı NAS Sunucusu. Quad Core 1.4Ghz İşlemcili, 2GB RAM ve 1 adet 1G Ethernet portlu RAID yapabilen ağa bağlanabilen bir veri depolama ünitesidir.
| Processor | |
| Processor Model | Realtek RTD1296 |
| Processor Architecture | ARM V8 64-bit |
| Processor Frequency | Quad Core 1.4GHz |
| Hardware Encryption Engine | √ |
| Memory | |
| System Memory | 2GB |
| Pre-installed Memory module | / |
| Total Memory Slot Number | / |
| Maximum Supported Memory | 2GB |
| Note | TerraMaster reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
| Storage | |
| Disk Slot Number | 4 |

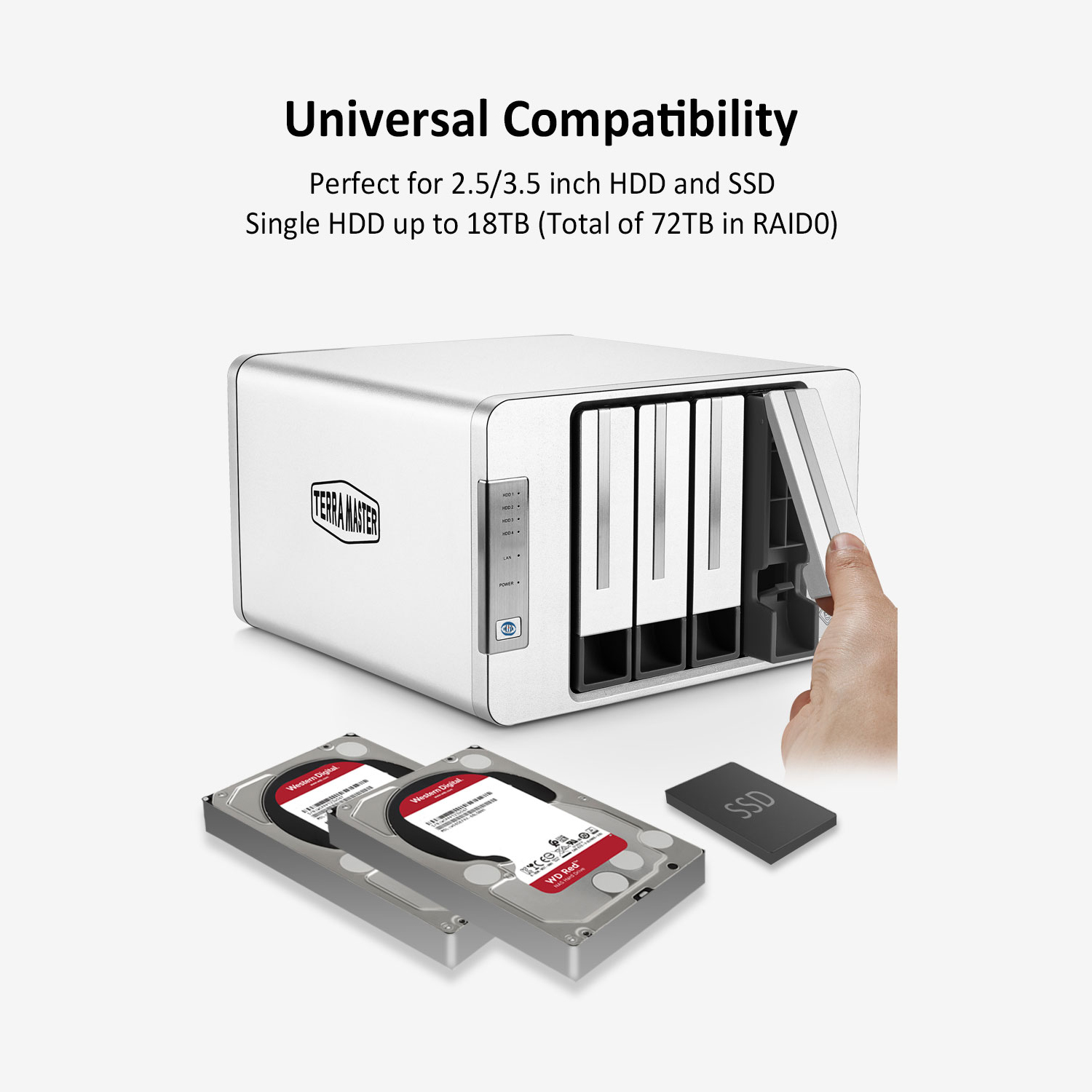

| Compatible Drive types | 3.5" SATA HDD |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| Maximum Internal Raw Storage Capacity | 72TB (18TB x 4) (Capacity may vary by RAID types) |
| Max Single Volume | 108TB |
| Drive Hot Swap | √ |
| Note | . Hard drive vendors will release their latest models of hard drives, and Maximum internal raw storage capacity may be adjusted accordingly. . The maximum single volume size is not directly related to the maximum raw capacity. |
| File System | |
| Internal Drive | EXT4 |
| External Drive | EXT3, EXT4, NTFS, FAT32, HFS+ |
| External Ports | |
| RJ-45 1GbE Network Jack | 1 |
| USB 3.0 Port | 2 |
| USB 2.0 Port | / |
| COM | / |
| HDMI | / |
| VGA | / |
| LSI 9207-8i HBA Card | / |
| PCIe Slots | / |
| Appearance | |
| Size (H*W*D) | 227 x 225x 136 mm |
| Packaging Size (H*W*D) | 300 x 275 x 186 mm |
| Weight | Net Weight: 2.25Kg Gross Weight: 3.50Kg |
| Others | |

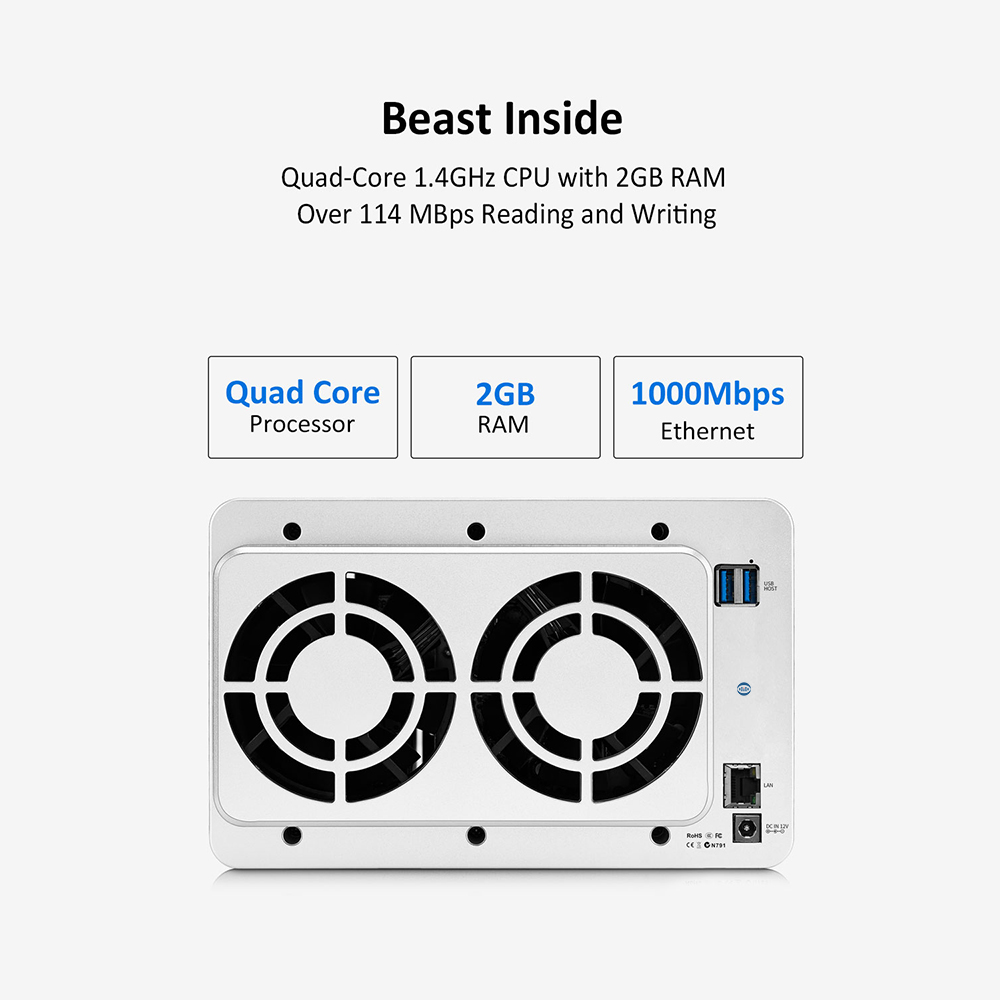

| System Fan | 80 mm x 80 mm x25mm 2 pcs |
| Fan Mode | Smart, High speed, Middle speed, Low speed |
| Noise Level | 19.8dB(A) |
| Power Supply | 90W |
| AC Input Voltage | 100V - 240V AC |
| Current Frequency | 50/60 Hz, single frequency |
| Power Consumption | 25.6W |
| Limited warranty | 2 years |
| Certificate | FCC, CE, CCC, KC |
| Environment | RoHS, WEEE |
| Temperature | |
| Working Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Package Contents | |
| Host unit (x1) | |
| Power cord (x1) | |
| RJ-45 network cable (x1) | |
| Quick Installation Guide (x1) | |
| Limited Warranty Note(x1) | |
| Screws(a few) | |
| Power adapter (x1) | |
| TOS Features | |
| OS Supported | |
| Supported Client OS | Windows OS, Mac OS, Linux OS |
| Supported Web Browsers | Google Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30,Apple Safari 4.5 or later version; Microsoft Edge is not recommened. |
| Supported mobile OS | Ios 8.2, Android 6.0 or later version |
| Storage Management | |
| Supported RAID Types | Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10 |
| Maximum Internal Volume Number | 64 |
| Maximum iSCSI Target | 32 |
| Maximum iSCSI LUN | 32 |
| Volume Expansion with Larger HDDs | RAID 1,RAID5,RAID 6,RAID10 |
| Volume Expansion by Adding a HDD | RAID5 |
| RAID Migration | √ |
| SSD Cache | √ |
| Hot Spare | √ |
| SSD TRIM | / |
| Hard Drive S.M.A.R.T. | √ |
| Seagate IHM | √ |
| NVRAM write cache(BBU-protected) | / |
| WORM(Write Once Read Many) | / |
| Shared Folder Snapshot | / |
| LUN Snapshot | / |
| Storage QoS For Shared Folder | / |
| File Services | |
| File Protocol | SAMBA/AFP/NFS/FTP/WebDAV |
| Maximum Concurrent SAMBA/AFP/FTP Connections | 100 |
| Windows Access Control List (ACL) Integration | √ |
| NFS Kerberos Authentication | √ |
| Account & Shared Folder | |
| Maximum local user's account number | 128 |
| Maximum local group number | 128 |
| Maximum shared folders number | 128 |
| Maximum shared folders syncing tasks | 2 |
| Backup | |
| Rsync Server | √ |
| Rsync Backup | √ |
| Schedule Backup | √ |
| USB Device Backup | √ |

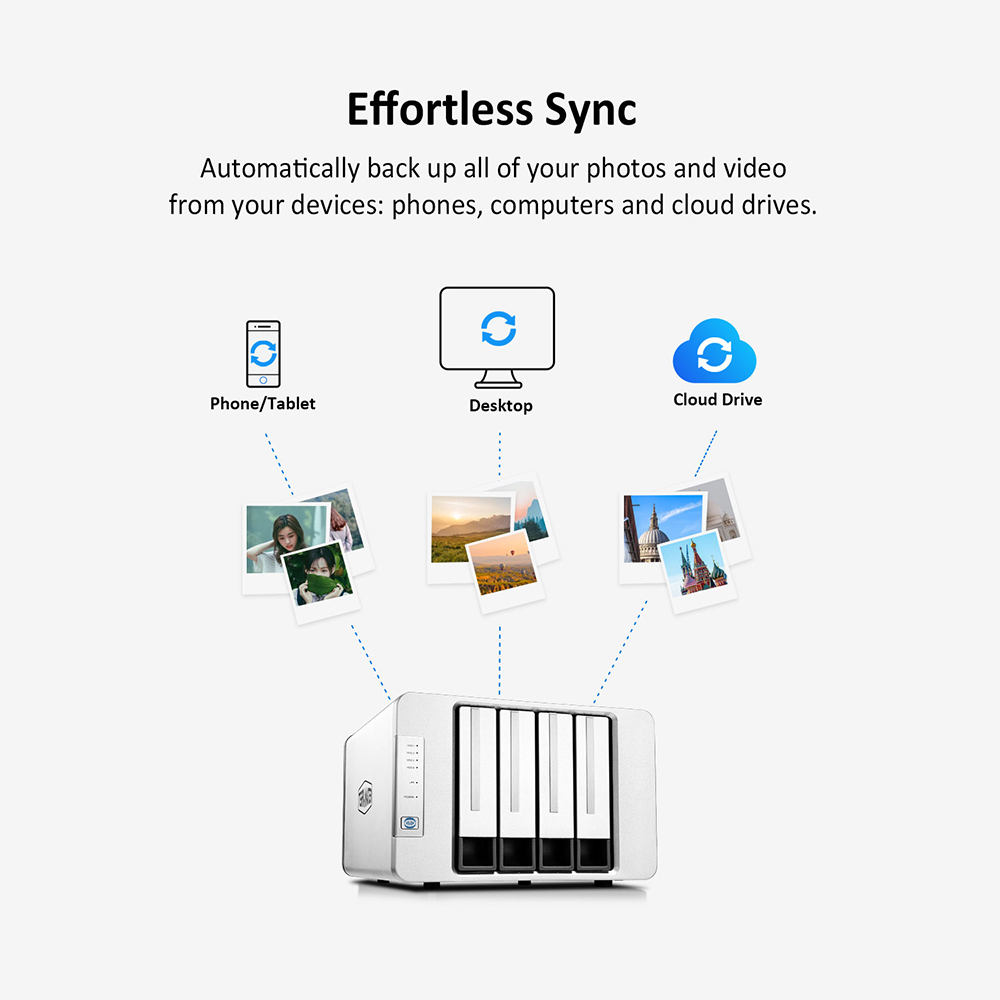

| Cloud Sync | √ |
| Time Machine Server |
