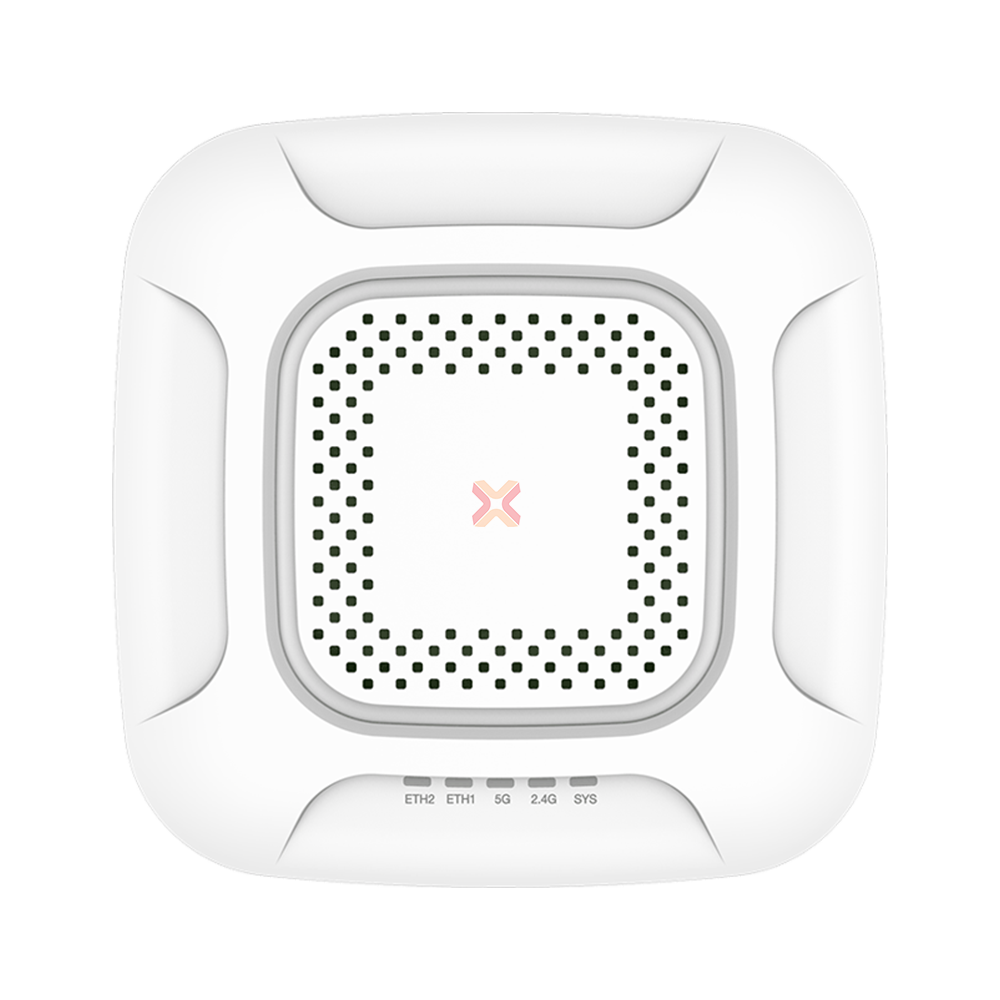

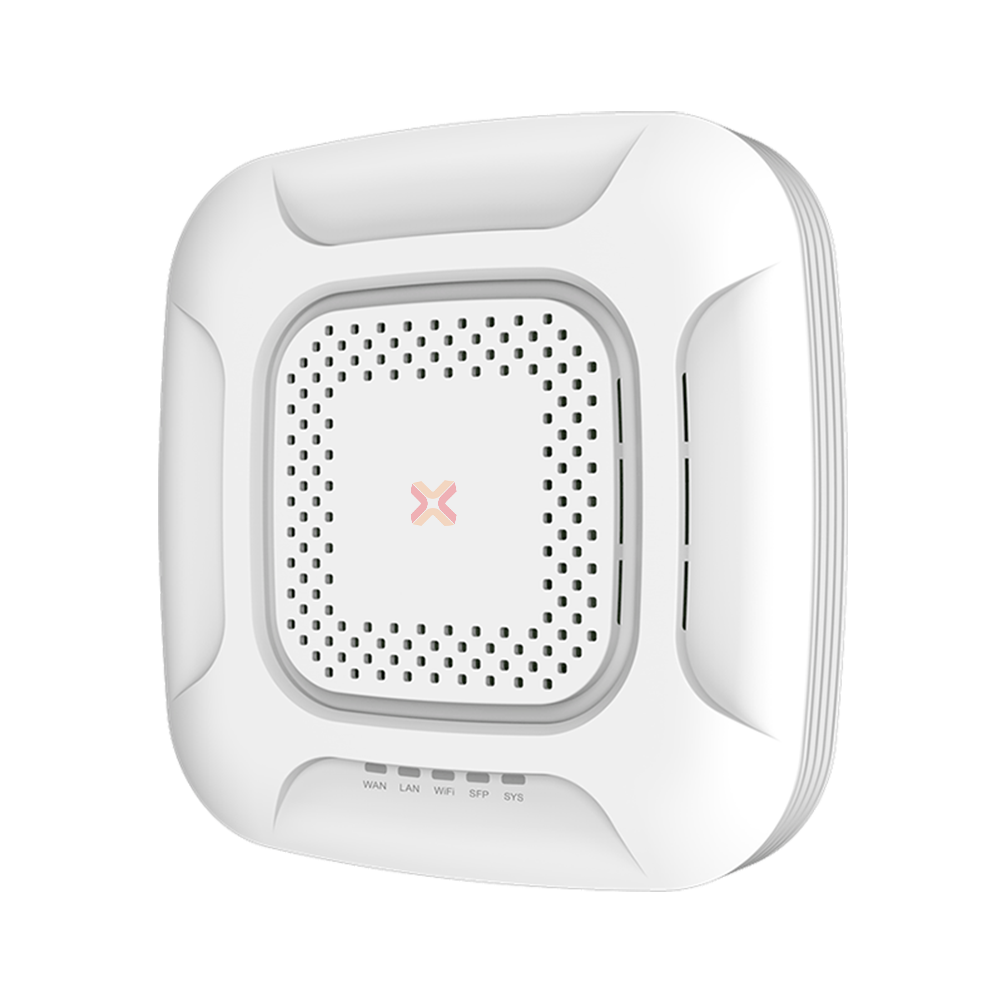

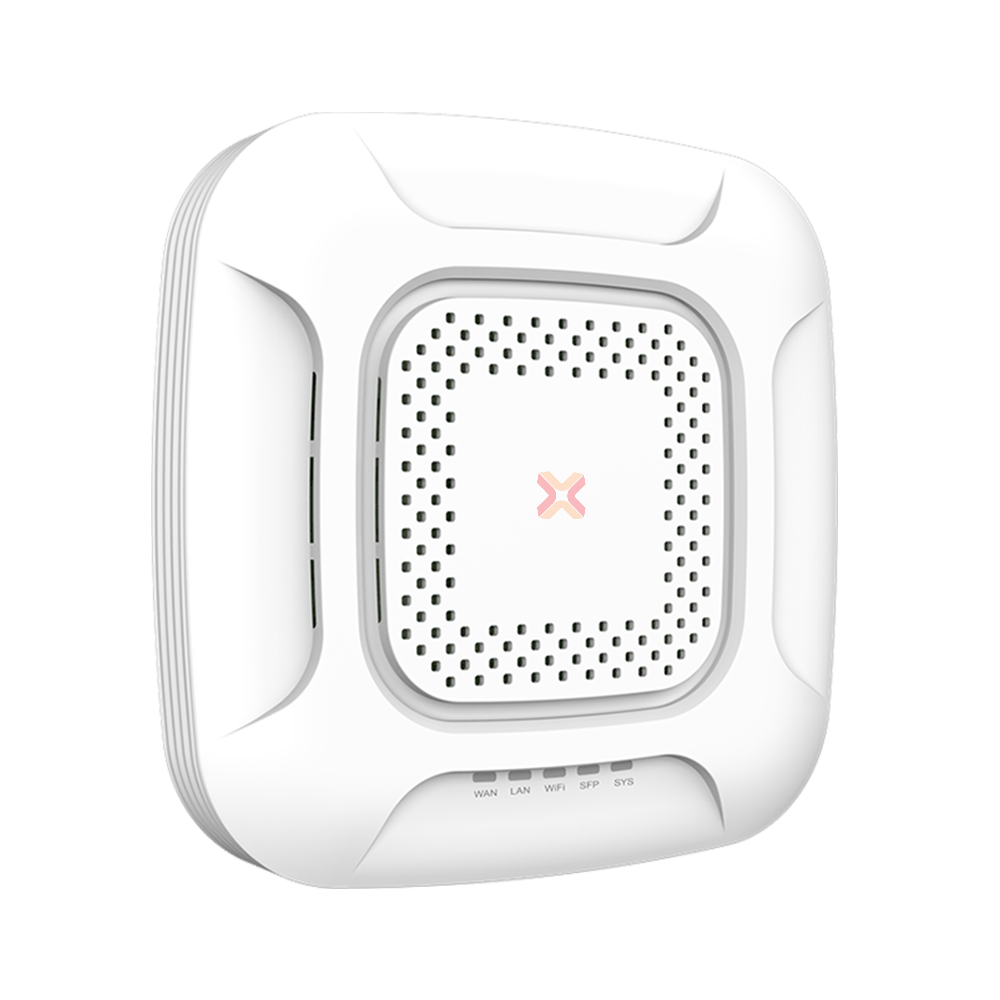

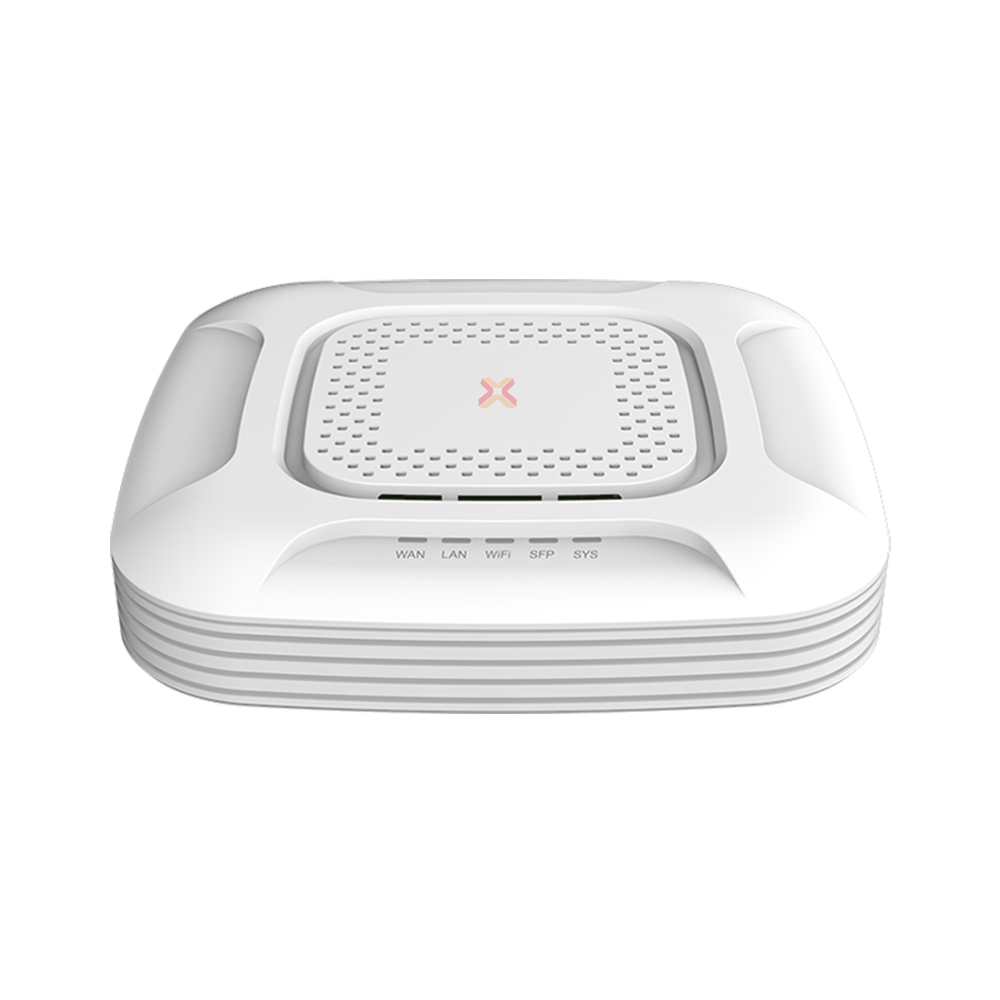

Xentino C900 11be TriBand 9Gbps Ceiling Wireless WiFi7 AP
C900, 11be 8x8 Mu-MiMo Wi-Fi7 standart Qualcomm Yonga Seti yüksek güçlü endüstriyel Tavan Kablosuz Erişim Noktasıdır ve Sorunsuz Dolaşıma sahip MU-MIMO'yu destekler. 2.5Gigabit Eth WAN ve SFP+ WAN ve 2.5Gigabit Eth LAN portlarıyla donatılmıştır. (Adaptör ve POE enjektörü YOK)
Product Overview
C900 is a high-performance, high-speed WiFi7 indoor tri-band ceiling AP, which can provide 2.4GHz, 5GHz, 6GHz tri-band wireless services, a total of 6 streams, 2×2 (2.4GHz) + 2× 2 (5GHz) + 2×2 (6GHz), 2.4GHz provides a maximum access rate of 688Mbps, 5GHz provides a maximum access rate of 2882Mbps, and 6GHz provides a maximum access rate of 5764Mbps. The total rate is nearly 9Gbps, suitable for high-density scenarios, and the actual test supports 192 users.
Main Features
- Support 6GHz access, up to 320MHz bandwidth.
- Supports 4096QAM, further improving transmission efficiency.
- Supports MLO (Multi-Link Operation) multi-link connection function, multi-frequency concurrency, providing a better user experience.
- Supports 10Gbps fiber optic interface and network interface at the same time, giving full play to device performance.
- Supports both PoE (802.3bt) power supply and DC power supply, making installation and deployment more convenient.
HARDWARE SPECIFICATIONS
|
Chipset |
BE860-5262 |
||||
|
Standard |
IPQ5322+QCN6274+QCA8386 |
||||
|
Flash |
Nand 128MB |
||||
|
DDR4 |
1024MB |
||||
|
2.4G Frequency |
2.4GHz - 2.484GHz |
||||
|
2.4G Wi-Fi standard |
802.11b/g/n/ax/be |
||||
|
5G Frequency |
5.150GHz～5.850GHz |
||||
|
5G Wi-Fi Standard |
802.11 a/n/ac/ax/be |
||||
|
6G Frequency |
5.925GHz～7.125GHz |
||||
|
6G Wi-Fi Standard |
802.11 a/n/ac/ax/be |
||||
|
Antenna |
Built-in antenna 4pcs, antenna gain: [email protected], 4dBi@5GHz/ 6GHz |
||||
|
Data Rate |
2.4GHz: 688Mbps, 5GHz: 2882Mbps, 6GHz: 5764Mbps |
||||
|
2.4GHz Tx Power |
802.11b |
11M |
24±2dBm |
1M |
24±2dBm |
|
802.11g |
54M |
23±2dBm |
6M |
24±2dBm |
|
|
802.11n HT20 |
MCS7 |
23±2dBm |
MCS0 |
24±2dBm |
|
|
802.11n HT40 |
MCS7 |
22±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ax HE20 |
MCS11 |
21±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ax HE40 |
MCS11 |
21±2dBm |
MCS0 |
24±2dBm |
|
|
802.11be EHT20 |
MCS13 |
20±2dBm |
MCS0 |
24±2dBm |
|
|
802.11be EHT40 |
MCS13 |
20±2dBm |
MCS0 |
24±2dBm |
|
|
5GHz Tx Power |
802.11a |
54M |
21±2dBm |
6M |
23±2dBm |
|
802.11n HT20 |
MCS7 |
20±2dBm |
MCS0 |
23±2dBm |
|
|
802.11n HT40 |
MCS7 |
20±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ac VHT20 |
MCS8 |
19±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ac VHT40 |
MCS9 |
18±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ac VHT80 |
MCS9 |
18±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ax HE20 |
MCS11 |
18±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ax HE40 |
MCS11 |
18±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ax HE80 |
MCS11 |
18±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ax HE160 |
MCS11 |
18±2dBm |
MCS0 |
23±2dBm |
|
|
802.11be EHT20 |
MCS13 |
18±2dBm |
MCS0 |
23±2dBm |
|
|
802.11be EHT40 |
MCS13 |
18±2dBm |
MCS0 |
23±2dBm |
|
|
802.11be EHT80 |
MCS13 |
18±2dBm |
MCS0 |
23±2dBm |
|
|
802.11be EHT160 |
MCS13 |
17±2dBm |
MCS0 |
23±2dBm |
|
|
6GHz Tx Power |
802.11a |
54M |
20±2dBm |
6M |
22±2dBm |
|
802.11n HT20 |
MCS7 |
20±2dBm |
MCS0 |
22±2dBm |
|
|
802.11n HT40 |
MCS7 |
20±2dBm |
MCS0 |
22±2dBm |
|
|
802.11ac VHT20 |
MCS8 |
19±2dBm |
MCS0 |
22±2dBm |
|
|
802.11ac VHT40 |
MCS9 |
19±2dBm |
MCS0 |
22±2dBm |
|
|
802.11ac VHT80 |
MCS9 |
18±2dBm |
MCS0 |
21±2dBm |
|
|
802.11ax HE20 |
MCS11 |
18±2dBm |
MCS0 |
22±2dBm |
|
|
802.11ax HE40 |
MCS11 |
18±2dBm |
MCS0 |
22±2dBm |
|
|
802.11ax HE80 |
MCS11 |
17±2dBm |
MCS0 |
21±2dBm |
|
|
802.11ax HE160 |
MCS11 |
17±2dBm |
MCS0 |
21±2dBm |
|
|
802.11be EHT20 |
MCS13 |
16±2dBm |
MCS0 |
21±2dBm |
|
|
802.11be EHT40 |
MCS13 |
16±2dBm |
MCS0 |
21±2dBm |
|
|
802.11be EHT80 |
MCS13 |
16±2dBm |
MCS0 |
21±2dBm |
|
|
802.11be EHT160 |
MCS13 |
16±2dBm |
MCS0 |
21±2dBm |
|
|
802.11be EHT320 |
MCS13 |
15±2dBm |
MCS0 |
21±2dBm |
|
|
2.4GHz Rx Sens |
802.11b |
11M |
-89dBm |
1M |
-95dBm |
|
802.11g |
54M |
-75dBm |
6M |
-92dBm |
|
|
802.11n HT20 |
MCS7 |
-72dBm |
MCS0 |
-88dBm |
|
|
802.11n HT40 |
MCS7 |
-70dBm |
MCS0 |
-86dBm |
|
|
802.11ax HE20 |
MCS11 |
-62dBm |
MCS0 |
-88dBm |
|
|
802.11ax HE40 |
MCS11 |
-60dBm |
MCS0 |
-86dBm |
|
|
802.11be EHT20 |
MCS13 |
-62dBm |
MCS0 |
-88dBm |
|
|
802.11be EHT40 |
MCS13 |
-60dBm |
MCS0 |
-86dBm |
|
5GHz Rx Sens |
802.11a |
54M |
-72dBm |
6M |
-92dBm |
|
802.11n HT20 |
MCS7 |
-68dBm |
MCS0 |
-88dBm |
|
|
802.11n HT40 |
MCS7 |
-68dBm |
MCS0 |
-86dBm |
|
|
802.11ac VHT20 |
MCS8 |
-65dBm |
MCS0 |
-88dBm |
|
|
802.11ac VHT40 |
MCS9 |
-58dBm |
MCS0 |
-86dBm |
|
|
802.11ac VHT80 |
MCS9 |
-58dBm |
MCS0 |
-84dBm |
|
|
802.11ax HE20 |
MCS11 |
-60dBm |
MCS0 |
-90dBm |
|
|
802.11ax HE40 |
MCS11 |
-58dBm |
MCS0 |
-88dBm |
|
|
802.11ax HE80 |
MCS11 |
-54dBm |
MCS0 |
-84dBm |
|
|
802.11ax HE160 |
MCS11 |
-51dBm |
MCS0 |
-82dBm |
|
|
802.11be EHT20 |
MCS13 |
-54dBm |
MCS0 |
-86dBm |
|
|
802.11be EHT40 |
MCS13 |
-52dBm |
MCS0 |
-84dBm |
|
|
802.11be EHT80 |
MCS13 |
-50dBm |
MCS0 |
-82dBm |
|
|
802.11be EHT160 |
MCS13 |
-48dBm |
MCS0 |
-80dBm |
|
|
6GHz Rx Sens |
802.11a |
54M |
-74dBm |
6M |
-92dBm |
|
802.11n HT20 |
MCS7 |
-72dBm |
MCS0 |
-88dBm |
|
|
802.11n HT40 |
MCS7 |
-63dBm |
MCS0 |
-88dBm |
|
|
802.11ac VHT20 |
MCS8 |
-60dBm |
MCS0 |
-88dBm |
|
|
802.11ac VHT40 |
MCS9 |
-60dBm |
MCS0 |
-88dBm |
|
|
802.11ac VHT80 |
MCS9 |
-60dBm |
MCS0 |
-86dBm |
|
|
802.11ax HE20 |
MCS11 |
-60dBm |
MCS0 |
-90dBm |
|
|
802.11ax HE40 |
MCS11 |
-58dBm |
MCS0 |
-88dBm |
|
|
802.11ax HE80 |
MCS11 |
-55dBm |
MCS0 |
-84dBm |
|
|
802.11ax HE160 |
MCS11 |
-51dBm |
MCS0 |
-82dBm |
|
|
802.11be EHT20 |
MCS13 |
-54dBm |
MCS0 |
-86dBm |
|
|
802.11be EHT40 |
MCS13 |
-52dBm |
MCS0 |
-84dBm |
|
|
802.11be EHT80 |
MCS13 |
-50dBm |
MCS0 |
-82dBm |
|
|
802.11be EHT160 |
MCS13 |
-48dBm |
MCS0 |
-80dBm |
|
|
802.11be EHT320 |
MCS13 |
-46dBm |
MCS0 |
-78dBm |
|
2.4GHz EVM |
802.11b: ≤-10 dB；802.11g: ≤-25 dB；802.11n: ≤-28dB；802.11ax: ≤-35 dB; 802.11be: ≤-38 dB |
|
5GHz EVM |
802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB; 802.11be: ≤-38 dB |
|
6GHz EVM |
802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB; 802.11be: ≤-38 dB |
|
ppm |
±20ppm |
|

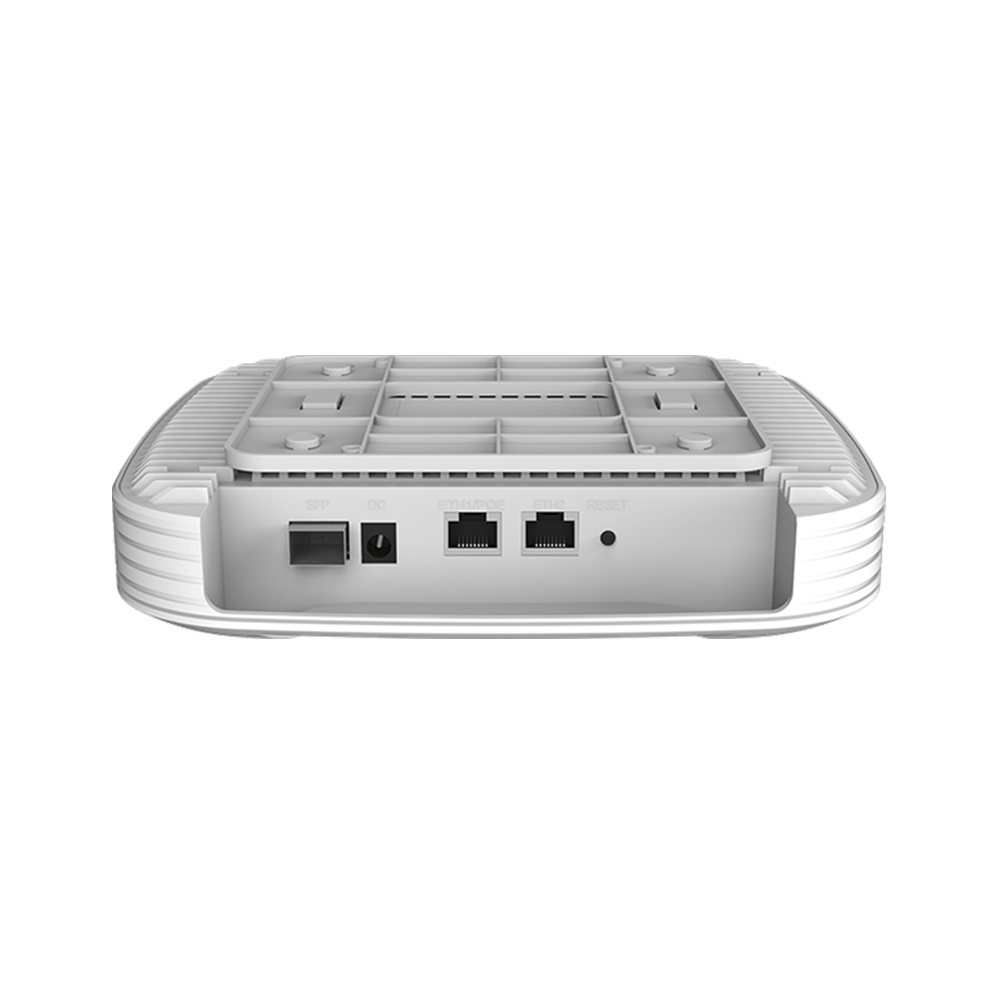

WAN |
1 * 10/100 /1000/2500M WAN, support 802.3bt PoE input |
|
LAN |
1 * 10/100 /1000/2500M LAN |
|
SFP+ |
1 * 10G SFP+ Fiber Port |
|
Reset |
1 * Reset button, press 10 seconds to revert to default setting |
|
Power supply |
PoE 802.3bt, DC2.0 12V/3A |
|
Max Power Consumption |
<36W |
|
LED |
WAN: single green light; LAN: single green light; WiFi: red, green and blue; SFP: green light; SYS: red and green |
|
Size |
208mm x 208mm x 46mm |
|
Weight |
0.55kg |
|
Temperature |
Working: -10°C~55°C；Storage: -40°C~70°C；Humidity: 5%~95% (Non-Condensing) |
|
ESD |
Air:±8K, Touch:±6K |
|
Electrical Surge |
Common Mode: 2K, Differential Mode: 1K |
FIRMWARE SPECIFICATIONS
|
Working Mode |
Gateway, AP |
|
Wireless Functions |
Multiple SSID functions: 2.4GHz: 4; 5GHz: 4; 6GHz: 4 |
|
Support SSID hidden |
|
|
Support seamless roaming, 802.11kv standard. |
|
|
Support 5G Prior for a faster Ethernet. |
|
|
Wireless Security: OPEN, WPA/WPA2PSK-TKIPAES, WPA3PSK-TKIPAES |
|
|
Support MAC filter |
|
|
Support Wi-Fi time on/off to save energy |
|
|
Support client isolation to improve the wireless stability |
|
|
Support RF power adjustable, adjust the RF power based on environment. |
|
|
Support user quantity limited, Max 64 users to access each band. |
|
|
Networking Function |
VLAN settings |
|
Cloud access support in gateway mode |
|
|
Device Management |
Back-up the configuration |
|
Restore the configuration |
|
|
Reset to factory default |
|
|
Reboot the device: including time reboot or reboot immediately |
|
|
Admin management password modify |
|
|
Firmware upgrade |
|
|
System log |
|
|
Support firmware GUI web management, AC controller management, remote management and cloud management |
