Ürün Bilgileri

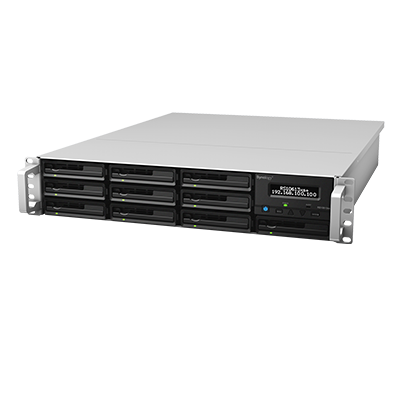

Büyük Ölçekli İşletmeler için 2000+ MB/Sec hızları ve 400.000+ IOPs ile Yüksek Performanslı 10 adet SATA Yuvalı RackMount NAS Sunucusu. Quad Core 3.3GHz Xeon E3 CPU, DDR3 8GB ECC RAM (32GB a kadar yükseltilebilir), 10 adet dahili 3,5" SATAII/III veya 2,5" SATA/SSD HotSwappable HDD Yuvası, 4 adet USB ve 2 adet SAS expansion portu, Maks 90 adet IP Kamera Desteği (10GbE ek kart ile), 4 adet Link Aggregation destekli Gigabit Ethernet veya opsiyonel 2 adet 10G Ethernet, FTP, Kriptolanmış Ağ Yedekleme, EXT3 desteği, Harici Disk için FAT, NTFS desteği, maksimum 16000 adet kullanıcı ve 512 adet kullanıcı grubu tanımı, 512 adet paylaşım klasörü, 1024 adet aynı anda bağlantı desteği, maksimum 2 adet yazıcı paylaşım desteği. Türkçe kolay web arayüzü. Windows ADS ve DataReplicator desteği. Domain kullanıcıları Samba/AFP/FTP ile girebilir. JBOD, Raid 0/1/5/5+Spare/6/10 desteği. Synology RX1213sas ile kapasite artırma desteği(8adet). External HDD Hibernation.

• CPU Frequency : Quad Core 3.3GHz
• Floating Point
• Hardware Encryption Engine
• Memory : DDR3 8GB ECC RAM (Expandable, up to 32GB)　
• Internal HDD/SSD : 3.5" or 2.5" SATAII/SATAIII/SAS X10, 2.5" SSD Cache X2 (Hard drive not included)
• Max Internal Capacity : 40TB (10X 4TB HDD) (Capacity may vary by RAID types) (See All Supported HDD)
• Hot Swappable HDD
• External HDD Interface : USB 2.0 Port X 4, Expansion Port X 2
• Rail Kit: Synology 2U Rail Kit Sliding (optional)
• Size (HxWxD) : 88 X 445 X 570 mm
• Weight : 15.7Kg
• LAN : Gigabit X4 (optional 10GbE X2 add-on card is supported)
• Link Aggregation
• Wake on LAN/WAN
• System Fan : 80x80mm X4
• Easy Replacement System Fan
• Wireless Support (dongle)
• Noise Level : 54.6 dB(A)
• Power Recovery
• AC Input Power Voltage : 100V to 240V AC
• Power Frequency : 50/60 Hz, Single Phase
• Power Consumption : 142W (Access); 110W (HDD Hibernation);
• Redundant Power Supply : Yes
• Operating Temperature : 5°C to 35°C (40°F to 95°F)
• Storage Temperature : -10°C to 70°C (15°F to 155°F)
• Relative Humidity : 5% to 95% RH
• Maximum Operating Altitude : 6,500 feet
• Certification : FCC Class A, CE Class A, BSMI Class A
• Warranty : 2 Years

• Virtual Drive
• Remote Folder

• Network Backup
• Local Backup
• Desktop Backup (Windows: Synology Data Replicator 3, Mac: Apple Time Machine backup application)
• Shared Folder Sync - Max task number : 32
• Configuration Backup

• Supported Protocols : POP3, SMTP, IMAP

• Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log

• Virtual Host (up to 30 websites)
• PHP/MySQL
• 3rd party Applications Support.

• Max Printer # : 2
• Printing Protocols : LPR, CIFS, IPP, Apple AirPrint, Google Cloud Print, Multi Functional Print Sunucu (for Windows PC only)

• DS photo+
• DS audio
• DS cam
• DS file
• DS finder
• DS download (Only available on iOS)
• DS video (Only available on iOS)

• DS audio
• DS finder
• DS photo+


• MAX IP cam # (Licenses required) : 90 (1 Free License) (See All Supported IP Cameras)
• Total frame rate (FPS) : 2700 FPS @ 720p (1280x800) , 1080 FPS @ 1080p (MAYIS20×1080) , 650 FPS @ 3M (2048x1536) , 500 FPS @ 5M (2591xMAYIS44)

• LDAP Directory Sunucu
• Backup and Restore LDAP Database

• Maximum Connections : 30
• VPN Method: PPTP, OpenVPN

• Independent DHCP Sunucu on Different Network Interfaces
• Multiple Subnets Support
• Address Reservation

• SSL Connection
• Log Rotation: 6 months, 1 year, 2 years, 3 years
• Email Notification

• Webmail Interface for Mail Sunucu
• Receiving Mails from Multiple POP3 Mailboxes
• Customizable SMTP Sunucu

• Full System Scan
• Scheduled Scan
• White List Customization
• Virus Definition Auto Update

• Maximum Task Number :16
• Multiple File Versions Retained
• Instant File Restoration

• Maximum User Accounts : 64
• Retain Historical and Deleted File Versions

• Backup Diskİstasyonu data to STRATO HiDrive online storage

• Supported Image Format : BMP, JPG (jpe, jpeg), GIF, RAW (arw, srf, sr2, dcr, k25, kdc, cr2, crw, nef, mrw, ptx, pef, raf, 3fr, erf, mef, mos, orf, rw2, dng, x3f)
• Supported Video Format : 3G2, 3GP, ASF, AVI, DAT, DivX, FLV, M4V, MOV, MP4, MPEG, MPG, QT, WMV, XviD, RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3
  User can click and download the following video formats: RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3, but not able to play it in Photo İstasyonu as compressed Flash video.

• Supported Audio Format (USB Mode) : AAC, FLAC, M4A, MP3, Ogg Vorbis, WMA, WMA VBR
• Supported Audio Format (Streaming Mode) : MP3, M4A, M4B
• Supported Playlist Format : M3U, WPL
• Internet Radio : SHOUTcast, Radioio

• Supported Audio Format : MP3, M4A, M4P, WAV, AIF, The music in WAV and AIF format can be streamed, but the metadata (ex: title, album) may not be indexed on the iTunes
• Supported Video Format : M4V, MOV, MP4
• Supported Playlist Format : M3U, WPL
• Supported Client : iTunes for Windows and Mac

• PS3/Xbox 360 Support
• Supported Audio Format : AAC, AIFF, APE, FLAC, M4A, Apple Lossless, MP3, Ogg Vorbis, PCM, WAV, WMA, WMA VBR, WMA PRO, WMA Lossless
• Supported Video Format : 3GP, 3G2, ASF, AVI, DAT, DivX, DVR-MS, ISO, M2T, M2TS, M4V, MKV, MP4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, XviD, RMVB (The actual playback capabilities may vary depending on the DLNA/UPnP client)
• Supported Image Format : BMP, JPG (jpe, jpeg), GIF, ICO, PNG, PSD, TIF (tiff), UFO

• Supported Download Protocols : BT/HTTP/FTP/NZB/eMule
• Maximum Concurrent Download Tasks : 80

• phpMyAdmin
• HASP
• Webalizer
• Logitech Media Sunucu
• WordPress
• OpenERP


• CIFS

• AFP
• NFS
• FTP
• WebDAV
• CalDAV
• iSCSI
• Telnet
• SSH
• SNMP
• VPN (PPTP, OpenVPN)

• EXT4
• EXT3 (External Disk Only)
• FAT (External Disk Only)
• NTFS (External Disk Only)

• Max File System Size : 108TB
• Max Internal Volume # : 1024
• Max iSCSI Target # : 128
• Max iSCSI LUN # : 512
• Supported RAID Type : Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6, RAID 10
• RAID Migration : Basic to RAID 1, Basic to RAID 5, Basic to RAID 5+Spare, RAID 1 to RAID 5, RAID 1 to RAID 5+Spare, RAID 5 to RAID 5+Spare, RAID 5 to RAID 6
• Volume Expansion with Larger HDDs : Synology Hybrid RAID, RAID 1, RAID 5, RAID 5+Spare, RAID 6
• Volume Expansion by Adding a HDD : RAID 5, RAID 5+Spare, RAID 6
• Synology Expansion Unit Support : RX1211, RX1211RP

• Max User Accounts : 4096
• Max Groups : 512
• Max Shared Folder : 512
• Max Concurrent CIFS/AFP/FTP Connections : 1024

• Domain Users login via Samba/AFP/FTP/File İstasyonu

• FTP over SSL/TLS
• IP Auto-Block
• Firewall
• Encrypted Network Backup over Rsync
• HTTPS Connection

• VMware vSphere 5
• Windows Server 2008
• Microsoft Server 2012
• Citrix Ready

• Auto DSM Upgrade
• Administrator Group
• Push Notification – MSN/Skype/Mobile Devices
• Email/SMS Notification
• Customized User Quota
• Syslog Support
• DDNS Support
• IPv6 Support
• VLAN support
• PPPoE
• Hotspot
• Resource Monitor
• Connection Manager
• UPS Management
• Scheduled Power On/Off
• Custom Management UI HTTP/HTTPS Ports

• HDD Hibernation
• S.M.A.R.T.
• Dynamic Bad Sector Mapping

• Synology Assistant
• Synology Data Replicator

• Windows XP onward
• Mac OS X 10.5 onward
• Ubuntu 9.04 onward

• Chrome
• Firefox
• Internet Explorer : 8, 9
• Safari (MAC) : 5

• English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český.

• RoHS Compliant

• Main Unit X 1
• Installation Disc X 1
• Welcome Note X 1
• Assembling Kit X 1
• AC Power Adapter X 1
• AC Power Cord X 2
• RJ-45 LAN Cable X 1

• Remote
• Camera License Pack
• Rail Kit
• RAM Module : 4GB ECC RAM Module, 8GB ECC RAM Module
• Expansion Unit : RX1213sas
• VS80
