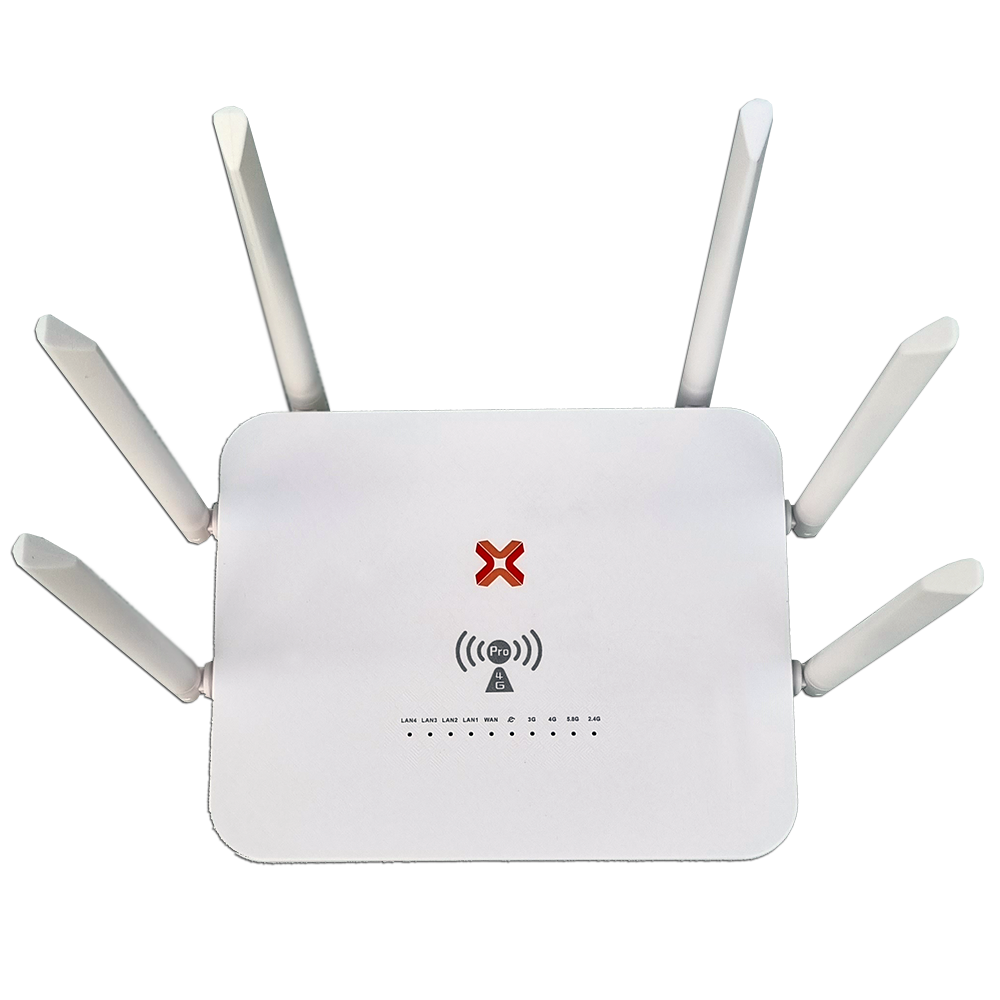

Xentino RL206 4G LTE 1200M Wireless Broadband Router

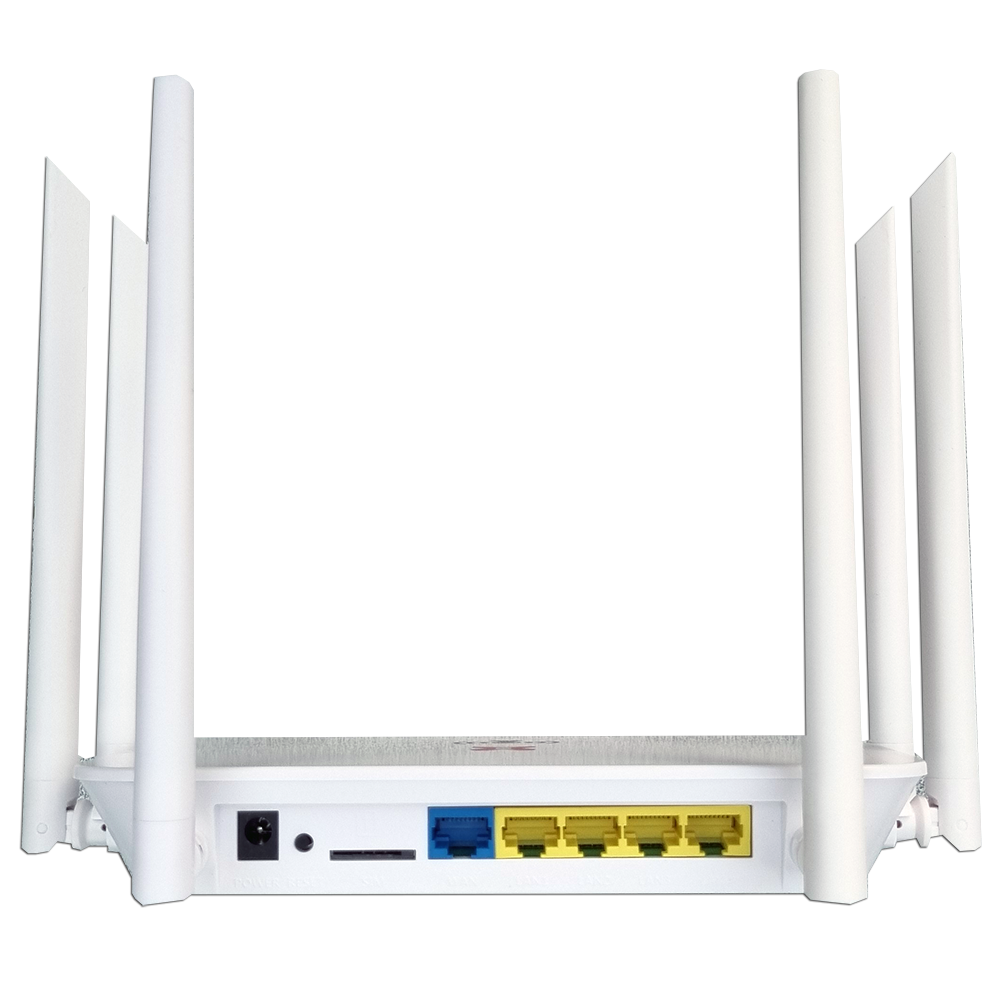

Xentino RL206 üzerinde 1 adet 4G LTE SIM Kart Yuvası bulunan, 1200M Wireless özelliği bulunan giriş seviyesi Genişbant Router cihazıdır. 1adet 100M WAN Ethernet, 4adet 100M LAN Ethernet portu, 1adet Gömülü SIM Slotu, 4adet 5dBi sökülemez WiFi ve iki adet LTE Anteni, DC:12V ve 0.5A Adaptörü mevcuttur.
Xentino RL206 üzerinde 1 adet 4G LTE SIM Kart Yuvası bulunan, 1200M Wireless özelliği bulunan giriş seviyesi Genişbant Router cihazıdır. 1adet 100M WAN Ethernet, 4adet 100M LAN Ethernet portu, 1adet Gömülü SIM Slotu, 4adet 5dBi sökülemez WiFi ve iki adet LTE Anteni, DC:12V ve 0.5A Adaptörü mevcuttur.
Xentino RL206 4G LTE 1200M Wireless Broadband Router. 1adet 100M WAN, 4adet 100M LAN, 1adet Gömülü SIM Slot, 4x5dBi Anten, 2adet LTE Anten. DC:12V, 0.5A PSU.
OVERVIEW
RL206 is an 11ac standard dual band indoor 4G wireless broadband router. Comply with IEEE 802.11ac/b/g/n MIMO standard, the data rate up to 1200Mbps, more than 60 end users can access into it with SIM card slot, build in LTE module. It supports FDD-LTE/TDD-LTE for worldwide use with 150Mbps (CAT4) downlink speed. Besides that, there are 4*10/100Mbps LAN ports, automatically switch to WAN Ethernet if 4G network existed.
MAIN FEATURES
- Comply with IEEE 802.11b/g/n/ac Standard, 2.4GHz and 5.8GHZ frequency, the data rate is 1200Mbps for faster Wi-Fi speed.
- Build in 3G/4G SIM card slot, support LTE-TDD/LTE-FDD, WCDMA/CDMA and GSM networking. The band is adjustable, can comply with all operator in the world.
- High RF power design, with Omni 2.4G/5.8G/4G antenna, more wireless coverage, better signal strength and more stable performance.
- It supports VPN (L2TP, PPTP, auto VPN), meet with industrial applications such as chain stores, ATM...
- Firmware support cloud remote configure and management, hardware with watchdog function, device can auto-reboot and auto-recovery if have problems, no extra maintenance fee.
TECHNICAL SPECIFICATION
|
XENTINO RL206 |
|
|
Interface Characteristics |
|
|
Fixed Port |
4 x 10/100Mbps LAN ports 1 x 10/100Mbps WAN port 1 x Embedded SIM Slots |
|
Chip Parameter |
|
|
LTE Module Model |
MAILONG LT10 LTE-CAT4 as example (Also support other module) LT10-1 (China, India) B1/B3/B5/B7/B8/B20@FDD LTE B1/B5/B8@WCDMA B2/B3/B5/B8@GSM LT10-2 (Other) B2/B4/B12@FDD LTE; B2/B4/B5@WCDMA; B2/B4/B5/B12/B13/B14/B66/B71@LTE FDD,B2/B4/B5@WCDMA |
|
Band Support |
GSM: B2/3/5/8; WCDMA: B1/2/5/8; LTE FDD: B1/2/3/4/5/7/8/28; LTE TDD: B40 |
|
CPU |
MT7628+MT7613AE |
|
SDRAM |
64MB |
|
FLASH |
8MB |
|
Power |
|
|
DC-DC |
12V/1A |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-30~+55°C, 5%~95% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+70°C, 5%~95% RH Non condensing |
|
Certification & Warranty |
|
|
Warranty |
2 years, lifelong maintenance. |
|
Network Management Features |
|
|
Wi-Fi |
Support Auto Channel, Guest SSID, SSID hide, Wireless MAC filter, white and black list |
|
Net |
PPPoE, Automatic IP, Static IP, L2TP, PPTP, 4G Support automatically switch between WAN/ISP and 4G VPN client: L2TP (Only available for LTE/4G Connection) Support AP+Client |
|
Firewall |
Support NAT, URL Filter, MAC Filter and Network Service Filter Support DoS attack protection SYN flood attack WAN PING,SSH, HTTP Access |
|
Others |
NTP and account setup; Port forwarding, Virtual Server, Watchdog, DMZ,DDNS |
|
Antenna Features |
|||||||||||||||||||||
|
2.4G RF Power |
|
||||||||||||||||||||
|
5.8G RF Power |
|
||||||||||||||||||||
|
2.4G Receive Sensitivity |
|
||||||||||||||||||||
|
5.8G Receive Sensitivity |
|
||||||||||||||||||||
|
2.4G EVM |
802.11b: ≤-10dB; 802.11g: ≤-25 dB; 802.11n: ≤-28 dB |
||||||||||||||||||||
|
5.8G EVM |
802.11a_54M: ≤-25 dB; 802.11n_MCS7: ≤-28 dB; 802.11AC_MCS9:≤-32dB |
||||||||||||||||||||
|
PPM |
±20ppm |
||||||||||||||||||||
|
Channel |
1～13, Support auto channel |
||||||||||||||||||||
|
Standard |
802.11b/g/n |
||||||||||||||||||||
|
Bandwidth |
HT20, HT40, HT80, HT20/HT40/HT80 |
||||||||||||||||||||
|
Security |
Open System, Shared key, WPA-Personal, WPA2-Personal, WPA-Auto-Personal, WPA-Enterprise(Radius), WPA2-Enterprise(Radius), WPA-Auto-Enterprise(Radius), Radius with 802.1x |
||||||||||||||||||||
|
RF Power Adjustable |
Support |
||||||||||||||||||||
|
2.4G Antenna |
Frequency Range: 2.4GHz~2.5 GHz Gain: 5dBi, V.S.W. R≤1.9 Impendence: 50Ω Polarization: Vertical Radiation: Omni |
||||||||||||||||||||
|
5.8G Antenna |
Frequency Range: 5150-5850 MHZ Gain:5dBi, V.S.W. R ≤1.9 Impendence: 50Ω Polarization: Vertical Radiation: Omni |
||||||||||||||||||||
