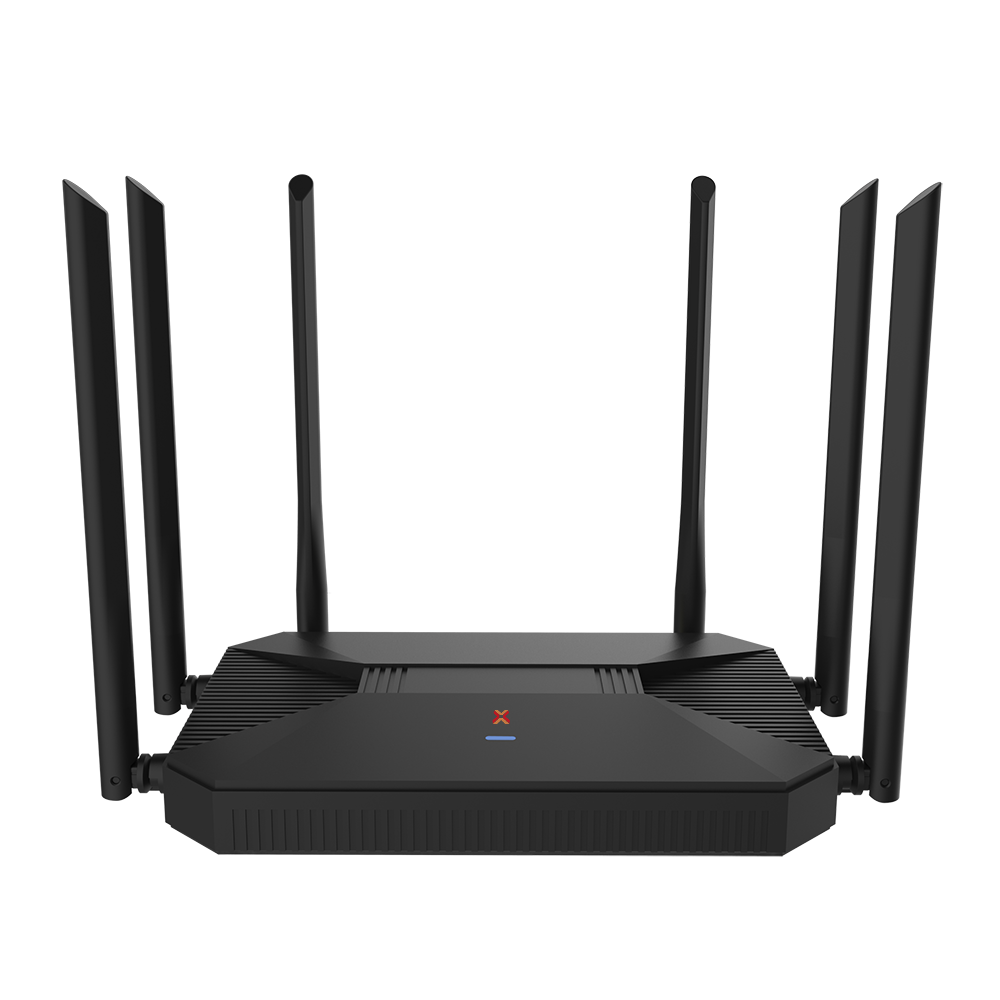

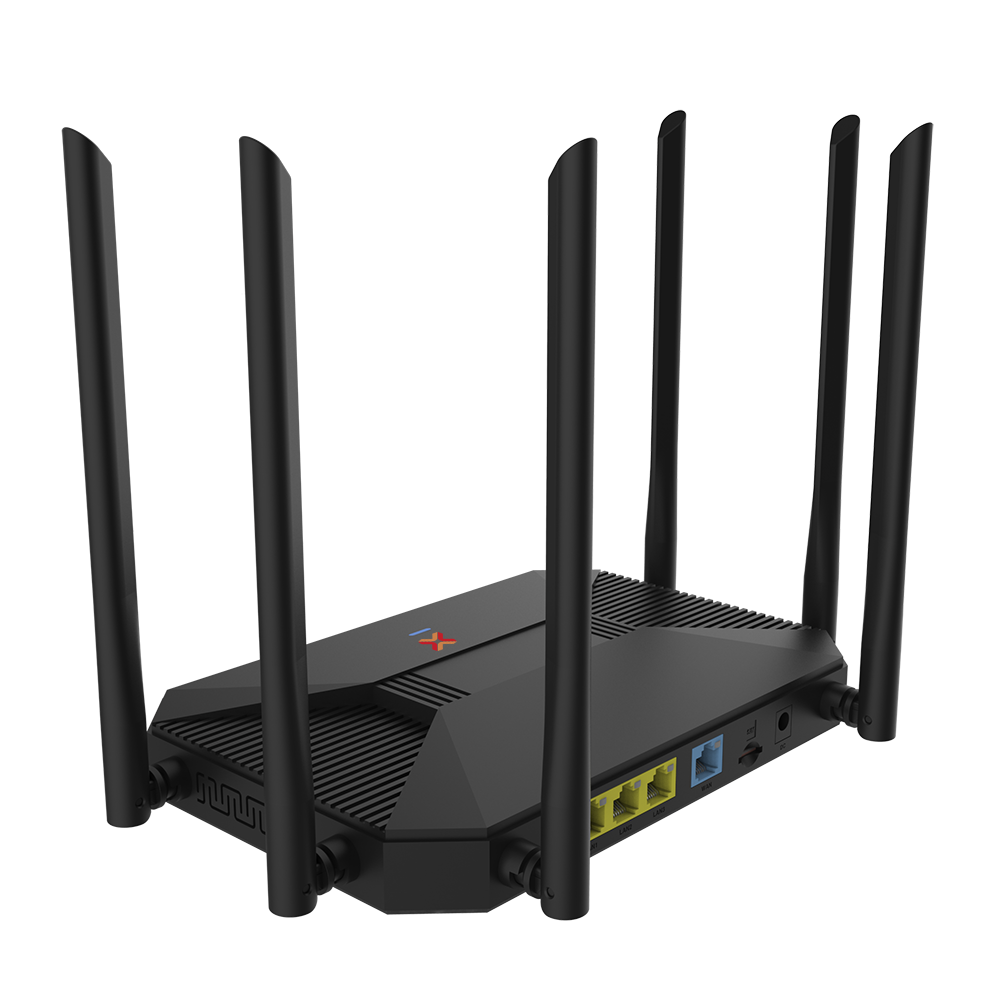

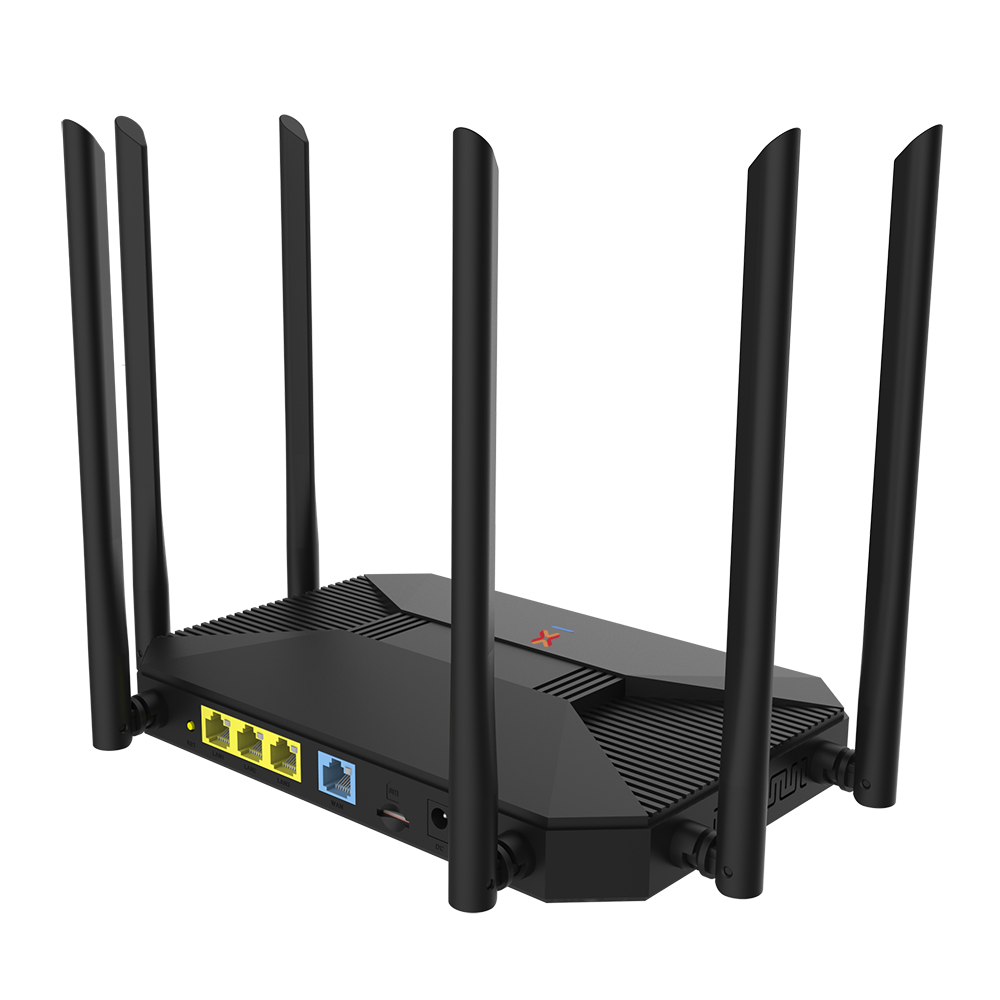

Xentino RL207 4G LTE 1200M Wireless VPN Router
Xentino RL207 4G LTE 1200M Wireless VPN Router. 1adet 100M WAN, 3adet 100M LAN, 1adet Gömülü SIM Slot, 4x5dBi Anten, DC:12V, 0.5A PSU.
OVERVIEW
RL207 is an 11ac standard dual band indoor 4G wireless router support VPN. Comply with IEEE 802.11ac/b/g/n MIMO standard, the data rate up to 1200Mbps, more than 80 end users can access into it with SIM card slot, build in QUECTEL LTE module. It supports FDD-LTE/TDD-LTE for worldwide use with 150Mbps (CAT4) downlink speed. Besides that, there are 3*10/100Mbps WAN/LAN ports, automatically switch to WAN Ethernet if 4G network existed.
MAIN FEATURES
- Comply with IEEE 802.11b/g/n/ac Standard, 2.4GHz and 5.8GHZ frequency, the data rate is 1200Mbps for faster Wi-Fi speed.
- Build in 3G/4G SIM card slot, support LTE-TDD/LTE-FDD, WCDMA/CDMA and GSM networking. The band is adjustable, can comply with all operator in the world.
- High RF power design, with Omni 2.4G/5.8G/4G antenna, more wireless coverage, better signal strength and more stable performance.
- It supports VPN (L2TP, PPTP, auto VPN), meet with industrial applications such as chain stores, ATM...
- Firmware support cloud remote configure and management, hardware with watchdog function, device can auto-reboot and auto-recovery if have problems, no extra maintenance fee.
TECHNICAL SPECIFICATION
|
XENTINO RL207 |
|
|
Interface Characteristics |
|
|
Fixed Port |

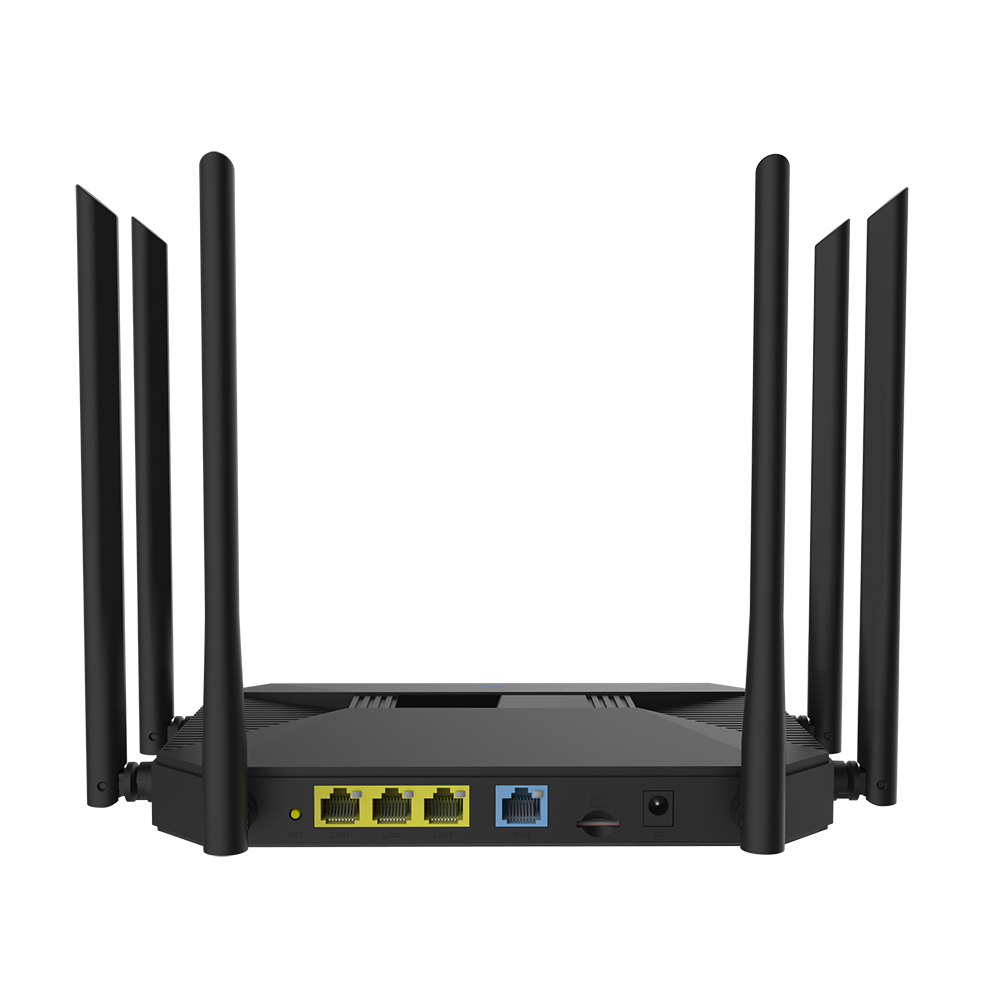

3 x 10/100Mbps LAN ports (can set to WAN port) 1 x 10/100Mbps WAN port 1 x Embedded SIM Slots |
|
Chip Parameter |
|
|
LTE Module Model |
Quectel EC25-AU, LTE-CAT4 as example (Also support other module) Quectel EC20 R2.1 (China, India) B1/B3/B5/B7/B8/B20@FDD LTE B1/B5/B8@WCDMA B2/B3/B5/B8@GSM Quectel EC25 R2.1 (China, India) B2/B4/B12@FDD LTE; B2/B4/B5@WCDMA; B2/B4/B5/B12/B13/B14/B66/B71@LTE FDD,B2/B4/B5@WCDMA |
|
Band Support |
GSM: B2/3/5/8; WCDMA: B1/2/5/8; LTE FDD: B1/2/3/4/5/7/8/28; LTE TDD: B40 |
|
CPU |
MT7628+MT7613AE |
|
SDRAM |
64MB |
|
FLASH |
8MB |
|
Power |
|
|
DC-DC |
12V/1A |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-30~+55°C, 5%~95% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+70°C, 5%~95% RH Non condensing |
|
Certification & Warranty |
|
|
Warranty |
2 years, lifelong maintenance. |
|
Network Management Features |
|
|
Wi-Fi |
Support Auto Channel, Guest SSID, SSID hide, Wireless MAC filter, white and black list |
|
Net |
PPPoE, Automatic IP, Static IP, L2TP, PPTP, 4G Support automatically switch between WAN/ISP and 4G Support VPN server VPN client: PPTP, L2TP and OpenVPN Support AP+Client |
|
Firewall |
Support NAT, URL Filter, MAC Filter and Network Service Filter Support DoS attack protection SYN flood attack WAN PING,SSH, HTTP Access |
|
Others |
NTP and account setup; Port forwarding, Virtual Server, Watchdog, DMZ,DDNS |
|
Antenna Features |
|||||||||||||||||||||
|
2.4G RF Power |
|
||||||||||||||||||||
|
5.8G RF Power |
|
||||||||||||||||||||
|
2.4G Receive Sensitivity |
|
||||||||||||||||||||
|
5.8G Receive Sensitivity |
|
||||||||||||||||||||
|
2.4G EVM |
802.11b: ≤-10dB; 802.11g: ≤-25 dB; 802.11n: ≤-28 dB |
||||||||||||||||||||
|
5.8G EVM |
802.11a_54M: ≤-25 dB; 802.11n_MCS7: ≤-28 dB; 802.11AC_MCS9:≤-32dB |
||||||||||||||||||||
|
PPM |
±20ppm |
||||||||||||||||||||
|
Channel |
1～13, Support auto channel |
||||||||||||||||||||
|
Standard |
802.11b/g/n |
||||||||||||||||||||
|
Bandwidth |
HT20, HT40, HT80, HT20/HT40/HT80 |
||||||||||||||||||||
|
Security |
Open System, Shared key, WPA-Personal, WPA2-Personal, WPA-Auto-Personal, WPA-Enterprise(Radius), WPA2-Enterprise(Radius), WPA-Auto-Enterprise(Radius), Radius with 802.1x |
||||||||||||||||||||
|
RF Power Adjustable |
Support |
||||||||||||||||||||
|
2.4G Antenna |
Frequency Range: 2.4GHz~2.5 GHz Gain: 5dBi, V.S.W. R≤1.9 Impendence: 50Ω Polarization: Vertical Radiation: Omni |
||||||||||||||||||||
|
5.8G Antenna |
Frequency Range: 5150-5850 MHZ Gain:5dBi, V.S.W. R ≤1.9 Impendence: 50Ω Polarization: Vertical Radiation: Omni |
||||||||||||||||||||
