Xentino

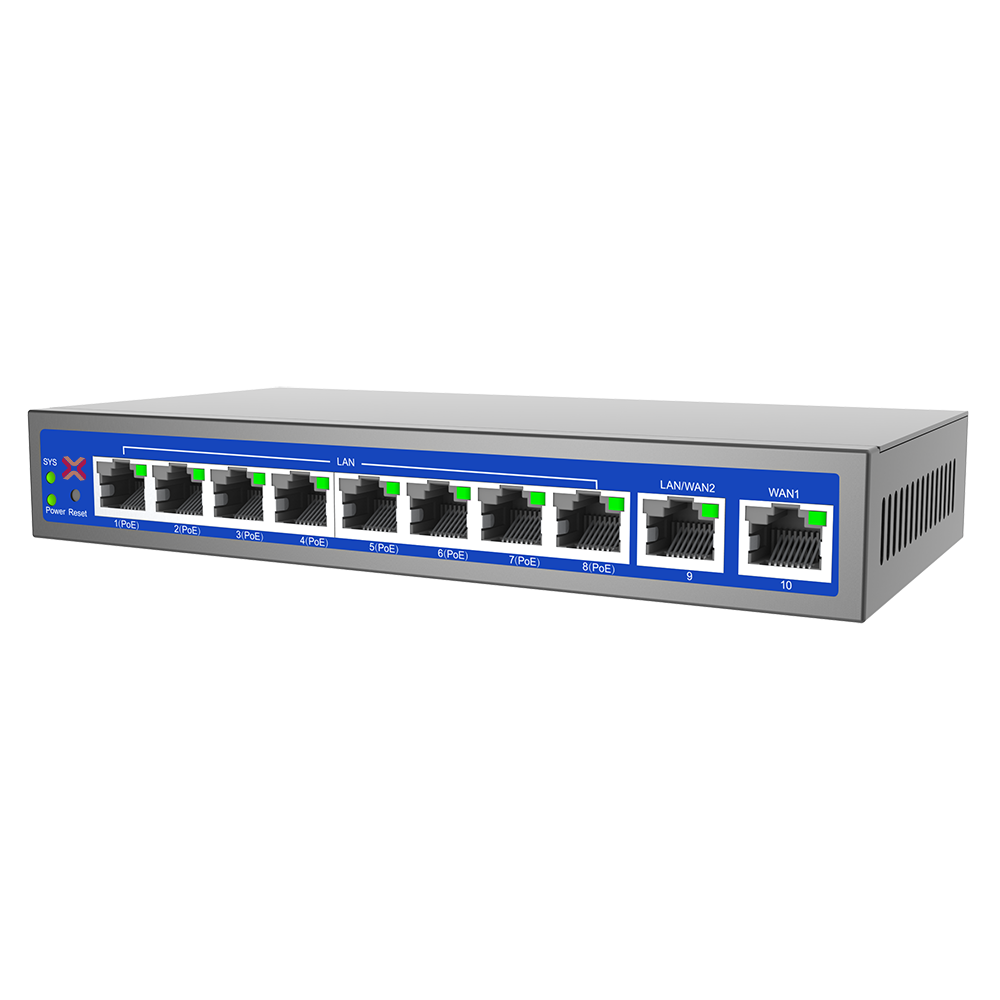

Xentino RL801 model designed for broadband internet connection. It has 1xGiga WAN, 1xGiga LAN/WAN and 8xGiga POE Ports. Designed with MTK7621 chipset, 16MB Flash, 128MB DDR RAM with 96W POE power budget.

Açıklamalar
Özellikler
Belgeler
Alternatif Ürünler
İlişkili Ürünler
Görseller

OVERVIEW

RL801 is an multiple function PoE router. With MTK chipset, it is an 9 ports wired router, support PPPoE, Static IP, DHCP. Comply with IEEE 802.3af/at standard, it is 8 ports gigabit PoE switch, can provide the PoE power up to 30W for each ports. Besides that, it work as can AP controller also, centrally to configure and manage 100+ wireless access points.

MAIN FEATURES

8 * 10/100/1000Mbps PoE ports, IEEE 802.3af/at standard
2 * 10/100/1000Mbps WAN ports (1*WAN and 1*WAN/LAN Switchable)
3 in 1 (Router + Access Point Controller + PoE Switch)
Manages 20 Access Point
Manages 100 Users

TECHNICAL SPECIFICATION

Hardware
Model	RL801
CPU	MT7621AT+RTL8370MB
Flash	16MB
SDRAM	128MB

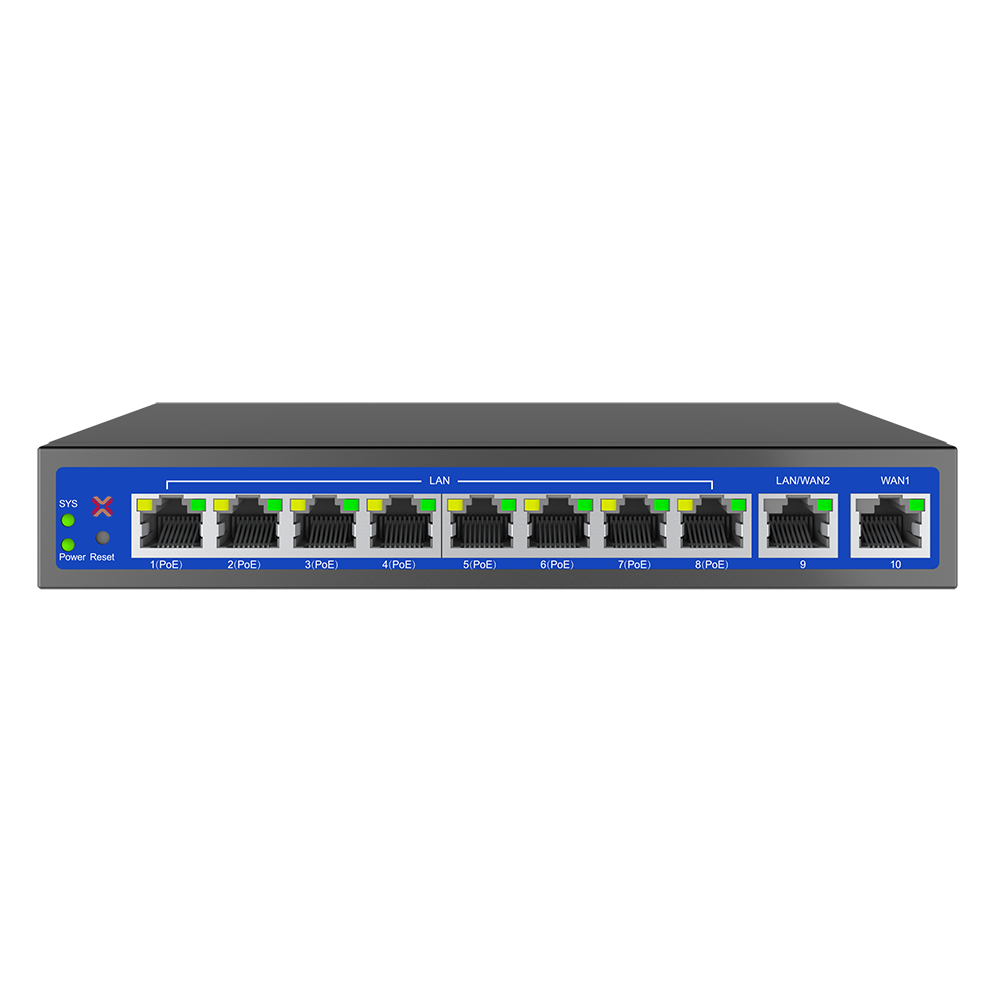

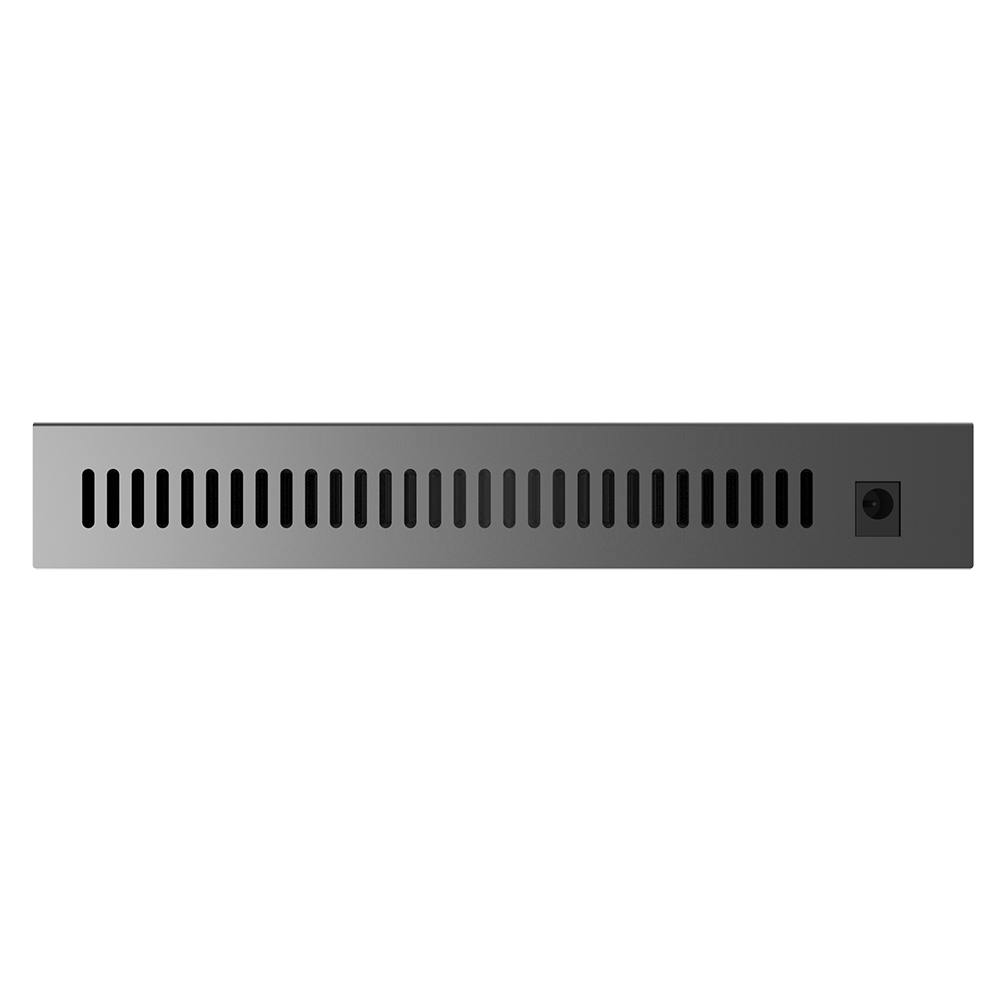

Interface	1 * 10/100/1000Mbps WAN port 1 * 10/100/1000Mbps LAN/WAN port 8 * 10/100/1000Mbps PoE ports, IEEE 802.3af/at standard 1 * DC port, 48V/2.5A 1 * Reset Button, press 10 seconds to revert to default data.
PoE Output	48V, IEEE 802.3at/at Standard, max 30W for each port
PoE Power	96W in total, max 30W for each RJ45 port.
Size	190mm98mm28mm
LED Indicator	PWR(Power), Sys, WAN, LAN*8
Power Consumption	＜10W
ESD	Contact：±6KV，Air：±8KV
Surge	Common Mode: ≥±2KV, Differental mode≥±1KV
Working Environment	Working Temperature: -20℃ ～ +55℃ Storage Temperature: -40℃ ～ +70℃ Humidity：5％～95％ (No condensation)
Accessory	96W Power adapter, User Manual
